LP-16 RJ45 cable connector metal housing IPX8

LP-16 RJ45 cable connector metal housing IPX8

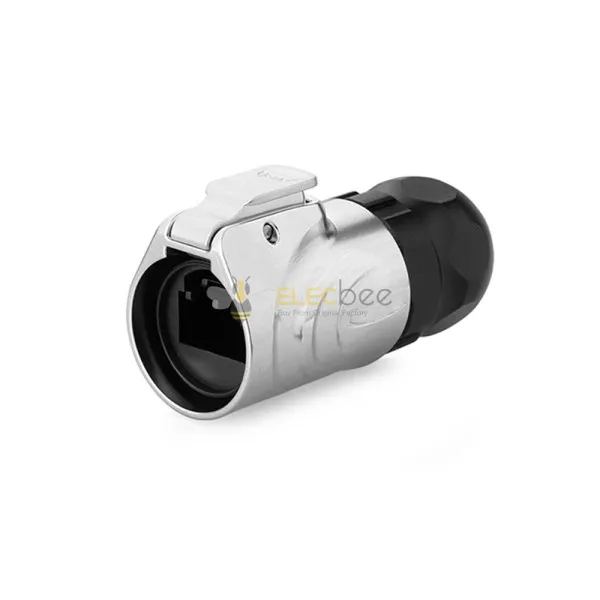

Name: LP-16 RJ45 cable connector metal housing IPX8
Brand: Elecbee
SKU: EB-LP-16-C-RJ45-015-PE-43-001
Price: 10.67 USD
Availability: InStock

$2,89

SKU: EB-LP-16-C-RJ45-015-PE-43-001

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

protection class:IPX8 certified

Typ:LP-16-RJ45 Series - RJ45 Cable Connectors

High Quality with 30 days 100% Money back

From the OEM Original Factory, same quality with much better price

Contact Sales

LP-16 RJ45 cable connector metal housing IPX8

EB-LP-16-C-RJ45-015-PE-43-001

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Description

Product information "LP-16 RJ45 cable connector metal housing IPX8"

Lockable RJ45 cable connector protection with push button locking.
IP67 Cat connector in metal housing in the LP series with size 16.
The plug is suitable for Ø 1 - 8.5 mm cables. The plug has IP protection with a cable Ø of 5 - 9 mm.
The cable connection size is 0.15 mm (AWG 26) to 0.2 mm (AWG 12).
The plug can be assembled using a crimp connection. RJ45 plug insert is not included in the scope of delivery.
The precise RJ45 connector protection for data transmission in industrial environments with a length of 51.6 mm.
The gray metal construction with gold-plated contacts ensures a long service life.
The network connector is waterproof and dustproof in accordance with IP67 protection class.
The metal lock ensures a secure connection and protects against data and power interruptions.
The plug design allows plugging and unplugging with one hand.
Length: 51.6 mm
Width: 22.8 mm
Height: 29 mm

Brand:	ELECBEE
Series:	LP-Serie, LP-16-RJ45
Version (Plug / Chassis):	Cable Version
Connector type:	RJ45
Number of contacts:	8
Gender (M / F):	Male plug
Connector housing color:	Nickel - Black
Cable diameter min. in mm:	Ø 4 mm
Cable diameter max. in mm:	Ø 14 mm
Cable connection size min. in mm:	Ø 0.15 mm
Cable connection size max. in mm:	Ø 0.20 mm
Cable connection size min. in AWG:	AWG 16
Cable connection size max. in AWG:	AWG 26
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	≥ 750
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IP65
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	1000 V
Operating voltage (VAC.RMS):	500 V
max. Rated current (A):	5 A
Insulation resistance:	500 MΩ
Contact resistance:	< 30 mΩ
POS packaging:	10 pieces / cardboard box 17 x 8 x 6 cm, 240 Stück / Kartonbox 35 x 26 x 26 cm
Applications:	video technician, Telematikerin, Maschinenbauerin, Lighting technician, Sound engineer
Certified standards:	UL1977, CE EN60309-1, TÜV
