DH-24 power connector 4-pin female chassis 500 V 25 A IP67

DH-24 power connector 4-pin female chassis 500 V 25 A IP67

Name: DH-24 power connector 4-pin female chassis 500 V 25 A IP67
Brand: Elecbee
SKU: EB-DH-24-J04SX-03-401
Price: 11.21 USD
Availability: InStock

$6.19

SKU: EB-DH-24-J04SX-03-401

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

protection class:Tested to IP67 by ELECBEE

Typ:DH-24 Series Chassis Socket female

High Quality with 30 days 100% Money back

From the OEM Original Factory, same quality with much better price

Contact Sales

DH-24 power connector 4-pin female chassis 500 V 25 A IP67

EB-DH-24-J04SX-03-401

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Description

Product information "DH-24 power connector 4-pin female chassis 500 V 25 A IP67"

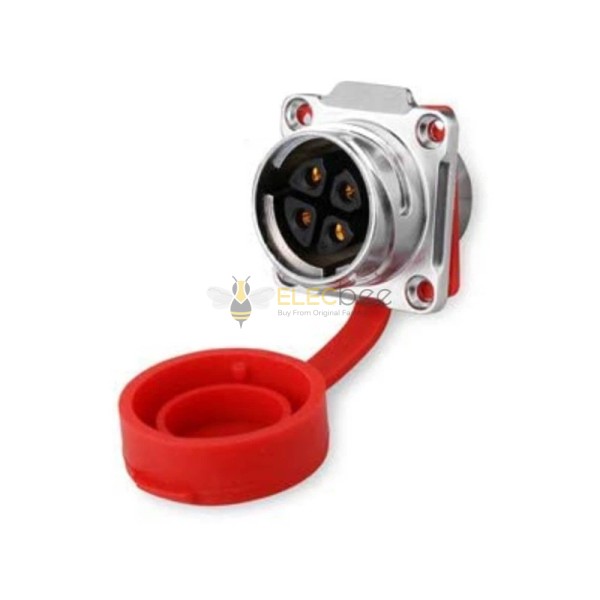

4 pole chassis plug female max. 25 A / 500 V. Four contact sockets: 4 x Ø 3.00 mm.
IP67 chassis socket as panel mounting version in corrosion-resistant metal housing in the DH series with size 24.
The cable connection size is 2.5 mm (AWG 14) to 4 mm (AWG 12)
The plug can be assembled via crimped connection and soldered connection with the cable.
The secure panel socket for voltage transmission in industrial environments with a width of 33 mm.
The DH series uses the unique spring design, a standard slot,
made of alloy material, a continuous fixing method in the outer seal and a new appearance,
that meets the requirements of a high quality application.
The connector is waterproof and dustproof according to IP67 protection class.
The fast bayonet connection ensures a secure connection and protects against data and power interruption.
The maximum rated power for the mains coupling is max. 25 amps.
The max. Operation Voltage from the power plug is rated at 500 volts.
The power plugs have a color coding system for a quick identification of the line.
The power connectors with the red aluminum housing are designed for power transmission.
The connectors are temperature and pressure resistant.
Depth: 36.7 mm
Width: 33 mm
Height: 35.7 mm

Brand:	ELECBEE
Series:	DH-Serie, DH-24-Power
Version (Plug / Chassis):	Chassis version
Connector type:	Power
Connection mode:	Quick bayonet lock
Number of contacts:	4
Contact diameter in mm:	4 x Ø 3.00 mm
Gender (M / F):	Female connector
Connector housing color:	Nickel
Cable diameter min. in mm:	Ø 4 mm
Cable diameter max. in mm:	Ø 12 mm
Cable connection size min. in mm:	Ø 2.5 mm
Cable connection size max. in mm:	Ø 4 mm
Cable connection size min. in AWG:	AWG 14
Cable connection size max. in AWG:	AWG 12
Wiring mode:	Solder contact
Installation diameter in mm:	Ø 24.00 mm
Installation fixing height x width in mm:	26.00 mm x 26.00 mm
Number of mounting holes:	4
Mounting hole diameter mm:	3.2 mm
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	≥ 500
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IP67
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	2500 V
Operating voltage (VAC.RMS):	500 V
max. Rated current (A):	25 A
Insulation resistance:	500 MΩ
Contact resistance:	< 1 mΩ
POS packaging:	No
Markets:	Event Production, Industrial equipment, Industrial robot, Data box, Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Multimedia installation, Digital signage, System integrator, Power supply, power storage
Certified standards:	UL1977, CE EN60309-1, TÜV
