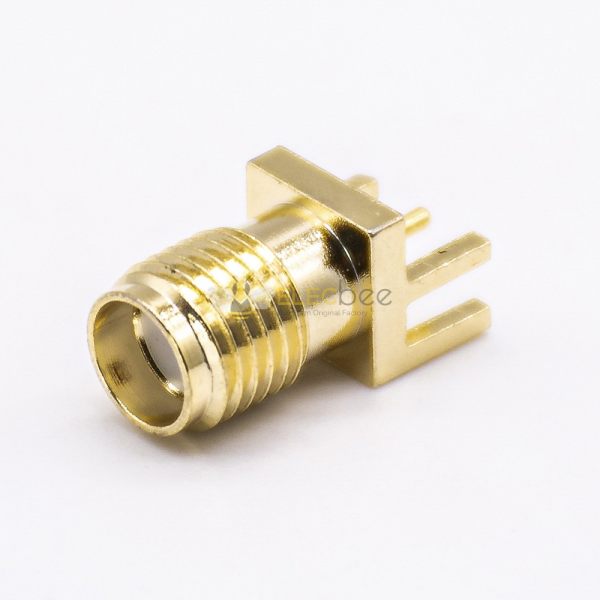

RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount
Features:
- SMA Connector,Female,Straight,PCB Connector,Plate Edge Mount,Copper,Gold Plating;
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Panel Mount
-
Terminal type
Solder Type
-
Installation characteristics
Edge Mount
-
Shell Feature
Straight
-
Gender
Jack
-
Polarity
Standard
-
Impedance
50ohm
-
Coating
Gold Plating
-
Body Material
Cooper
- Description
Appliance:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Technology: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications:Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
- Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range: -55°C ~ +155°C
- Vibration: MIL-STD-202 Method204
- Corrosion resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Au:1u" |
| Center Contact Pin | Phosphor | Au:3u" |
| Insulator | TEFLON | White |
