Name: LP_20 power connector M20 3-pin female reversed chassis round 500 V 20 A IPX8
Brand: Elecbee
SKU: EB-LP-20-C03SX-03-102
Price: 6.59 USD
Availability: InStock

$7,00

SKU: EB-LP-20-C03SX-03-102

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

protection class:IPX8 certified

Typ:LP-20 series Chassis Socket male reversed

High Quality with 30 days 100% Money back

From the OEM Original Factory, same quality with much better price

Contact Sales

LP_20 power connector M20 3-pin female reversed chassis round 500 V 20 A IPX8

EB-LP-20-C03SX-03-102

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Description

Product information "LP_20 power connector M20 3-pin female reversed chassis round 500 V 20 A IPX8"

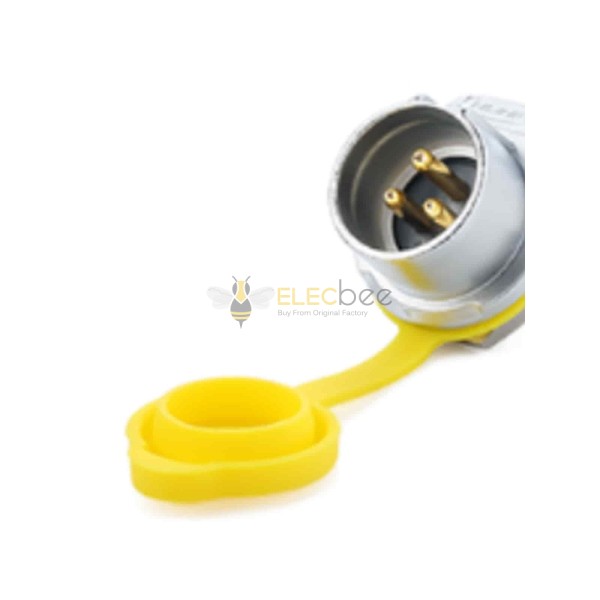

3 pin chassis connector male max. 20 A / 500 V. Three contact sockets: 3 x Ø 2.70 mm.
IP67 chassis connector (reversed) as panel mounting version in a metal housing in the LP series with size 20.
The cable connection size is 2.5 mm (AWG 14) to 5 mm (AWG 12)
The connector can be assembled with the cable via crimp connection and solder connection.
The safe built-in connector for voltage transmission in an industrial environment with a width of 30.25 mm.
The construction with gold-plated contacts ensures a long service life.
The connector is waterproof and dustproof in accordance with IP67 protection class.
The metal lock ensures a secure connection and protects against data and power interruptions.
The maximum nominal power for the power plug is max. 20 amps.
The max. Operation Voltage from the mains plug is designed for 500 volts.
The connector has a locking system. The quick connector design enables one-hand insertion and removal.
Depth: 28 mm
Width: 30.25 mm
Height: 31.25 mm

Brand:	ELECBEE
Series:	LP-Serie, LP-20
Version (Plug / Chassis):	Chassis Version Reverse
Connector type:	Power
Connection mode:	Push-button latch
Number of contacts:	3
Gender (M / F):	Male plug
Connector housing color:	Nickel
Cable diameter min. in mm:	Ø 1 mm
Cable diameter max. in mm:	Ø 8.5 mm
Cable connection size min. in mm:	Ø 2.5 mm
Cable connection size max. in mm:	Ø 4 mm
Cable connection size min. in AWG:	AWG 14
Cable connection size max. in AWG:	AWG 12
Wiring mode:	Solder contact
Installation diameter in mm:	Ø 20.00 mm, Ø 22.50 mm
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	≥ 500
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IPX8 certified, IP65, IP67
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	2500 V
Operating voltage (VAC.RMS):	500 V
max. Rated current (A):	20 A
Insulation resistance:	500 MΩ
Contact resistance:	< 1 mΩ
POS packaging:	No
Markets:	Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Lighting, LED exterior display, System integrator, Power supply, power storage, Outdoor lighting
Certified standards:	UL1977, CE EN60309-1, TÜV
