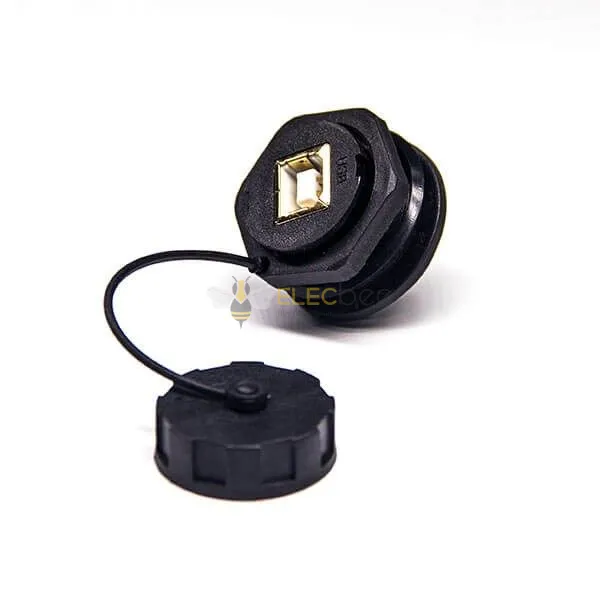

Usb Type B Waterproof Connector Female Standard Panel Mount 20pcs

Usb Type B Waterproof Connector Female Standard Panel Mount 20pcs

Name: Usb Type B Waterproof Connector Female Standard Panel Mount 20pcs
Brand: Elecbee
SKU: 20XEB-500-1036
Price: 215.82 USD
Availability: InStock

$215,82

SKU: 20XEB-500-1036

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Type B,Male/female,IP67,panel mount,straight,4,bulkhead,solder cup
Transfer Super Speed 480Mbps；
Support hot plugging；
Easy and Quick usage；
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

Usb Type B Waterproof Connector Female Standard Panel Mount 20pcs

20XEB-500-1036

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Panel Mount
Terminal type

Solder Cup
Installation characteristics

Bulkhead
Gender

Male and Female (one Pair)
direction

Straight
Number of Positions

4
Port number

Single
waterproof level

IP67
Standard

USB 2.0

Description

Applications:

Servers
External Storage Systems
Supercomputers
Computers, laptops, servers
Printers, external drive units, monitors
Digital cameras, TV

Electrical Characteristics

voltage Rating: 30V AC (rms)
Current Rating: 1.0A MAX
Contact Resistange: 30 milliohms max
Insulation Resistange: 1000 megohms min
Dielectric Withstanding Voltage: 500 V DC/1min

Mechanical Characteristics

Mating force: 3.57 kgf max
UNmating force: 1.0 kgf min

Environmental Characteristics

Operating Temperature：-40°C~ + 85°C

Material:

Part	Material	Finish
Housing	High Temperature Polymer	------
Shell	Copper Alloy or Stainless Steel	------
Contact	Copper Alloy	------
