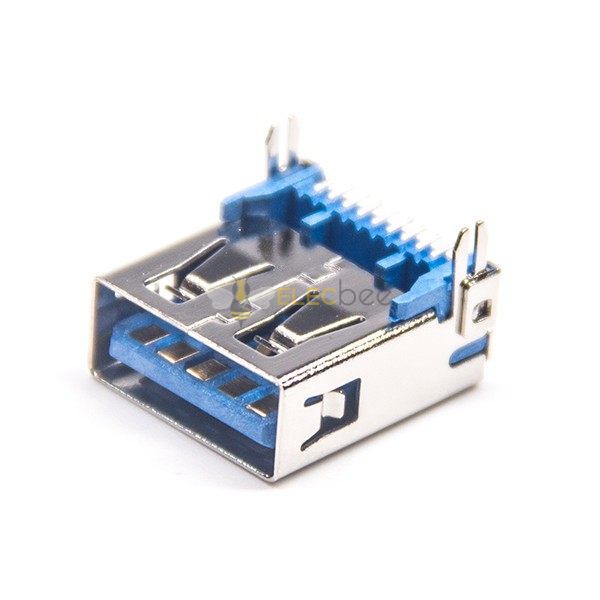

USB 3.0 A Connector 90 Degree Hole Through with 9 Pins for PCB

USB 3.0 A Connector 90 Degree Hole Through with 9 Pins for PCB

Name: USB 3.0 A Connector 90 Degree Hole Through with 9 Pins for PCB
Brand: Elecbee
SKU: EB-500-2028
Price: 0.39 USD
Availability: InStock

$49,99

SKU: EB-500-2028

Copy to clipboard

106 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$0.37

10-19 PCS

$0.35

20-99 PCS

$0.31

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

USB connector,Type A Connector ,USB 3.0,9p,female,90 degree,through hole,PCB
Capable of transferring data up to 5Gb/s;
Full metal shielding;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

USB 3.0 A Connector 90 Degree Hole Through with 9 Pins for PCB

EB-500-2028

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Solder Type
Gender

Female
Installation characteristics

Surface Mount
direction

Right Angle
Number of Positions

9pin
Port number

Single
waterproof level

Not Waterproof
Standard

USB 3.0
Connector Type

Type A

Description

Applications:

Desktop Computer and Motherboard
Notebook
Memory Card Reader
Set top box
Consumer Solid State Drives
LCD TV Panel
Music Synthesizer

Electrical Characteristics

Contact Resistance:30Ω Maximum
Contact Current Rating:1.50A
Dielectric Withstanding Voltage:100V R.M.S
Insulation Resistance 1000 Megohms Min
Operating Temperoture:-45°C ~ +80°C

Mechanical Characteristics

Mating Force:3.57kg Max
Unmating Force:1.02kg Min

Environmental Characteristics

Operating Temperature：-45°C~ + 85°C

Material:

Part	Material	Finish
Housing	High Temperature Polymer	UL94V-0
Shell	Stainless Steel	------
Contact	Copper Alloy	------
