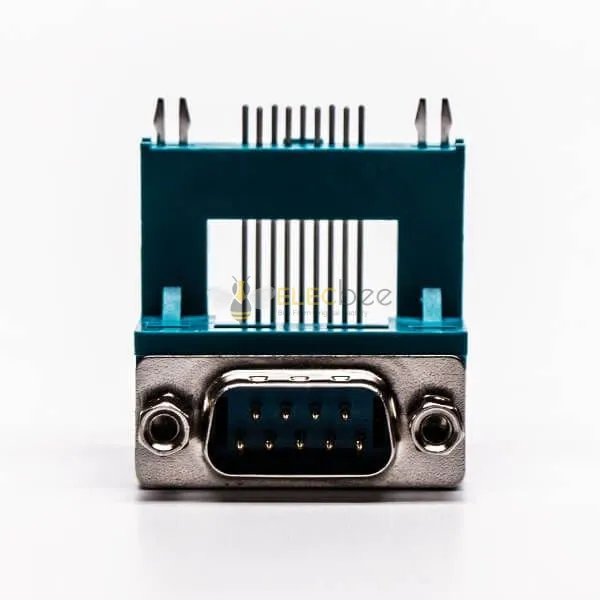

Top D Sub 9 Pin Solder Connector Male Grenn R/A Elevated Type for PCB Mount 20pcs

Top D Sub 9 Pin Solder Connector Male Grenn R/A Elevated Type for PCB Mount 20pcs

Name: Top D Sub 9 Pin Solder Connector Male Grenn R/A Elevated Type for PCB Mount 20pcs
Brand: Elecbee
SKU: 20XEB-600-0015
Price: 46.44 USD
Availability: InStock
Rating: 96 / 20 (20 reviews)

$46.44

SKU: 20XEB-600-0015

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

Top D Sub 9 Pin Solder Connector Male Grenn R/A Elevated Type for PCB Mount 20pcs

20XEB-600-0015

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Right Angle
Connector Type

Plug
Continuous plating

stamped pin
filter

No
Number of Positions

9 pin
Number of Rows

2
Port number

Single
Installation characteristics

Front Open Screwlock(4-40)
waterproof level

Not Waterproof
Continuous plating

Gold
Terminal type

Through Hole

Description

Electrical Characteristics

Voltage Rating :250V AC/ rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.

Mechanical Characteristics

Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
