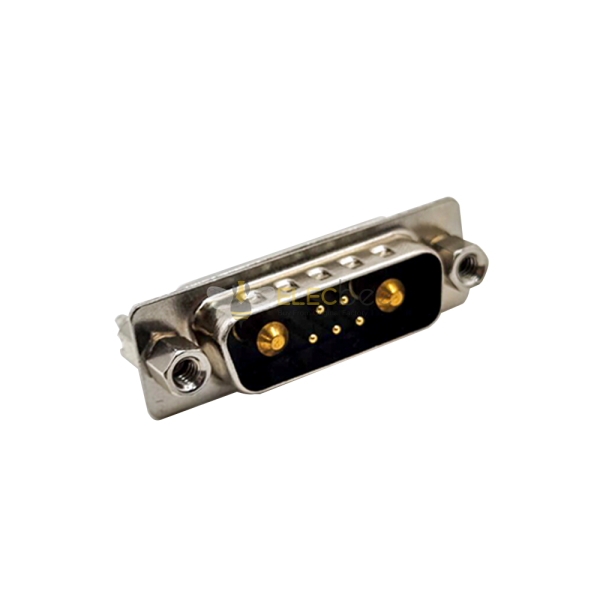

7w2 Combo D sub Connector Male Staking Type Through Hole 20pcs

7w2 Combo D sub Connector Male Staking Type Through Hole 20pcs

Name: 7w2 Combo D sub Connector Male Staking Type Through Hole 20pcs
Brand: Elecbee
SKU: 20XEB-604-0035
Price: 60.84 USD
Availability: InStock
Rating: 94 / 20 (20 reviews)

$60.84

SKU: 20XEB-604-0035

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

Current

- +

Contact Sales

7w2 Combo D sub Connector Male Staking Type Through Hole 20pcs

20XEB-604-0035

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Through Hole
Installation characteristics

Rear Open Screwlock(4-40)
direction

Straight
Connector Type

Plug
Number of Positions

7W2
Continuous plating

machined pin
filter

No
Number of Rows

2
Port number

Single
waterproof level

Not Waterproof
Continuous plating

Gold

Description

Electrical Characteristics

Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
Frequency range: 0 -1 GHz
VSWR: 1.4 (+0.04/GHz)
Characteristic Impedance:50 Ohms
Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
Contact Resistance ≤5 milliohms

Mechanical Characteristics

Mechanical operations ：up to 500

Environmental Characteristics

Operating Temperature：67°F (-55°C) to 311°F (+155°C)
with peaks up to 356°F (180°C)

Material:

Part	Material	Finish
Body	Steel with tin	-------
Center Contact Pin	Female：bronze Male：brass	Gold
Insulator	High temperature black thermoplastic	------
