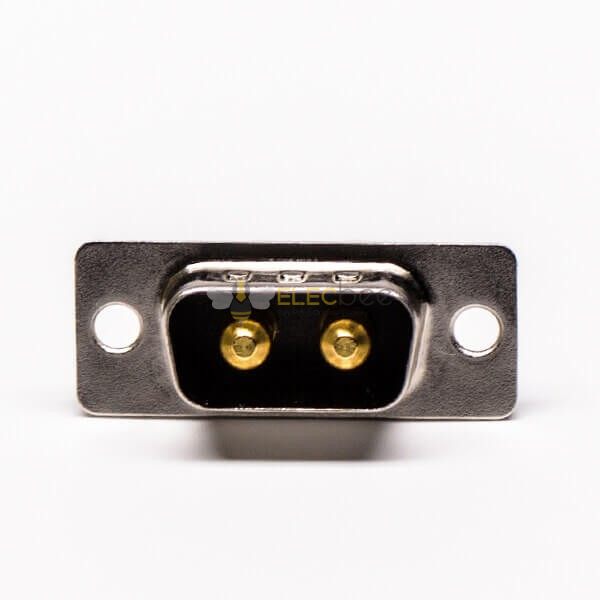

D SUB connector 2W2 Male Power Straight Solder Type For Cable 20pcs
Features:
- Combo D-sub,Straight/180°,Male/Plug,Power D-sub,2w2,Cable Connector,Solder Type;
- Space saving,Cost-effective;
- Large variety of mounting options,RoHS Compliant;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable
-
direction
Straight
-
Terminal type
Solder Cup
-
Connector Type
Plug
-
Continuous plating
machined pin
-
filter
No
-
Port number
Single
-
Installation characteristics
Shell (Unthreaded)
-
waterproof level
Not Waterproof
-
Continuous plating
Gold
-
Number of Rows
1
-
Number of Positions
2W2
- Description
Applications:
- medical electronics
- wireless outdoor telecom systems
- industrial automation
- oil exploration
- printers and displays
- diagnostic systems
Electrical Characteristics
- Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
- Frequency range: 0 -1 GHz
- VSWR: 1.4 (+0.04/GHz)
- Characteristic Impedance:50 Ohms
- Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
- Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
- Contact Resistance ≤5 milliohms
Mechanical Characteristics
- Mechanical operations ：up to 500
Environmental Characteristics
- Operating Temperature：67°F (-55°C) to 311°F (+155°C)
with peaks up to 356°F (180°C)
Material:
| Part | Material | Finish |
| Body | Steel with tin | ------- |
| Center Contact Pin | Female：bronze Male：brass |
Gold |
| Insulator | High temperature black thermoplastic | ------ |
- Drawings
