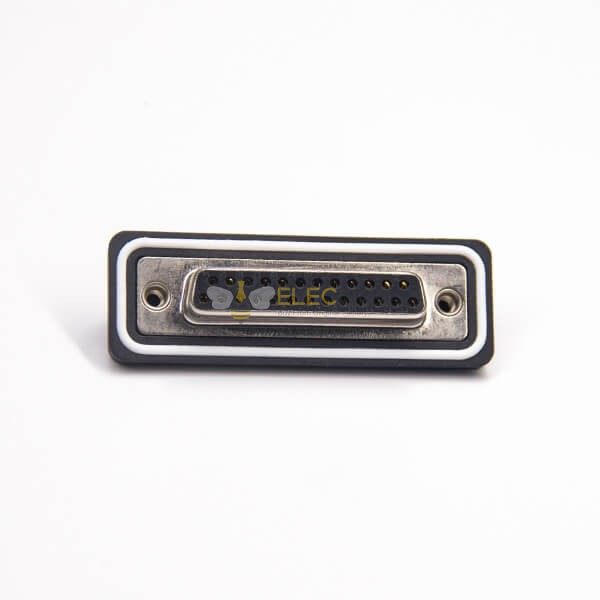

25 Way D sub Standard IP67 Type 2 Rows Through Hole Panel Mount 20pcs

25 Way D sub Standard IP67 Type 2 Rows Through Hole Panel Mount 20pcs

Name: 25 Way D sub Standard IP67 Type 2 Rows Through Hole Panel Mount 20pcs
Brand: Elecbee
SKU: 20XEB-603-0088
Price: 347.22 USD
Availability: InStock
Rating: 97 / 20 (20 reviews)

$347.22

SKU: 20XEB-603-0088

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

25 Way D sub Standard IP67 Type 2 Rows Through Hole Panel Mount 20pcs

20XEB-603-0088

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Right Angle
Continuous plating

machined pin
filter

No
Number of Positions

25 pin
Connector Type

Socket
Number of Rows

2
Port number

Single
Installation characteristics

Shell (M3.0)
waterproof level

IP67
Continuous plating

Gold
Terminal type

Through Hole

Description

Electrical Characteristics

Contact resistance:10 mOhm
Current rating signal:7,5 A
Dielectric with standing voltage signal:1000 V
Working voltage signal:125 V
Test voltage:1000V

Mechanical Characteristics

Extraction force:30N
Insertion force:30N

Environmental Characteristics

Operating Temperature：-25°C~ +125°C

Material:

Part	Material	Finish
Body	steel	Tin
Center Contact Pin	Copper alloy	hard acid gold over nickel
Insulator	Polyester GF, UL 94V-0	------
