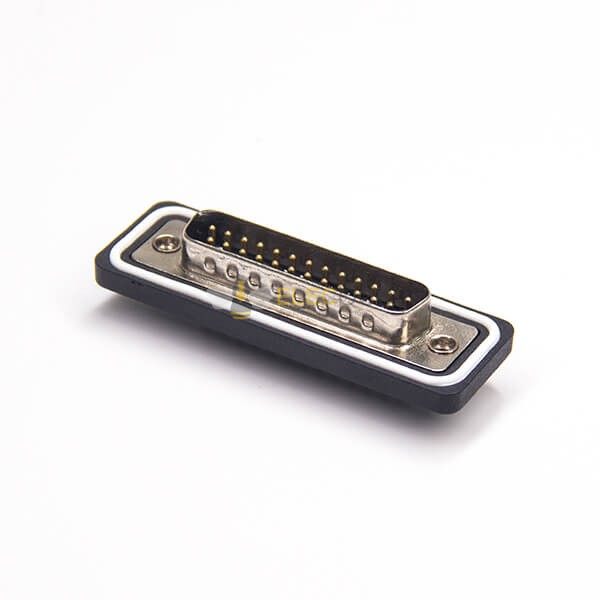

D sub 25 Pin Cable Standard IP67 Type 2 Rows Solder Type For Cable 20pcs
Features:
- Waterproof D-sub,Plug,25 Pin,2 Rows,Single Port,Straight Type,Machined Pin,Gold plated,Solder Cup,Cable,IP67,Without Filtered.
- Interfacial seal to ensure function even when immersed;
- Better against mechanical impacts during installation;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- industrial machinery
- medical equipment
- test and measurement equipment
communications
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable
-
direction
Straight
-
Terminal type
Solder Cup
-
Connector Type
Plug
-
Continuous plating
machined pin
-
filter
No
-
Number of Positions
25 pin
-
Number of Rows
2
-
Port number
Single
-
Installation characteristics
Shell (M3.0)
-
waterproof level
IP67
-
Continuous plating
Gold
- Description
Electrical Characteristics
- Contact resistance:10 mOhm
- Current rating signal:7,5 A
- Dielectric with standing voltage signal:1000 V
- Working voltage signal:125 V
- Test voltage:1000V
Mechanical Characteristics
- Extraction force:30N
- Insertion force:30N
Environmental Characteristics
- Operating Temperature：-25°C~ +125°C
Material:
| Part | Material | Finish |
| Body | steel | Tin |
| Center Contact Pin | Copper alloy | hard acid gold over nickel |
| Insulator | Polyester GF, UL 94V-0 | ------ |
