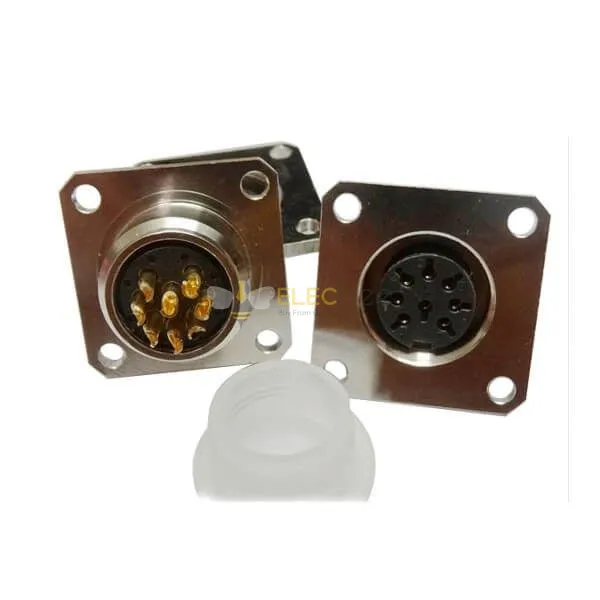

10pcs M Flange Connector 8Pin Female Aviation Socket Connector
Features:
- M16,Panel Receptacles,4 hole Flange,8 Pin,Female,Straight, Solder type
- Extremely strong resistant to acid, alkali, chemical cleaning agent / reagent properties
- Resistant to welding spark, continually twist
- Resistant to oil, coolant, lubricant and emulsion
- Straight jack and straight plug configurations available
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Terminal type
Solder Type
-
Gender
Female
-
Installation characteristics
4 Hole Flange
-
direction
Straight
-
Number of Positions
8
-
Installation method
Panel Mount / Cable
- Description
Main Application of M16 Connectors:
- Petroleum
- Chemical industry
- Iron and Steel
- Electricity
- Automotive Industry
Electrical Characteristics
- Rated current: 7A: 2/3/4PIN; 6A:5PIN; 5A: 6/7/8/12/14/16/19/24PIN
- Rated voltage: 200V: 2/3/4/5/6PIN; 60V: 7/8/12/14/16/19/24PIN
- Contacts resistance: ≤7MΩ: 2/3/4/5/6/7/8/PIN; ≤10MΩ: 12/14/16/19PIN; ≤12MΩ: 24PIN
- Insulation resistance: ≥1500MΩ: 2/3/4/5/6PIN; ≥1000MΩ: 7/8/12/14/16/19/24PIN
- Solder Cup Mouth Aperture: 1.0mm: 2/3/4/5/6/7/8PIN; 0.8mm: 12/14/16/19PIN; 0.6mm: 24PIN.
- Solder Inter Diameter: 1.5mm: 2/3/4/5/6/7/8PIN; 1.0mm: 12/14/16/19PIN; 0.5mm: 24PIN
Mechanical Characteristics
- Coupling: thread locking
- Termination: Solder
- Mating cycle: 500
Environmental Characteristics
- Temperature Range：-25°C to +85°C
- IP rating: IP67
- Certificates
