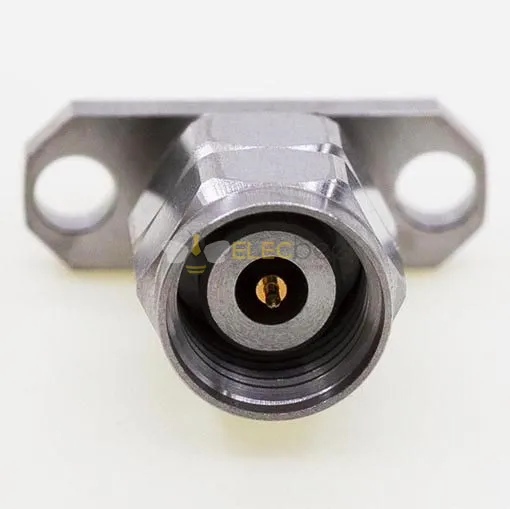

2.4mm Male Airline Connector, 15.8x5.7mm / 0.625x0.223inch Flange 0.86mm / .034″ Pin

2.4mm Male Airline Connector, 15.8x5.7mm / 0.625x0.223inch Flange 0.86mm / .034″ Pin

$30.00
型号： EB-DRF-0026
复制到剪贴板
80 销量
0 评论
有现货 商品库存
Bulk Purchase, Auto Savings:
$28.50
10-19 PCS
$25.65
20-99 PCS
$20.52
100+ PCS
Deliver to United States
固定运费 $10.00
- +
see more

Contact Sales

2.4mm Male Airline Connector, 15.8x5.7mm / 0.625x0.223inch Flange 0.86mm / .034″ Pin
EB-DRF-0026
姓名*
你的邮箱*
主题*
数量
信息
提交
轻松支付
American Express Apple Pay Diners Club Discover Mastercard Visa
可信交付
Trusted Delivery Image
手机购买
  • 商品详情

Part Number:EB-DRF-0026
Description: 2.4mm Male Airline Bulkhead Connector, 15.8 x 5.7mm / 0.625 x 0.223inch Flange Plug with Φ0.86mm / .034″ Pin Terminal.

ThisEB-DRF-0026, 2.4mm 2-hole male airline bulkhead connector with size 15.8 x 5.7mm / 0.625 x 0.223inch flange plug, Φ0.86mm / .034inch pin terminal, frequency range from DC to 50GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~50GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.

Advantages

  • Small Size
  • High Reliable
  • Good Mechanical Performance
  • Wide Frequency Range from DC to 50GHz

Applications

  • General Purpose Test
  • Airline Bulkhead RF Connection
  • Rack and Panel Mount Application
  • Diameter 0.86mm / .034″ Pin Terminal

Key Features

PolarityStandard
Interface2.4mm
Connector TypePlug
Connector GenderMale
Impedance50Ω
Body ShapeStraight
Body Mounting2 Hole Flange
Attachment MethodSolder

Performance Features

Frequency RangeDC~50GHz
VSWR：DC~50GHz: 1.15:1 (Max)
Contact ResistanceCentre Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
Insulation Resistance≥3000mΩ
Withstanding Voltage750V
Durability500 Cycles
Operating Temperature-55℃~+165℃

Material Specifications

HousingType 303 Stainless Steel
Polished & Passivated
Centre ContactBeryllium Copper Plated
Gold (MIL-G-45204)
InsulatorsPEI or PEI & PTFE
