2.92mm Thread-in Connector, 15.8 x 5.7mm / 0.625 x 0.223″ Flange Jack 0.3mm /.012″ Pin

Name: 2.92mm Thread-in Connector, 15.8 x 5.7mm / 0.625 x 0.223″ Flange Jack 0.3mm /.012″ Pin
Brand: Elecbee
SKU: EB-DRF-0094
Price: 17.00 USD
Availability: InStock

$17.00

型号： EB-DRF-0094

复制到剪贴板

84 销量

0 评论

有现货商品库存

Bulk Purchase, Auto Savings:

$16.15

10-19 PCS

$15.30

20-99 PCS

$13.60

100+ PCS

Deliver to United States

固定运费 $10.00

- +

Contact Sales

2.92mm Thread-in Connector, 15.8 x 5.7mm / 0.625 x 0.223″ Flange Jack 0.3mm /.012″ Pin

EB-DRF-0094

姓名*
你的邮箱*
主题*
数量
信息	信息
提交

轻松支付

可信交付

手机购买

商品详情

Part Number: EB-DRF-0094

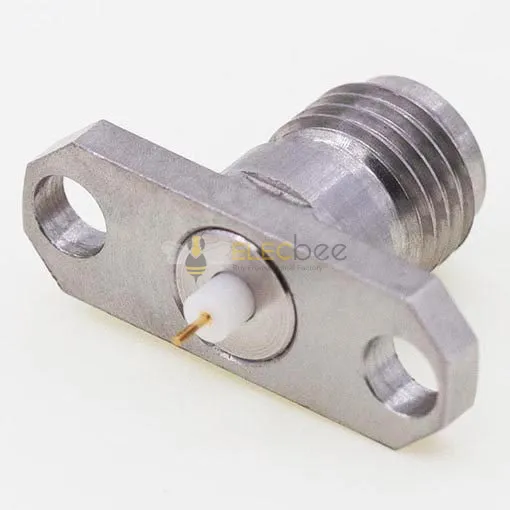

Description: 2.92mm Female Bulkhead Thread-in Connector, 15.8 x 5.7mm / 0.625 x 0.223inch Flange Jack with Cylindrical Contact & Φ0.3mm / .012″ Pin Terminal.

This EB-DRF-0094, 2.92mm 2 hole female bulkhead thread-in connector with size 15.8 x 5.7mm / 0.625 x 0.223inch flange jack, cylindrical contact & Φ0.3mm / .012inch pin terminal, frequency range from DC to 40GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~40GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.

Advantages

Small Size
High Reliable
Good Mechanical Performance
Wide Frequency Range from DC to 40GHz

Applications

General Purpose Test
Bulkhead Thread-in RF Connection
Rack and Panel Mount Application
Diameter 0.3mm / .012″ Pin Terminal

Key Features

Polarity	Standard
Interface	2.92mm
Connector Type	Jack
Connector Gender	Female
Impedance	50Ω
Body Shape	Straight
Body Mounting	2 Hole Flange
Attachment Method	Solder

Performance Features

Frequency Range	DC~40GHz
VSWR：	DC~40GHz: 1.15:1 (Max)
Contact Resistance	Centre Conductor ≤3.0mΩ
Contact Resistance	Outer Conductor ≤2.0mΩ
Insulation Resistance	≥3000mΩ
Withstanding Voltage	750V
Durability	500 Cycles
Operating Temperature	-55℃~+165℃

Material Specifications

Housing	Type 303 Stainless Steel
Housing	Polished & Passivated
Centre Contact	Beryllium Copper Plated
Centre Contact	Gold (MIL-G-45204)
Insulators	PEI or PEI & PTFE
