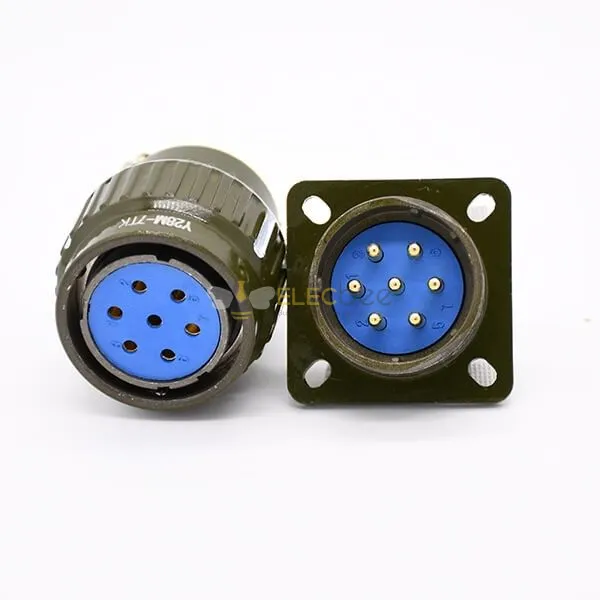

Y28M-7TK 7 Pins AC 500V Female Plug Aviation Circular Connector male-female
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Aluminum Alloy
-
Installation method
Panel Mount / Cable
-
Terminal type
Solder Cup
-
Installation characteristics
4 Hole Flange
-
Gender
Female
-
direction
Straight
-
Coating
Olive Drab Cadmium
-
Connector Type
Plug
-
Number of Positions
7 pin
-
Docking method
Bayonet
- Description
Electrical Characteristics
- Relative humility: 92-98% at 40±2℃
- Insulation resistance: ≥1000MΩ
- Contact Resistance: 1MΩ/3MΩ/5MΩ
- Frequency Range: 10-2300Hz,180m/s2
- Voltage: 250V
- Current: 5A/10A/25A
Mechanical Characteristics
- Mating Type: Bayonet coupling
- Termination : Solder
- Durability(mating): 500 cycles
Environmental Characteristics
- Temprature Range: -40°C ~ +85°C
- Atomosphere: 100KPa-100Pa
Material:
- Shell: Aluminum Alloy
- Contact: Copper,Gold Plated
