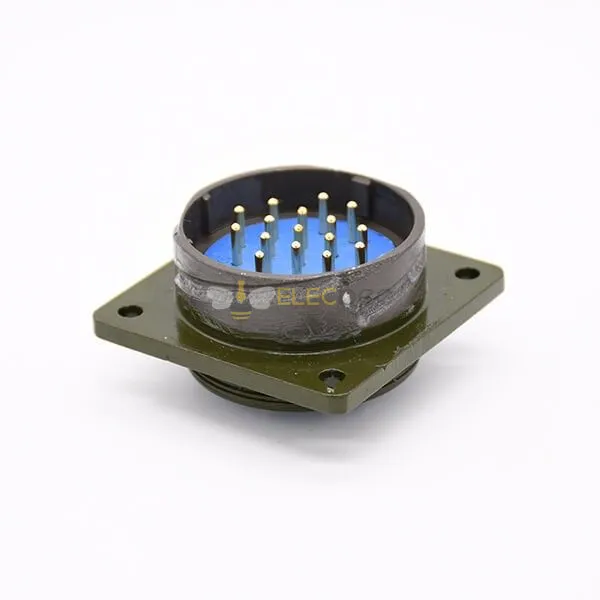

Elecbee Y36M Series Circular Connector 16 pin Male Socket

SKU: EB-702-0005
Favorites
Key Features

Features:

  • Y36M Connector,4 holes Flange Socket,Bayonet Coupling,16 pin,Male Contact,Panel Mount Receptacle
  • Small Volume
  • Light Weight
  • Convenient Application
  • High Durability of Plugging and Unplugging
  • Good Sealing Performance
  • Resistance Against Corrosion
  • High Conductivity and High Dielectric Strength
Show More
Attribute
Value
Connector Type
Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male Pin
Shell Finish
Electrophoretic Olive Green
Number of Positions
16 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67
Rated Current
10A
Connector Series
Y36M
Color
Olive Green
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Aluminum Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PBT
Shell Size
36mm
