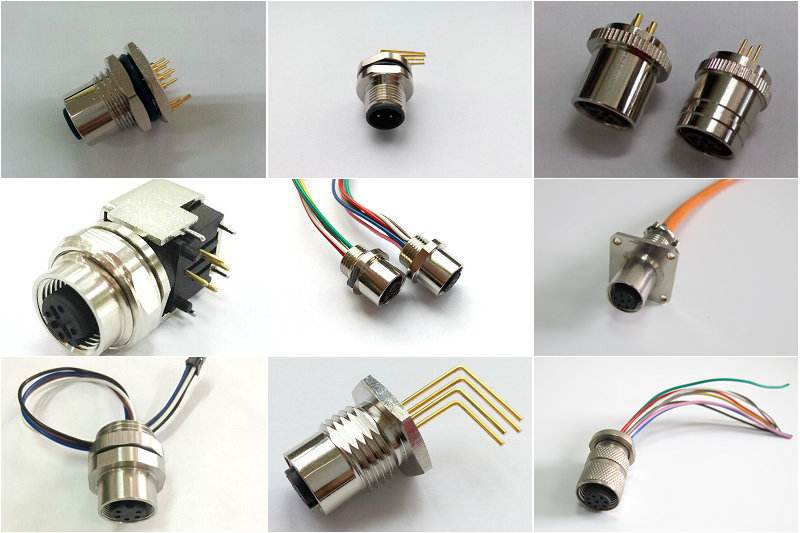

1. What Is an M Series Connector?
M series connectors are circular connectors widely used in industrial automation, sensors, and control systems. Known for their durability, compact design, and reliable performance, they are essential components in modern industrial environments.
Among them, the M12 connector is one of the most popular types, especially in applications requiring waterproof and vibration-resistant connections. These connectors serve as a bridge between devices, ensuring stable signal and power transmission.

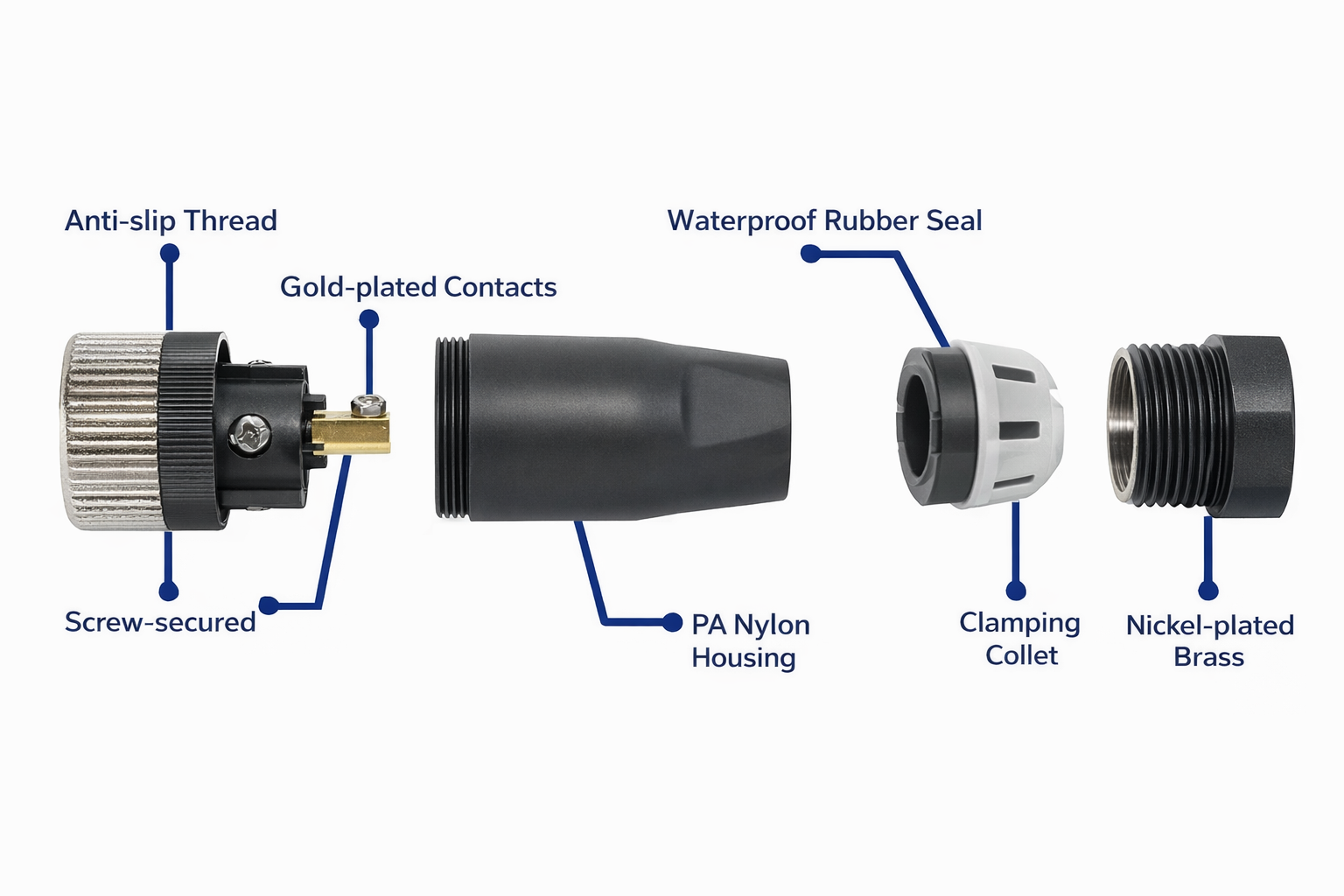

2. Key Components of M Series Connectors
Understanding the internal structure of M series connectors helps you make better purchasing decisions.

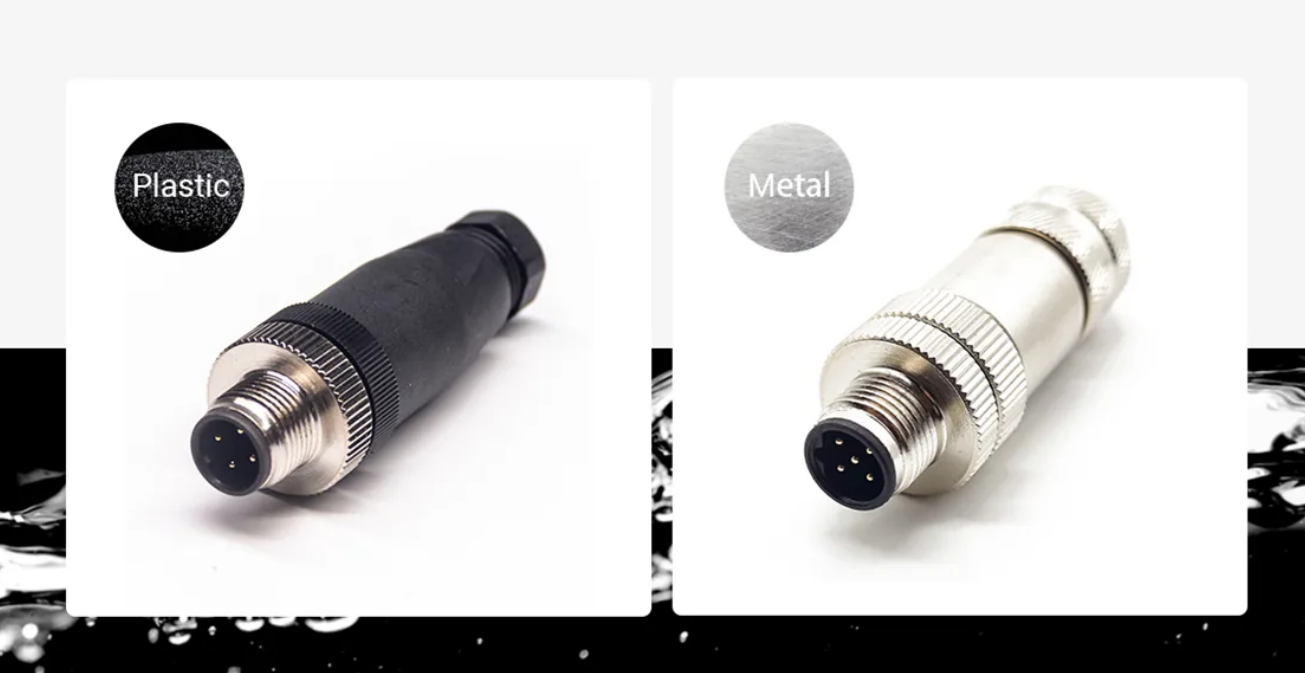

2.1 Connector Housing (Shell)
The housing, also known as the shell, protects the internal components of the connector. It ensures mechanical stability, proper alignment during connection, and secure locking between plug and socket.
High-quality housings are typically made of metal or durable plastic to withstand harsh industrial environments.

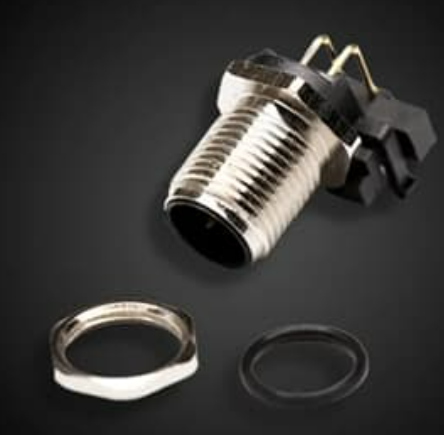

2.2 Mechanical Accessories & Mounting Parts
M series connectors include various mechanical parts such as:
- Positioning keys and guide pins
- Coupling rings and locking mechanisms
- Cable clamps and sealing rings
- Screws, nuts, and mounting components
These parts ensure proper installation, secure connection, and environmental sealing.
2.3 Contact Pins (Male & Female Contacts)
The contact system is the core of any connector.
- Male contacts (pins): Rigid components that transmit signals or power
- Female contacts (sockets): Elastic components that ensure tight electrical contact
Reliable contact design reduces signal loss and ensures stable performance, especially in high-frequency or industrial applications.
2.4 Insulators and Inserts
Insulators (also called inserts) hold the contacts in place and maintain proper spacing between them. They provide:
- Electrical insulation
- Mechanical support
- Resistance to voltage and environmental stress
Materials used must offer high dielectric strength and durability.
3. Why M Series Connectors Matter in Industrial Applications
M series connectors are critical in environments where reliability and durability are essential. They are designed to handle:
- Vibration and mechanical stress
- Moisture, dust, and harsh conditions
- Frequent connection and disconnection
Because of these advantages, they are widely used in industrial automation, robotics, and sensor systems.
4. How to Choose the Right M Series Connector
Choosing the right M series connector requires careful consideration of several factors.
4.1 Select the Right Connector Size (M5, M8, M12, etc.)
Different sizes serve different purposes:
- M5 / M8: Compact applications, limited space
- M12: Standard for industrial sensors and automation
- Larger sizes: High power or specialized applications
The M12 connector is often the best choice for most industrial scenarios due to its balance of size and performance.
4.2 Check Electrical Ratings (Voltage & Current)
Always ensure the connector’s rated voltage and current match your system requirements.
Using mismatched connectors can lead to:
- Overheating
- Signal instability
- Equipment damage

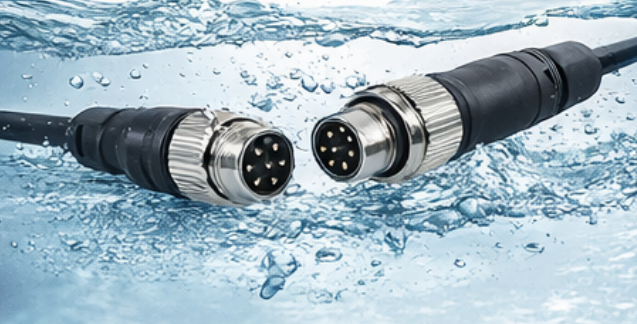

4.3 Consider Environmental Protection (IP Rating)
For industrial use, waterproof and dustproof performance is essential.
Look for connectors with high IP ratings such as:
- IP67 / IP68: Protection against water and dust
- Suitable for outdoor or harsh environments
4.4 Ensure Compatibility & Matching
Proper pairing between plug and socket is critical.
Make sure:
- Pin configuration matches (e.g., M12 4-pin, 8-pin)
- Voltage and current ratings align
- Mechanical interface is compatible
Incorrect pairing can cause connection failure or safety risks.
4.5 Choose Reliable Brands and Certified Products
Quality matters when it comes to connectors.
When selecting products:
- Choose reputable manufacturers
- Check for certifications (such as CE or equivalent standards)
- Ensure clear labeling (voltage, current, manufacturer details)
Reliable products ensure long-term performance and safety.
5. Common Applications of M Series Connectors
M series connectors are used across a wide range of industries:
- Industrial automation: PLC systems, control panels
- Sensors and actuators: Signal transmission
- Robotics: Reliable connections in moving systems
- Transportation: Railway and automotive systems
- Medical equipment: Stable and safe connections
Their versatility makes them a standard choice in modern engineering systems.
6. Conclusion: Choosing the Best M Series Connector for Your Needs
M series connectors, especially M12 connectors, are essential for ensuring stable and reliable connections in industrial environments.
By understanding their structure, features, and selection criteria, you can:
- Improve system reliability
- Reduce maintenance costs
- Ensure long-term performance
When choosing an M series connector, always focus on quality, compatibility, and application requirements. A well-selected connector can significantly enhance the efficiency and safety of your system.
