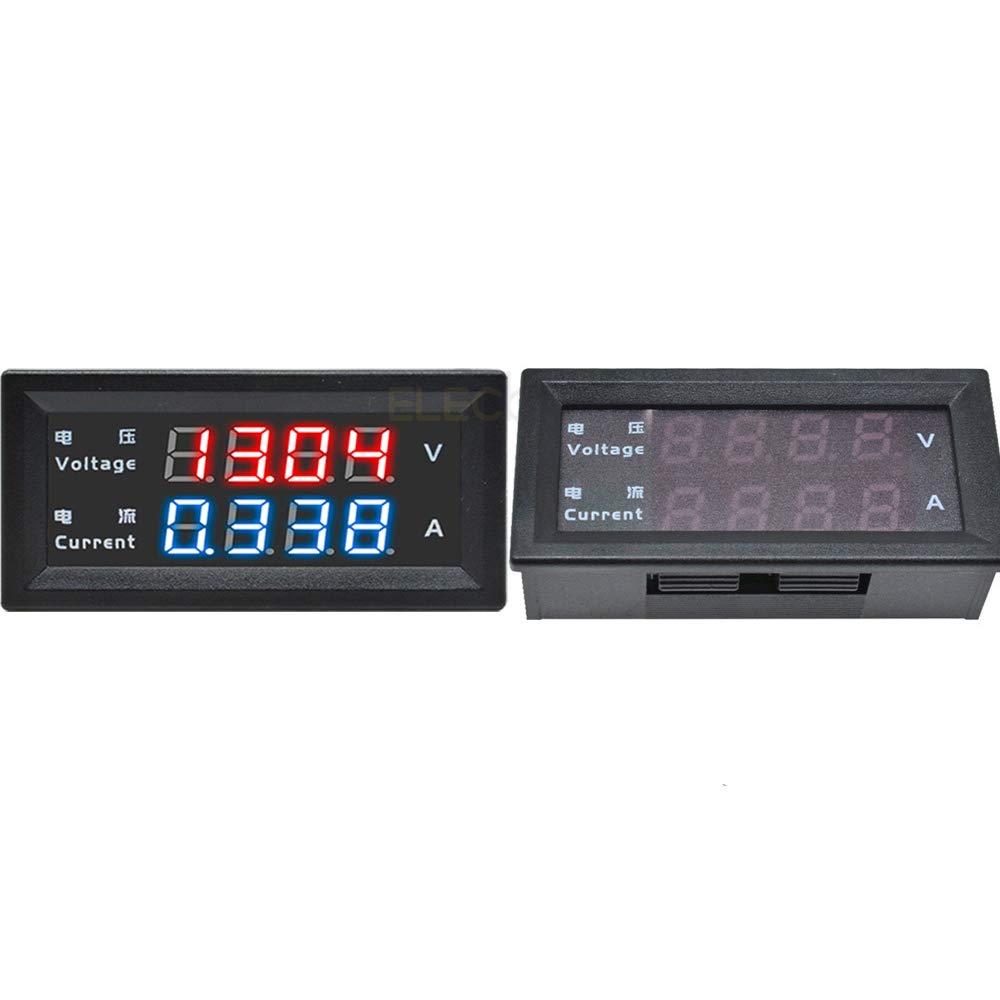

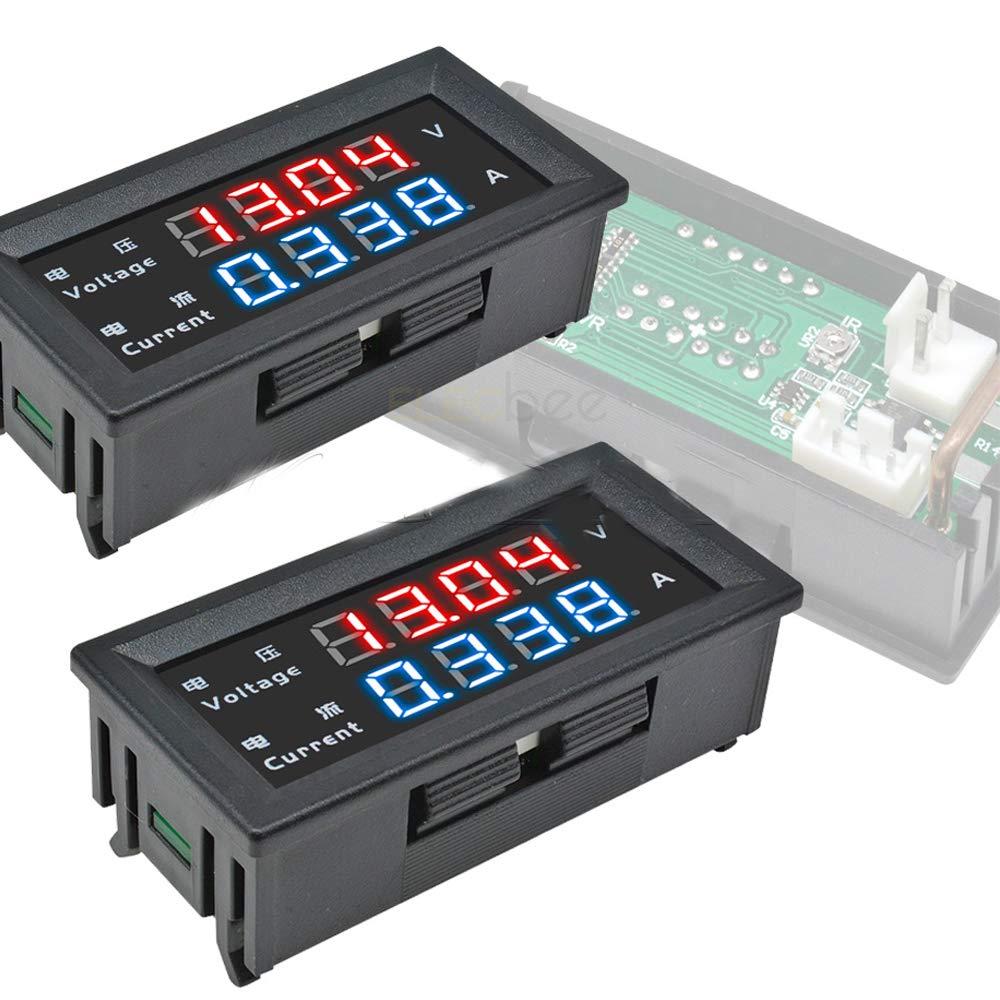

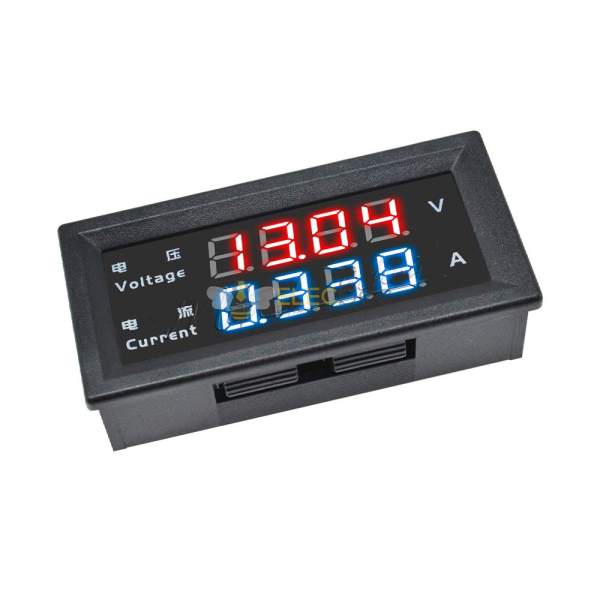

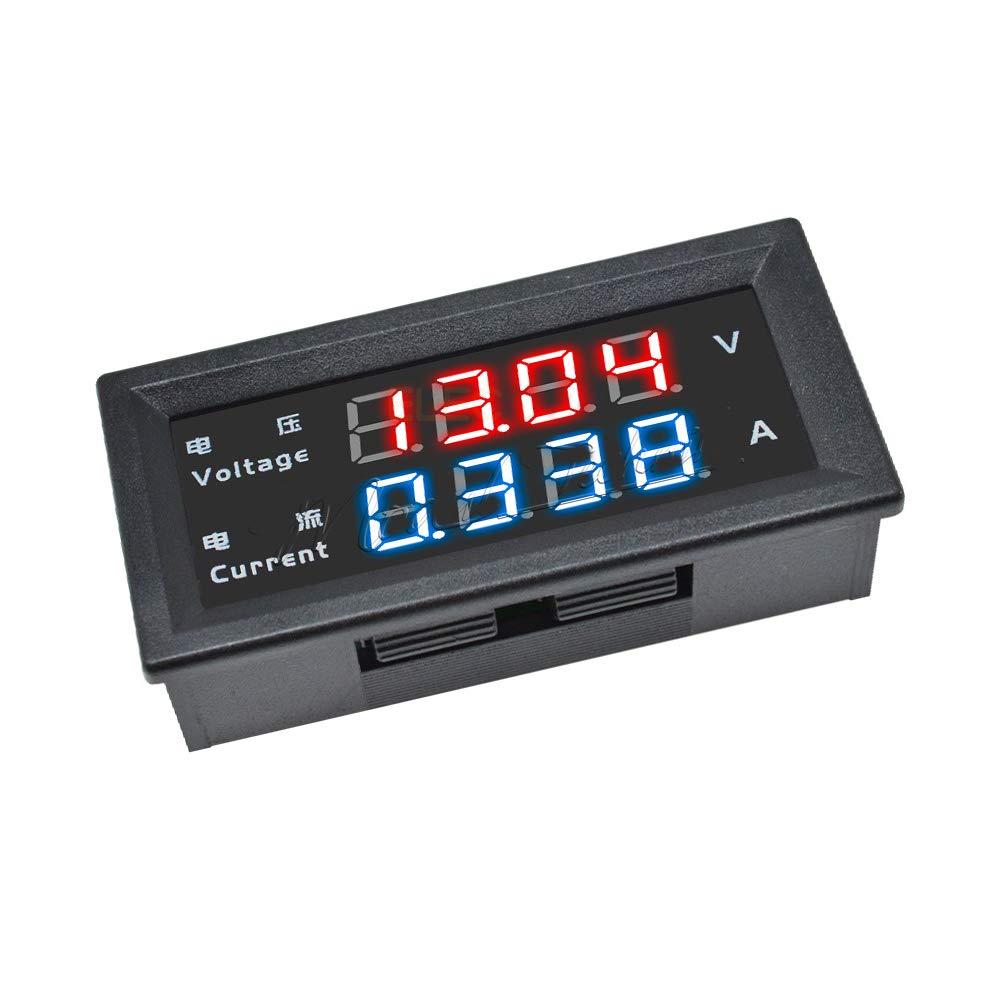

Elecbee Dual LED Digital DC Voltmeter Ammeter, 0-100V 10A Voltage Current Monitor, Red/Blue High-Precision Panel Meter for Battery & Power Supply
SKU: EB0047187
Favorites
Key Features
- Dual-Parameter Monitoring: Displays both Voltage (DC 0-100V) and Current (0-10A) simultaneously on bright, independent Red and Blue LED screens.

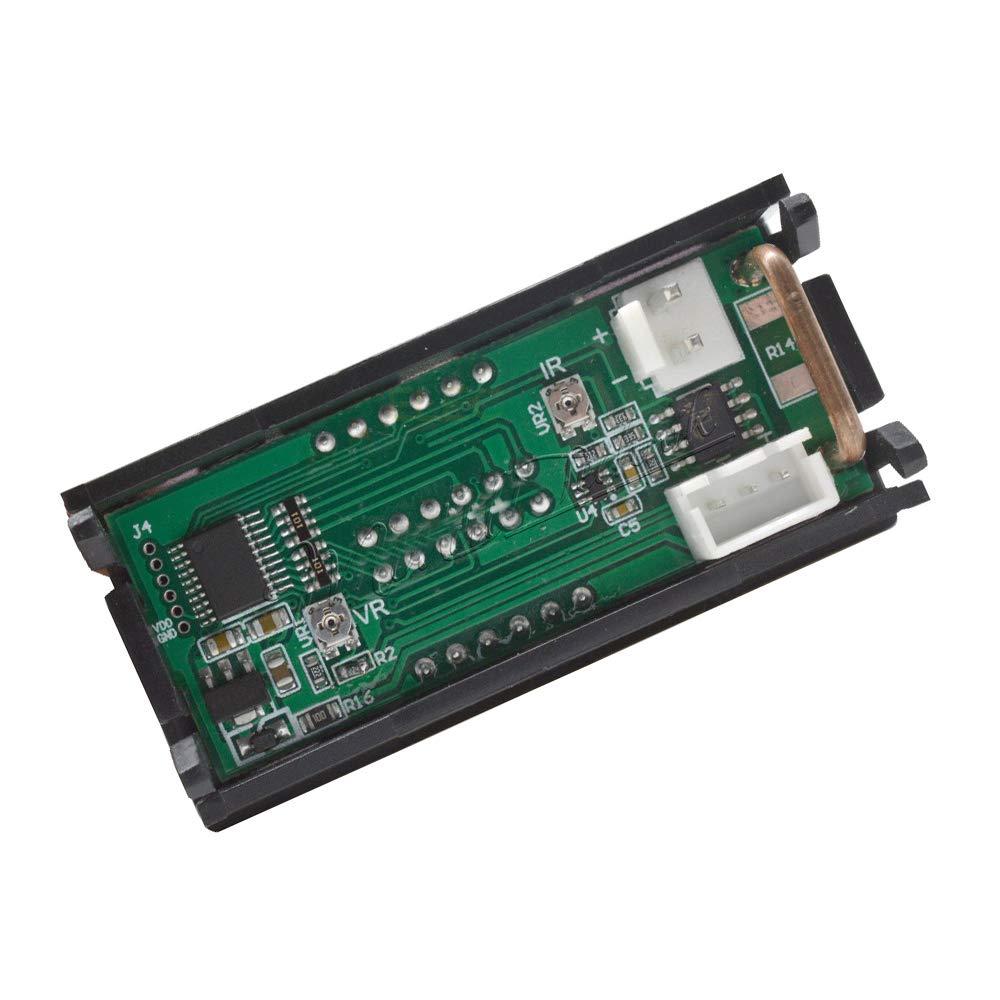

- Integrated Current Shunt: Features a built-in internal shunt for the 10A current measurement, eliminating the need for bulky external components.
- High-Precision Calibration: Includes onboard fine-tuning potentiometers for both voltage and current, allowing you to calibrate the meter for professional accuracy.
- Wide Supply Range: Operates on a flexible working voltage of DC 4.5V to 30V, making it compatible with various automotive, marine, and industrial power systems.
- Easy Panel Mounting: Designed with a snap-in housing for standard rectangular cutouts; ideal for custom lab bench power supplies and battery charging stations.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Cellular
Description
Get real-time insights into your power systems with the Elecbee Dual LED Digital Voltmeter & Ammeter. This compact panel meter is the industry standard for DIY power supply projects, solar energy monitoring, and automotive electrical testing. With its high-contrast Red and Blue display, you can monitor both potential and load at a single glance, even in low-light environments.

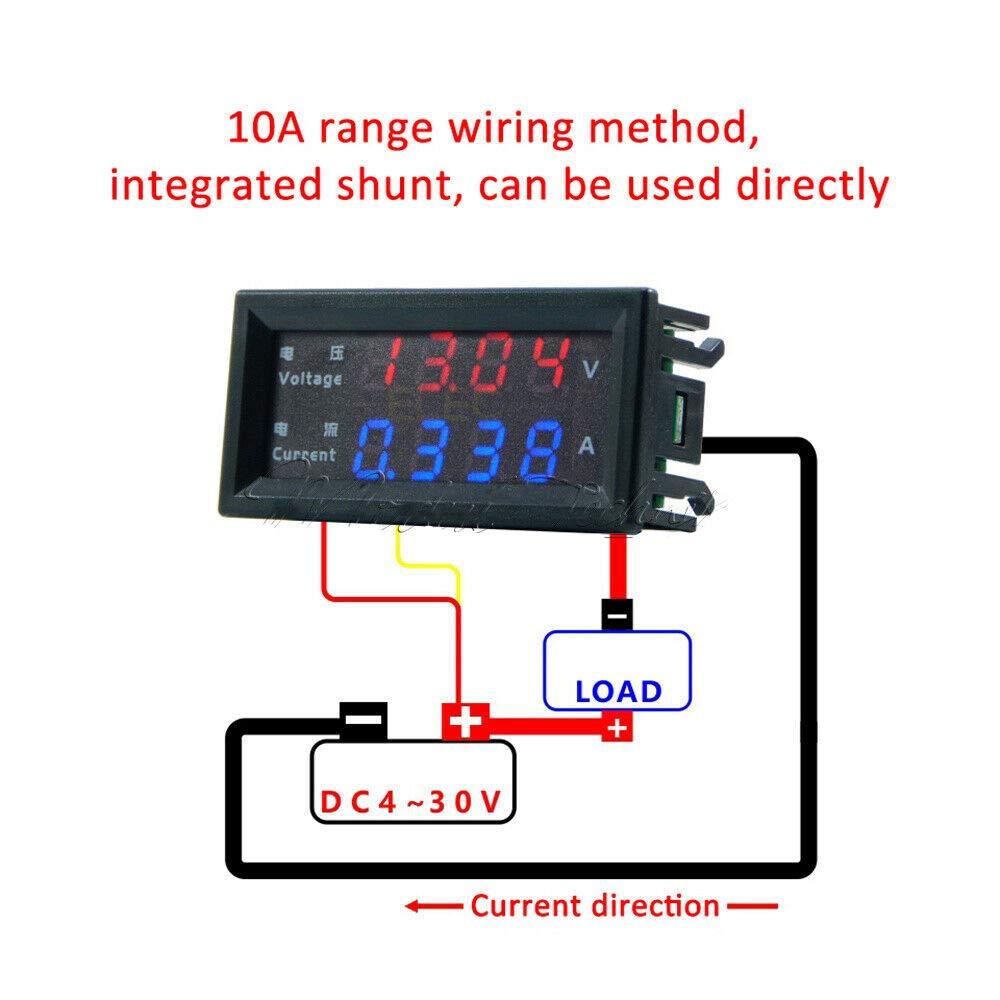

Safety and accuracy are paramount. This meter is designed with a common ground architecture and includes an internal 10A shunt, making wiring straightforward for battery chargers and motor controllers. Technical highlights include:
- Measurement Range: DC 0V to 100V (Voltage) / 0A to 10A (Current).
- Display: Dual 0.28" Digital LED (Red for Volts, Blue for Amps).
- Working Voltage: DC 4.5V - 30V (Note: Do not exceed 30V on the power leads).
- Refresh Rate: Approximately 300ms for real-time data tracking.
- Calibration: Dual-potentiometer design for manual accuracy adjustment.
Whether you are building a portable solar generator or upgrading your workshop's bench power supply, the Elecbee DC Meter provides the reliability and precision required for modern electronics. Its snap-in design ensures a professional, flush-mount finish on any control panel.
