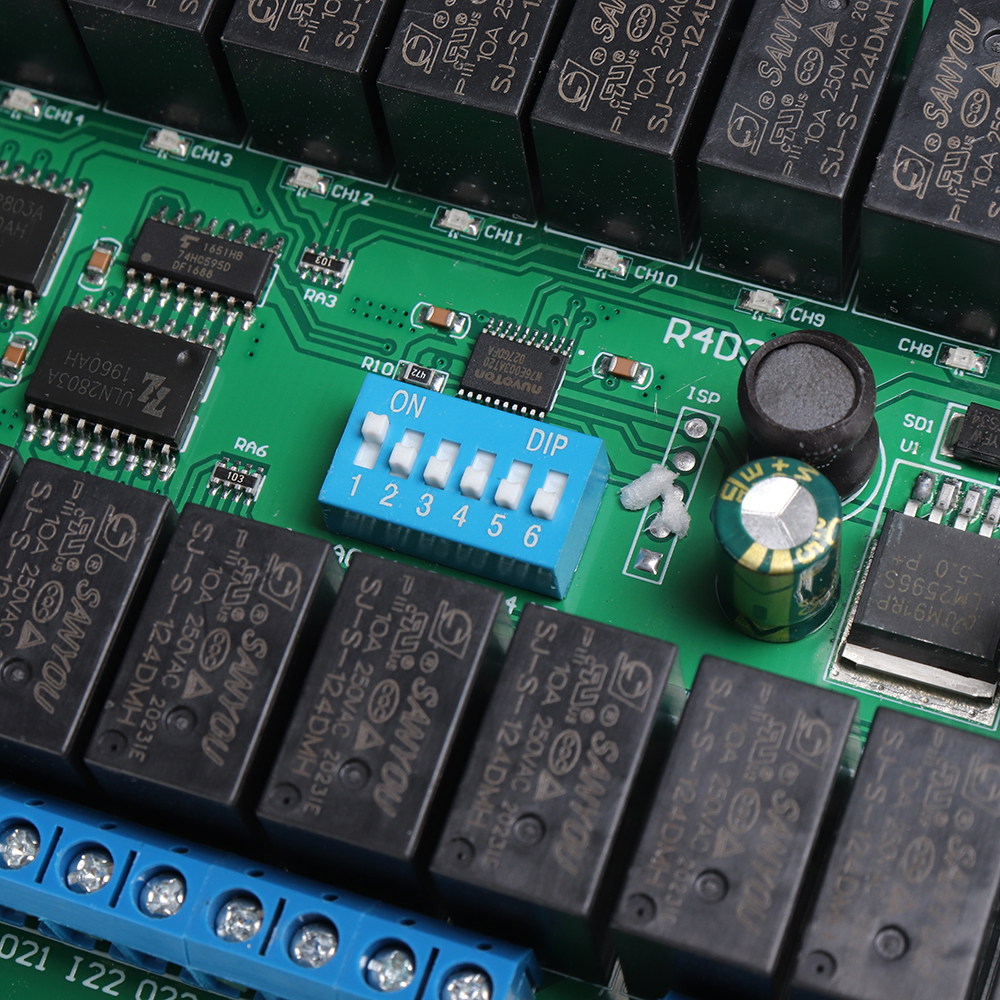

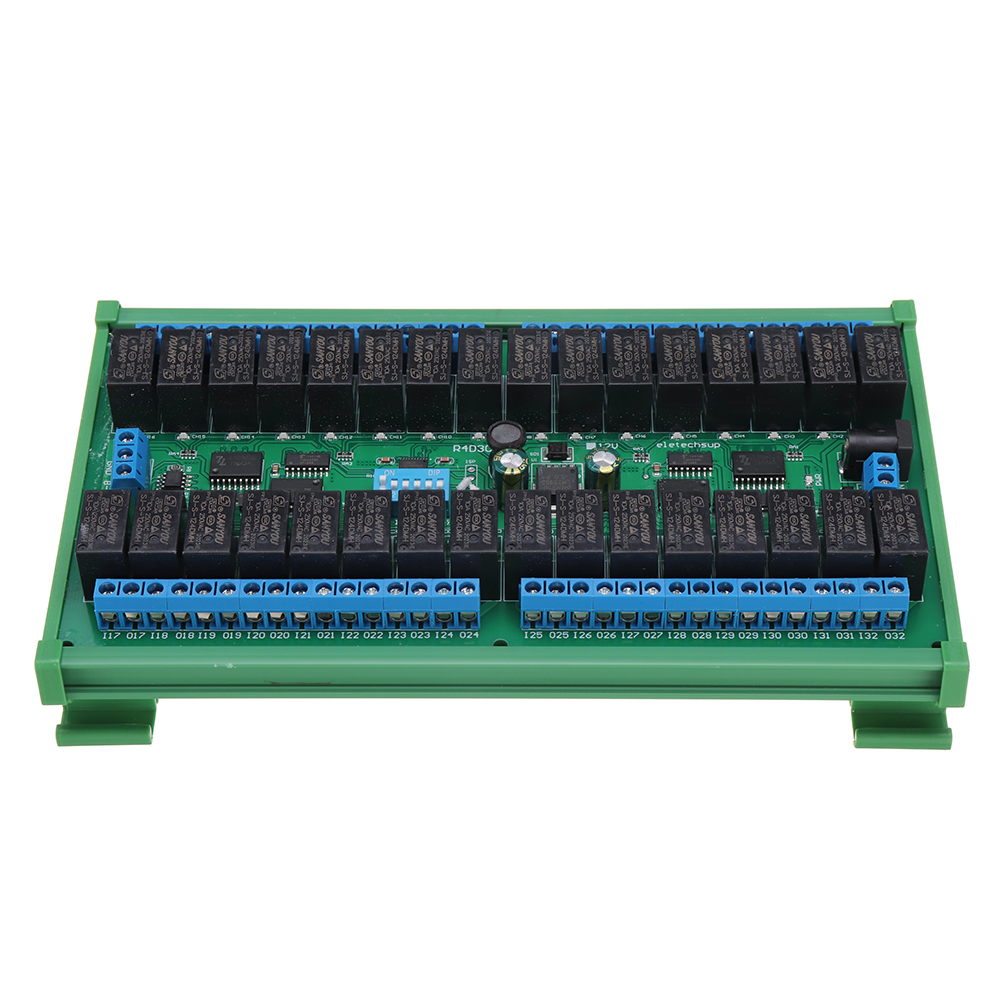

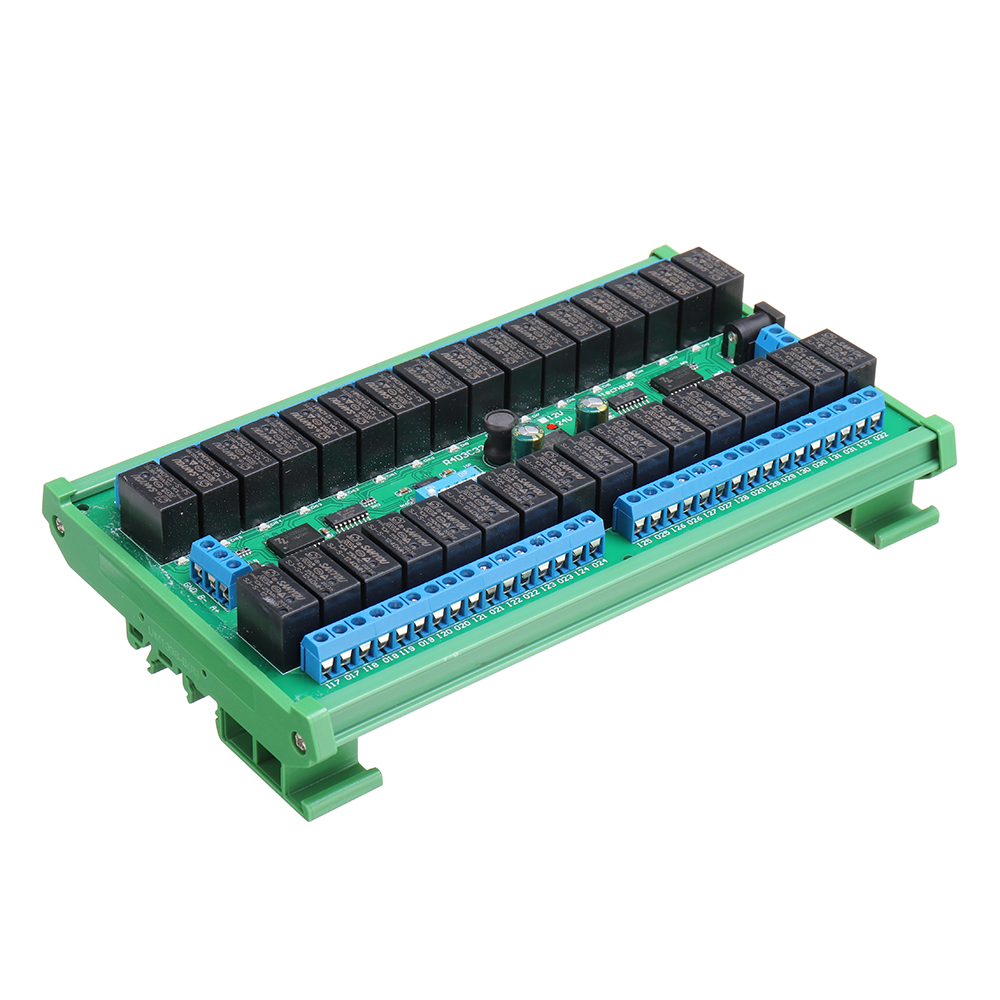

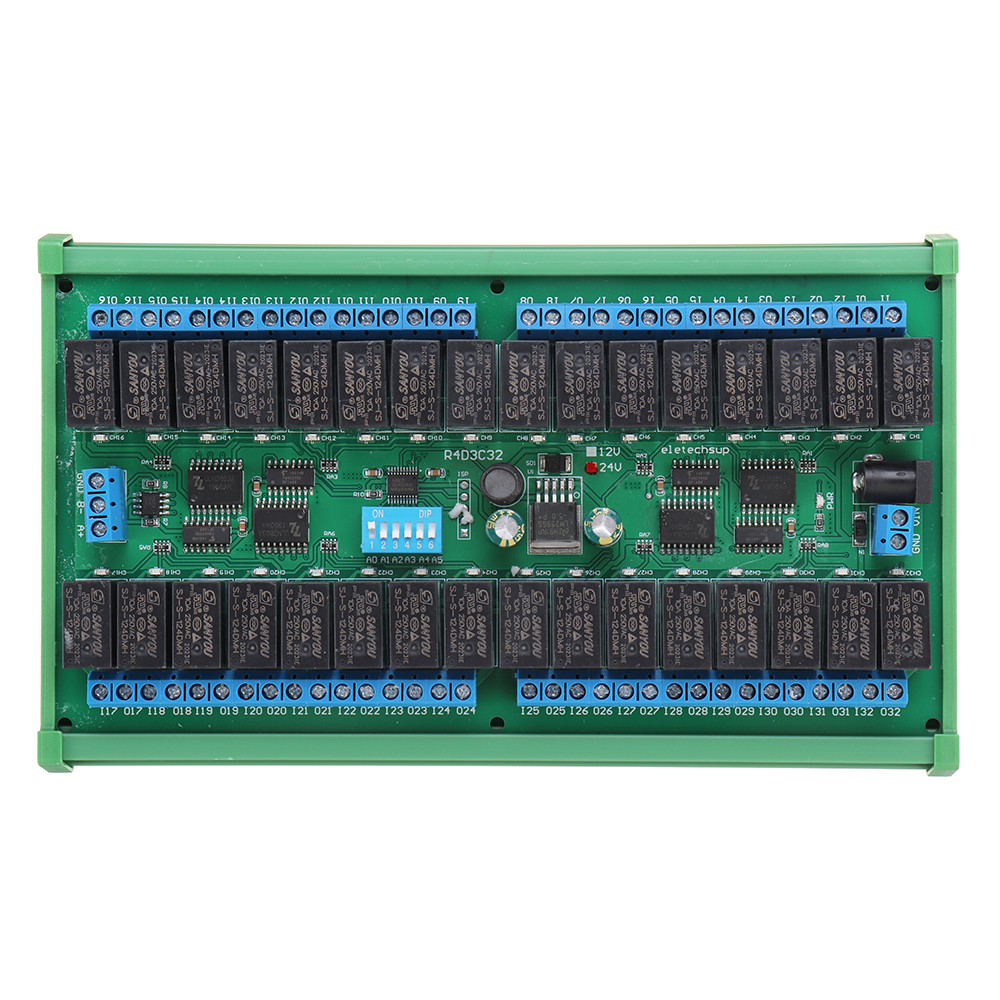

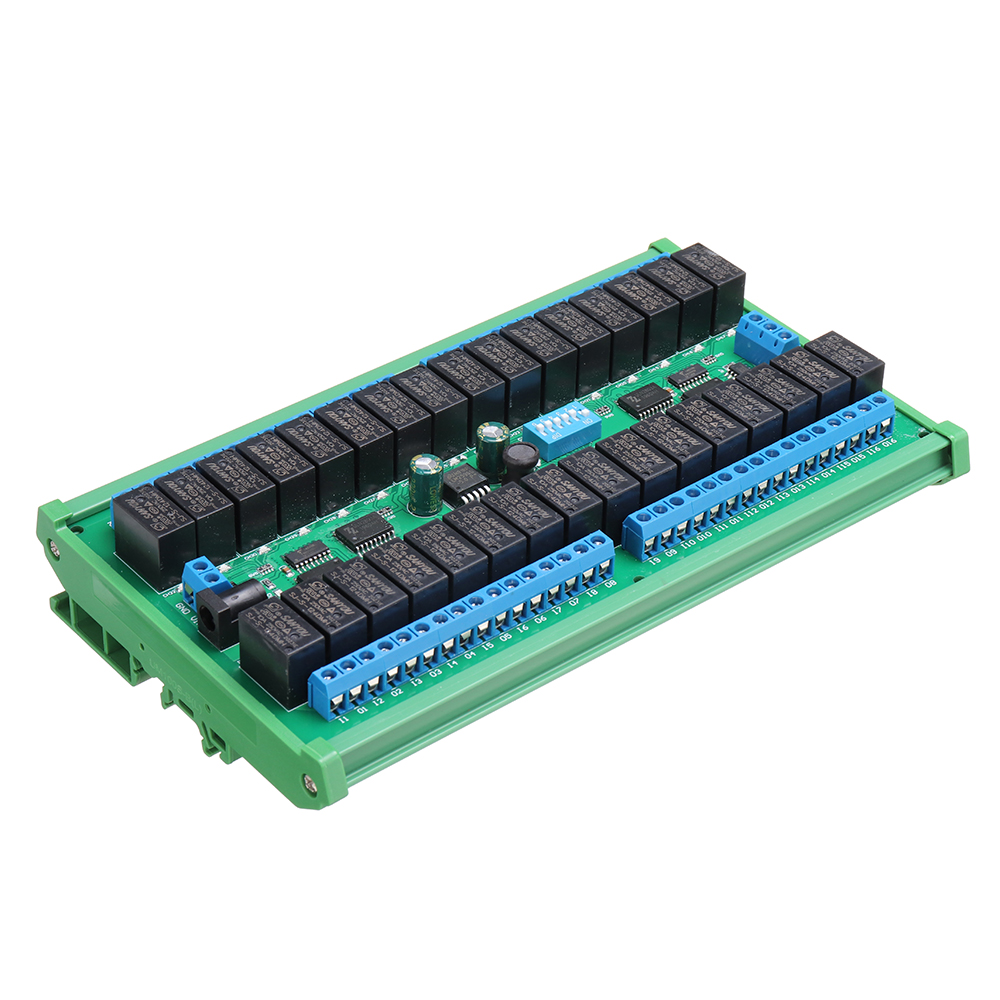

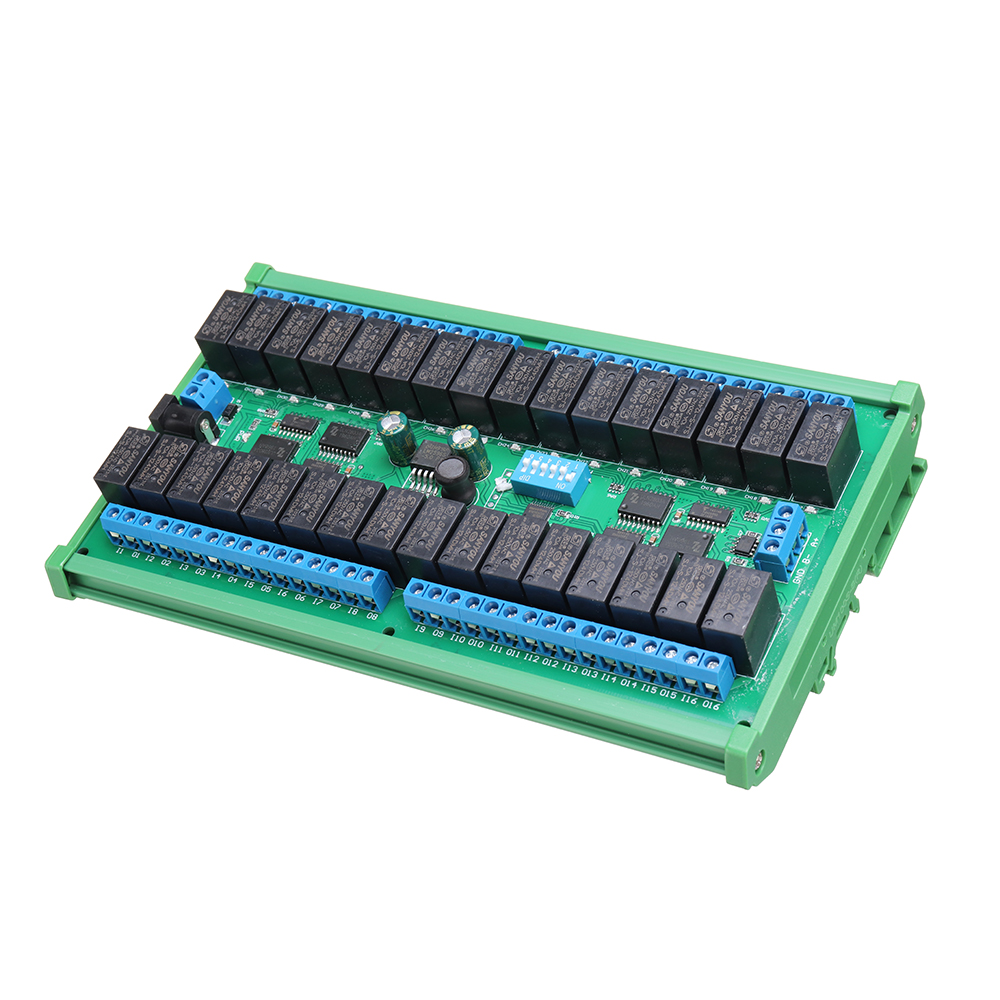

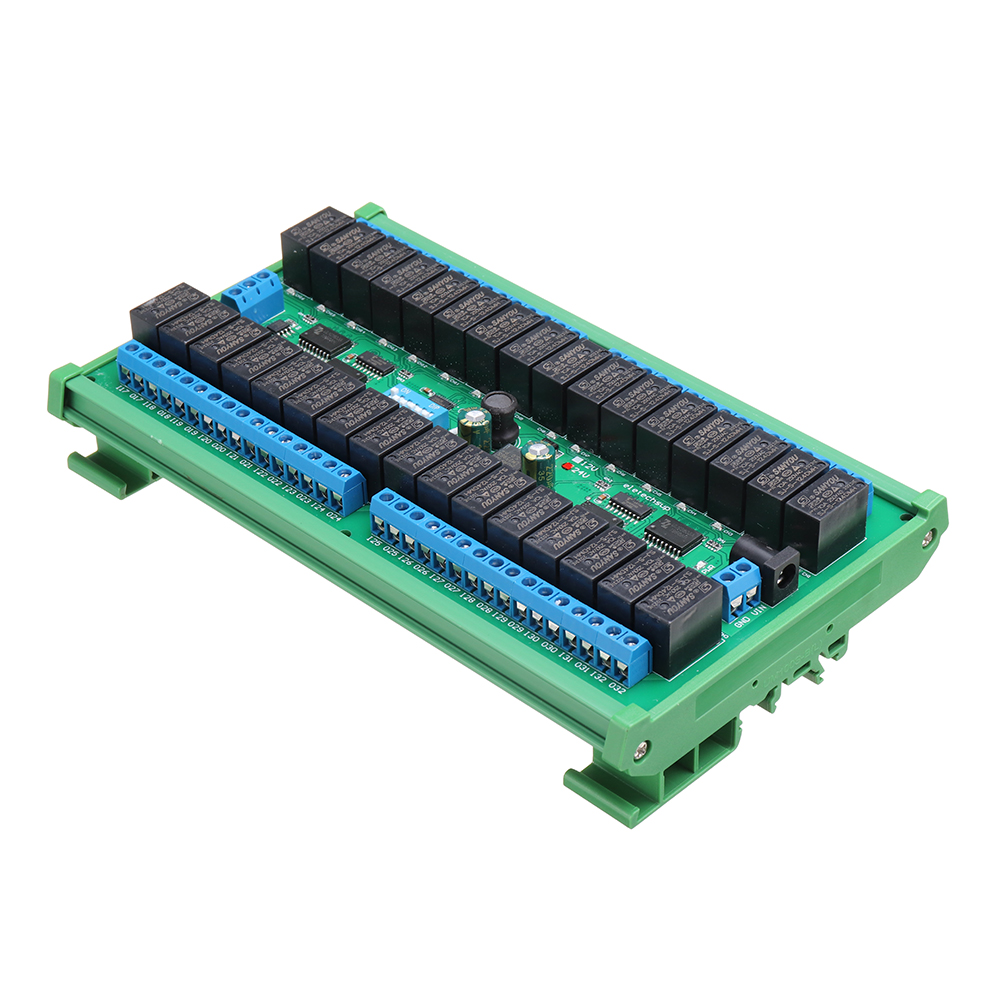

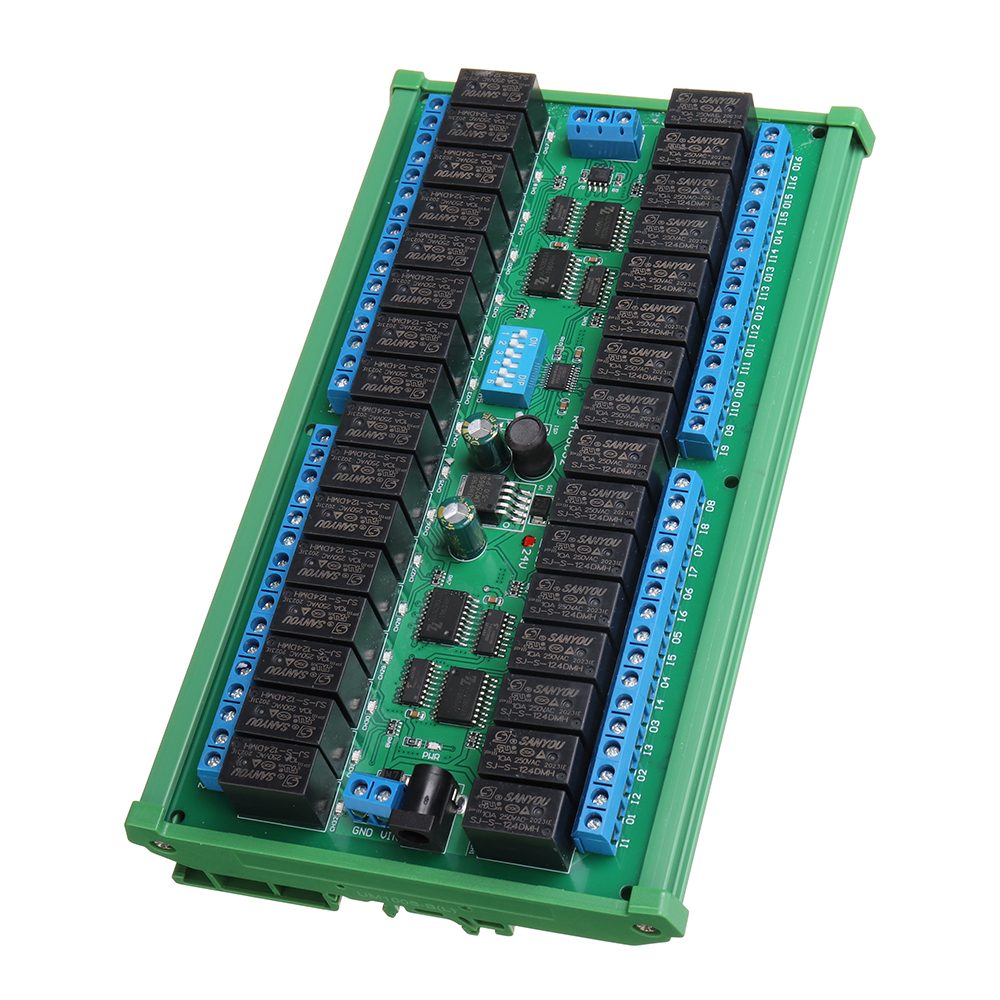

Elecbee 24V 32 Channel RS485 Modbus RTU Relay Module with DIN35 Rail Box MODBUS RTU Command
SKU: EB0046445
Favorites
Key Features
Show More
Description
- Voltage: 24V
Precise details>>
Precise details:
Description:
1. Working voltage: 24V (24V version).
2. Working current: standby 8MA, 32 relays are open 1.15A
3. "open" "close" "Momentary" "Self-locking" "Interlock" "Delay" 6 Commands
4. MODBUS RTU command
5. Under the "Delay" command, the maximum delay is 255 seconds
6. MODBUS commands can be made serial Hyper Terminal (serial assistant) or "Modbus Poll" Enter.
7. Under the MODBUS command mode, it can support up to 64 devices in parallel

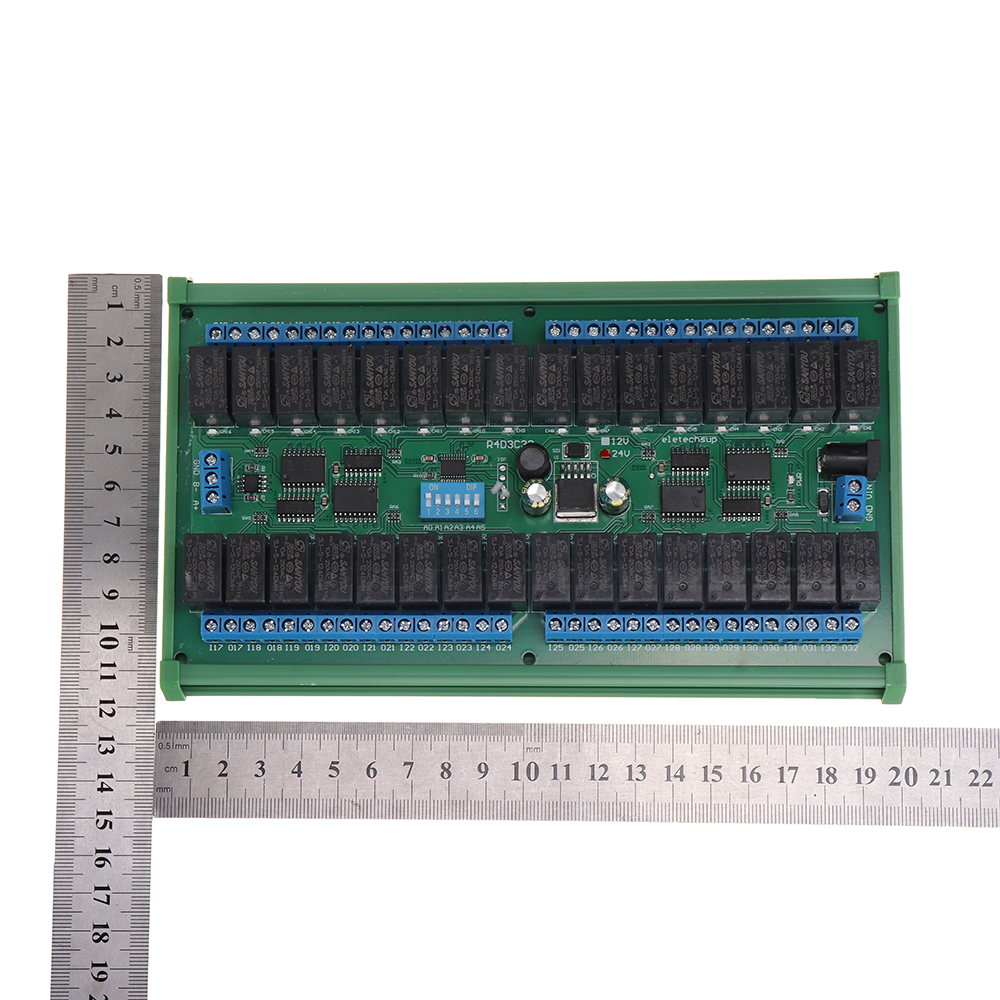

8. Size: 180 * 90 * 20mm(Only Board); 195 * 115 * 43mm(with DIN Rail Box)
9. Weight: 296g (Only Board); 475g ( with DIN Rail Box)
10. Maximum load: 10A / 125V AC

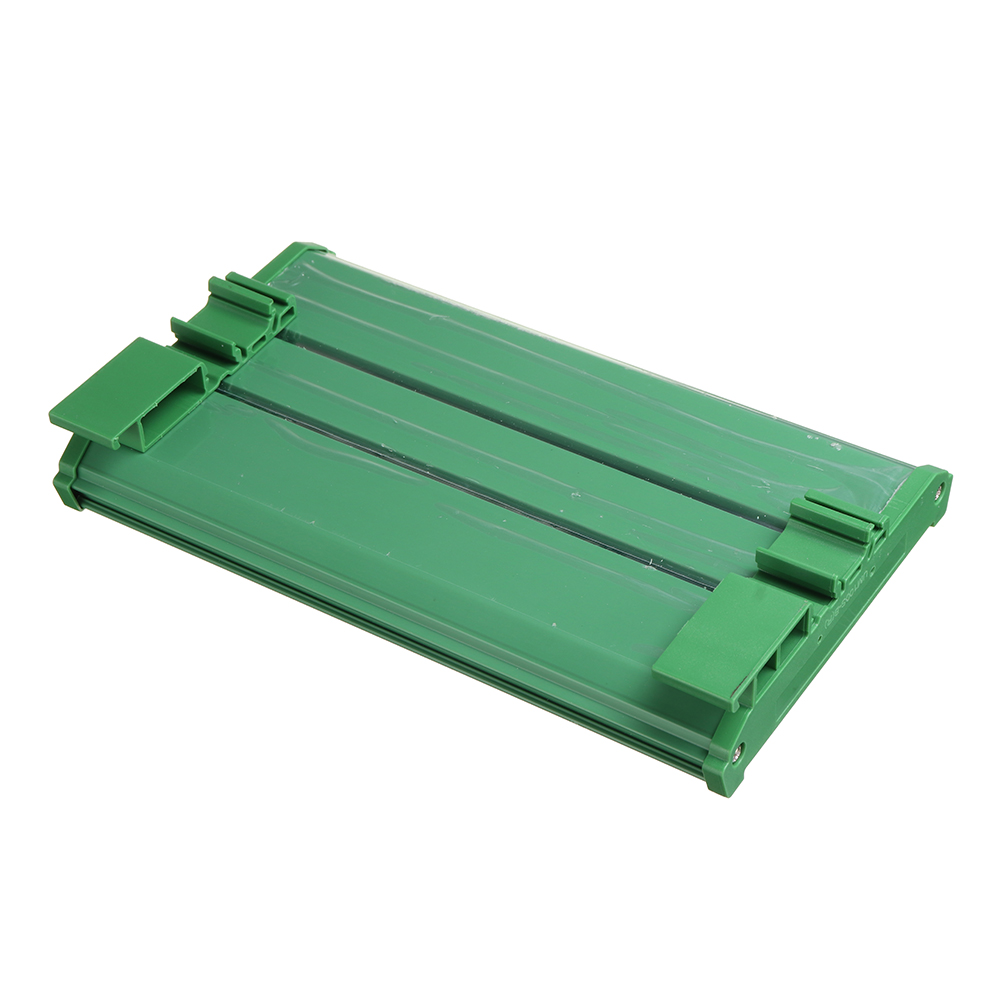

DIN rail Box parameters:
Product model: UM100
Color: Green
Width: suitable for PCB board width UM100(100mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 190 mm PCB boards
Net weight: 170g
Installation: DIN35 and C45 rail
Application:
Automated industry PLC
Smart Home, Home Automation, Wiser Home
IP PTC Camera
Security Monitoring
Identification system
Motor FW & BW
LED Home lighting
Door Lock
DIY electronic
1 x 32 channel RS485 relay module
Description:
1. Working voltage: 24V (24V version).
2. Working current: standby 8MA, 32 relays are open 1.15A
3. "open" "close" "Momentary" "Self-locking" "Interlock" "Delay" 6 Commands
4. MODBUS RTU command
5. Under the "Delay" command, the maximum delay is 255 seconds
6. MODBUS commands can be made serial Hyper Terminal (serial assistant) or "Modbus Poll" Enter.
7. Under the MODBUS command mode, it can support up to 64 devices in parallel
8. Size: 180 * 90 * 20mm(Only Board); 195 * 115 * 43mm(with DIN Rail Box)
9. Weight: 296g (Only Board); 475g ( with DIN Rail Box)
10. Maximum load: 10A / 125V AC
DIN rail Box parameters:
Product model: UM100
Color: Green
Width: suitable for PCB board width UM100(100mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 190 mm PCB boards
Net weight: 170g
Installation: DIN35 and C45 rail
Application:
Automated industry PLC
Smart Home, Home Automation, Wiser Home
IP PTC Camera
Security Monitoring
Identification system
Motor FW & BW
LED Home lighting
Door Lock
DIY electronic
1 x 32 channel RS485 relay module
