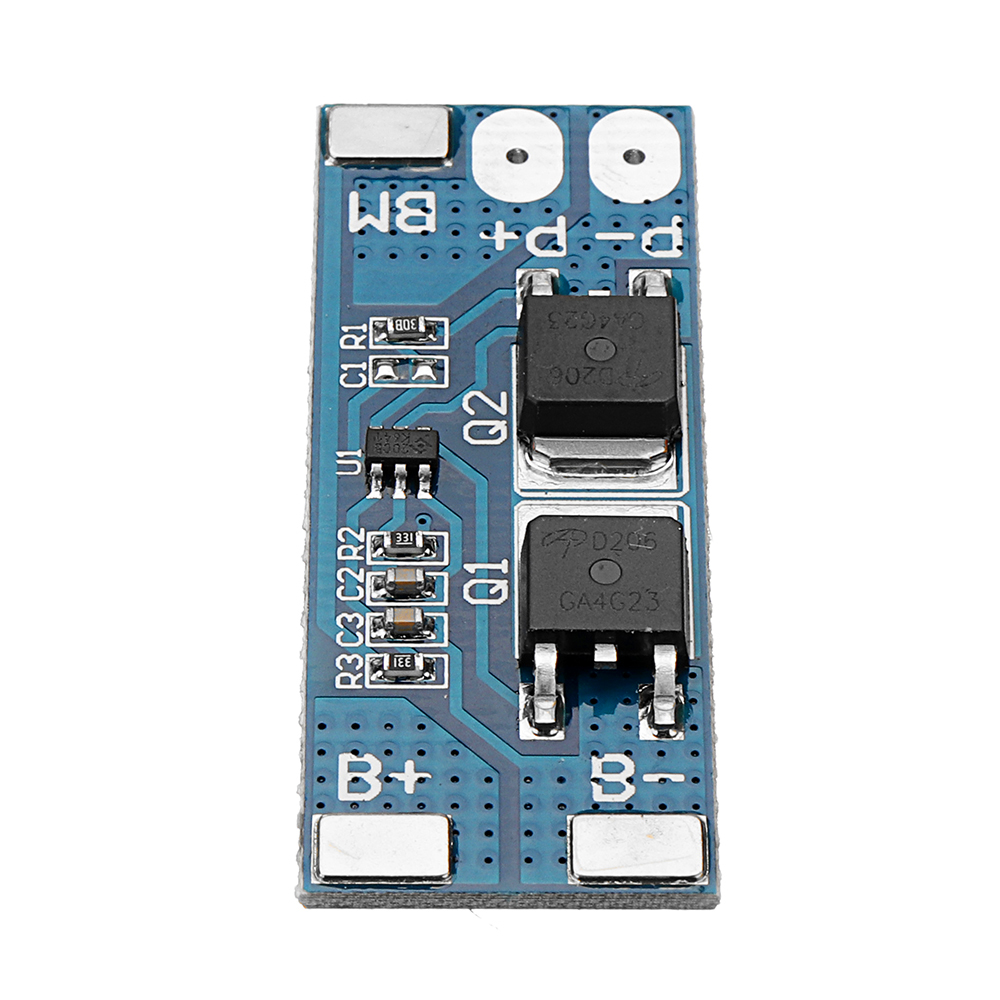

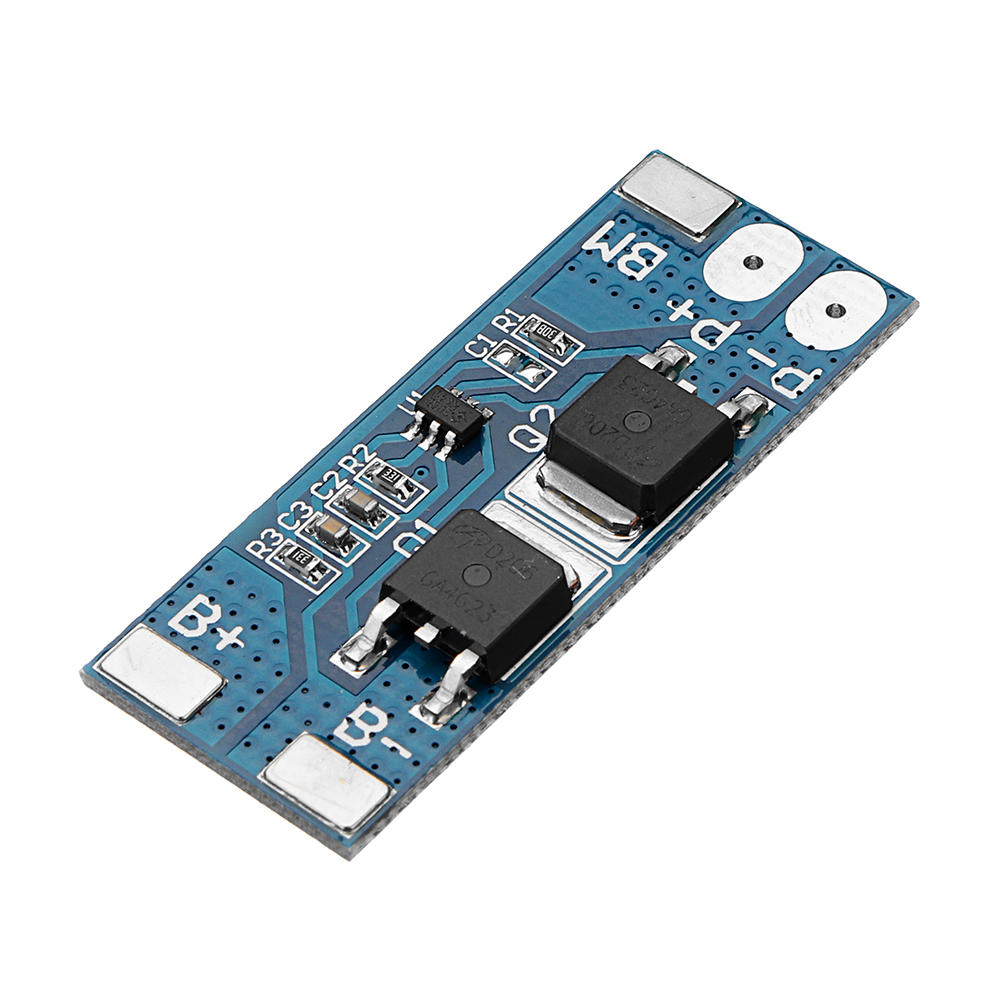

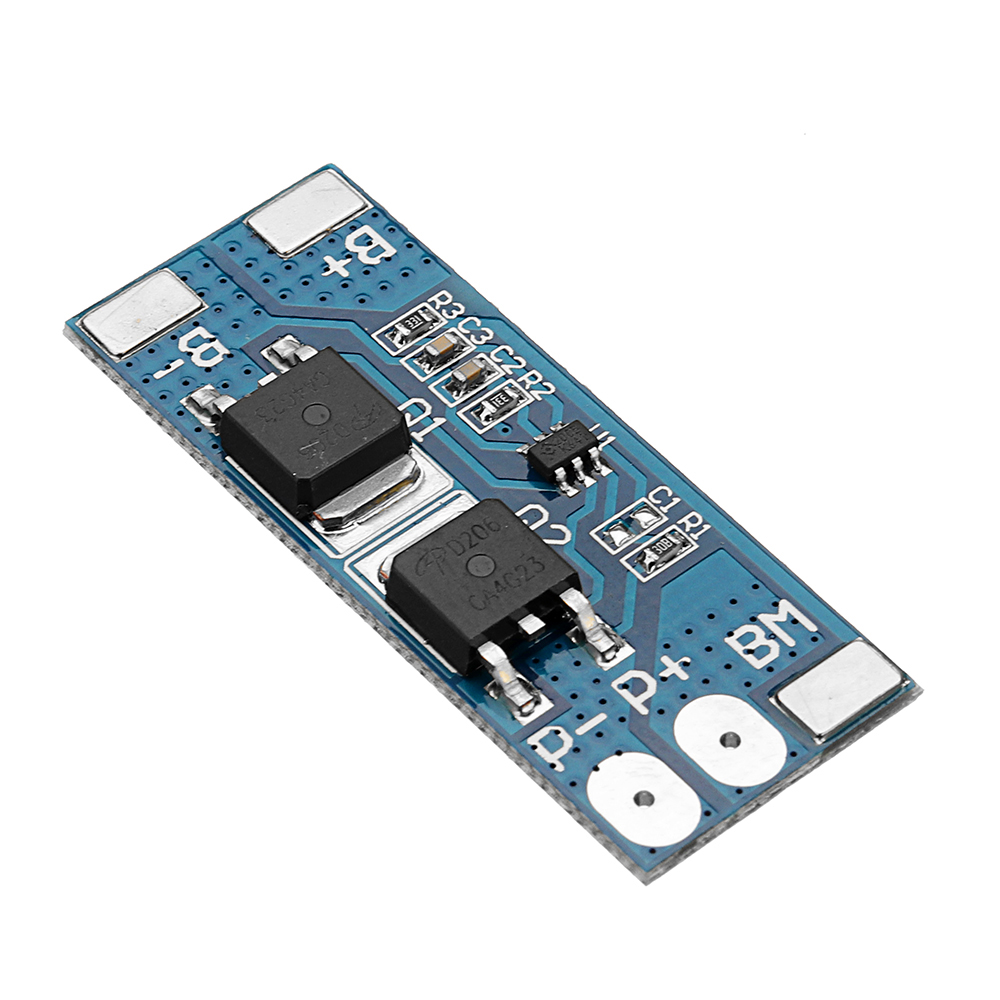

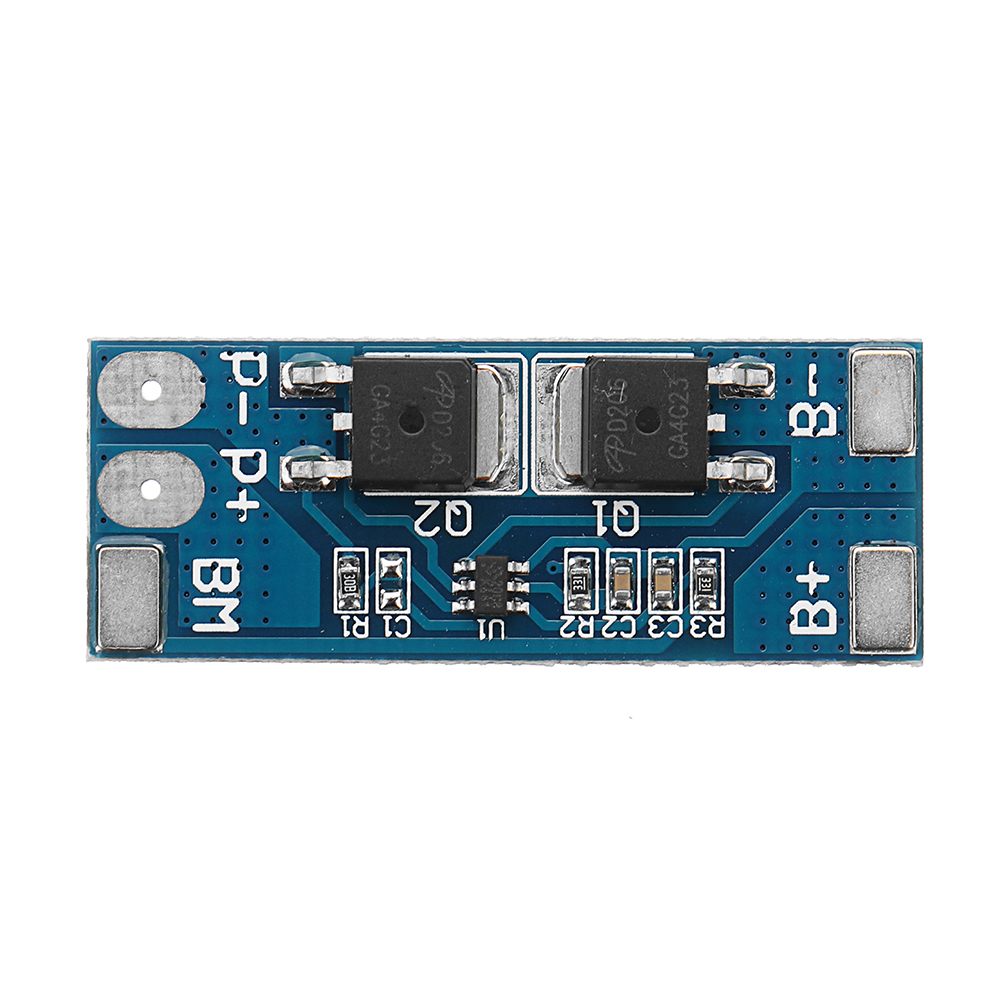

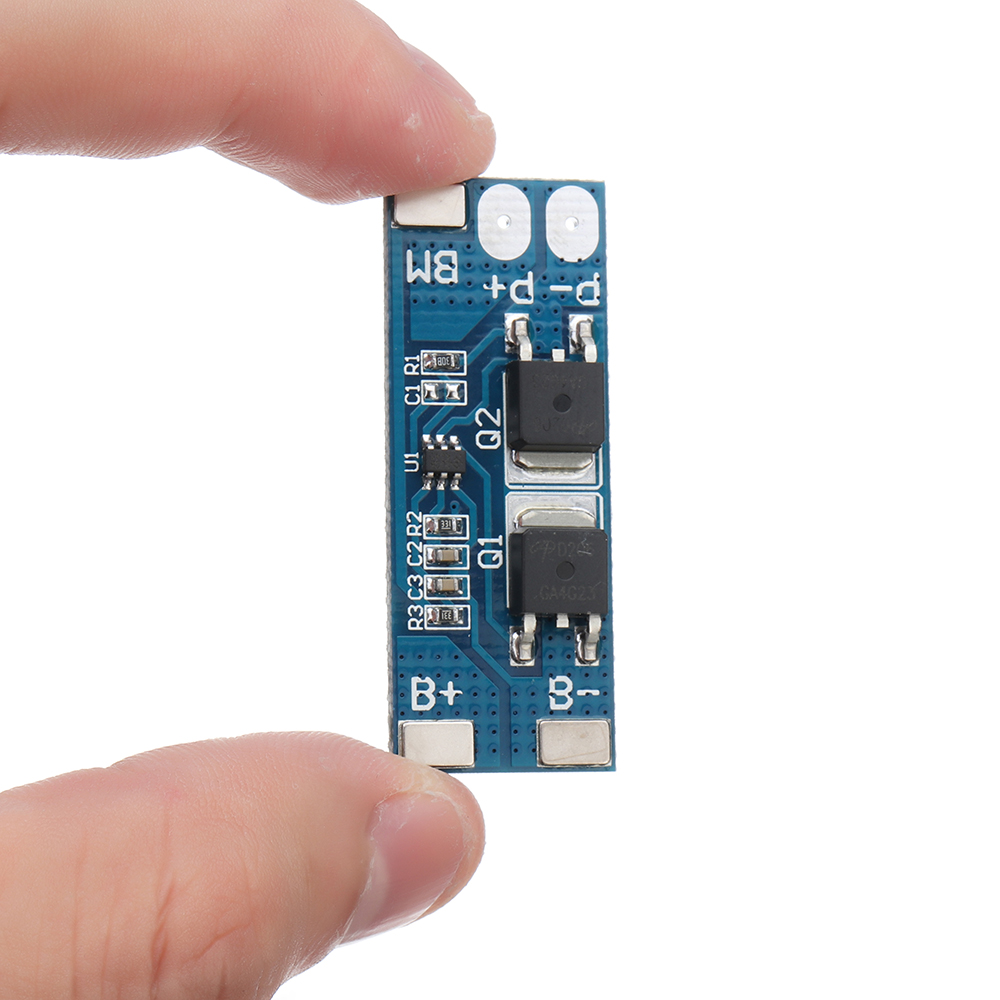

Elecbee 2S String Anti-overcharge Over-discharge 7.4V Lithium Battery Protection Board

SKU: EB0044495
Favorites

Key Features

Show More
Description
Description:

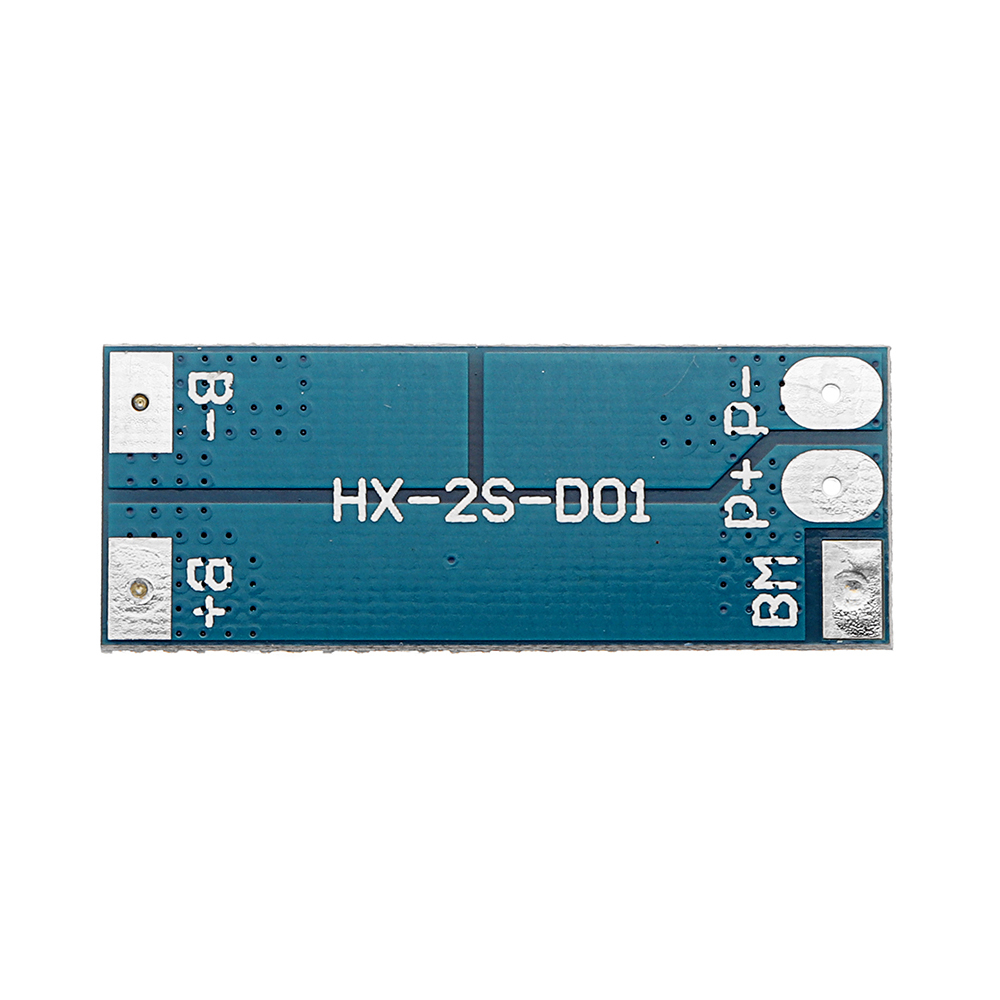

Model: HX-2S-D01
Overcharge voltage range: 4.25-4.35v±0.05v

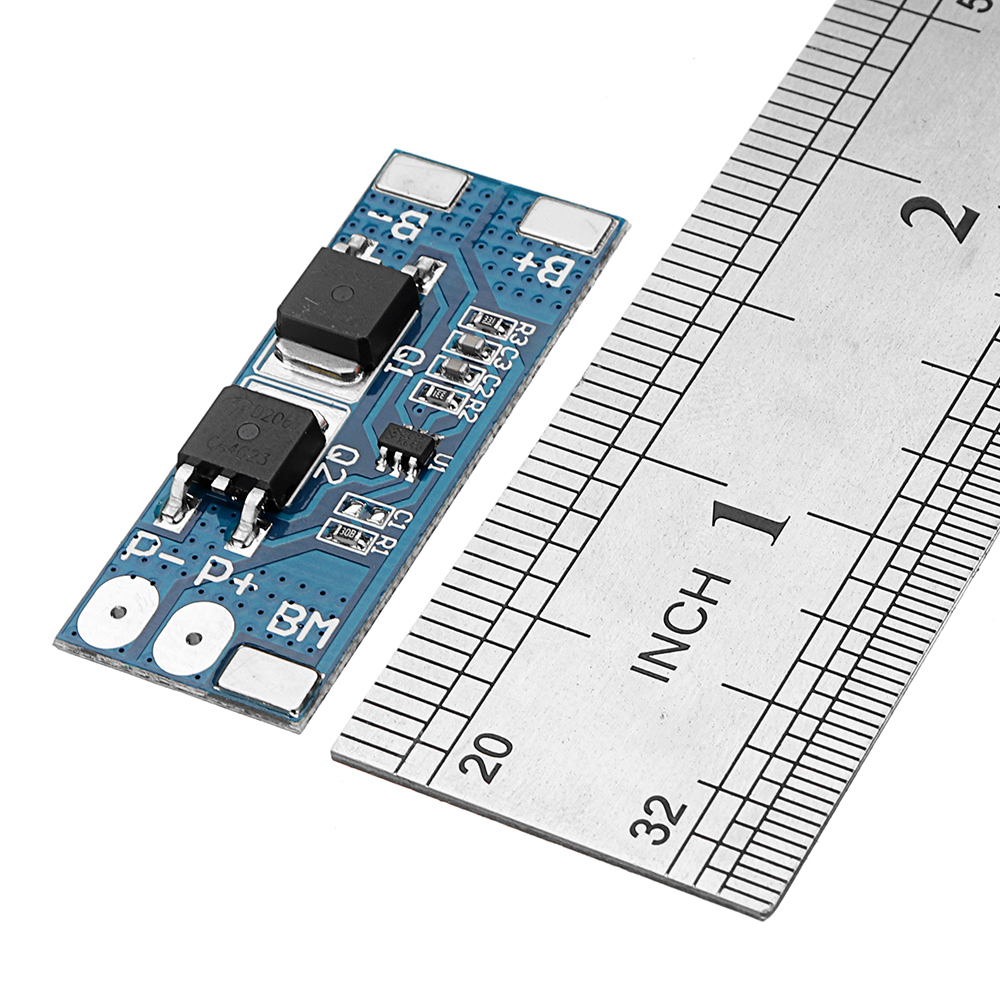

Size: 41*16*3.5mm
Over-discharge voltage range: 2.5-3.0v±0.05v
Upper limit working current: 8A
Working temperature: -40---+50 °C
Upper limit instantaneous current: 10A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 10uA
Effective life: more than 50,000 hours
Internal resistance: less than 300mΩ
Short circuit protection: can protect, disconnect load self-recovery, charge recovery

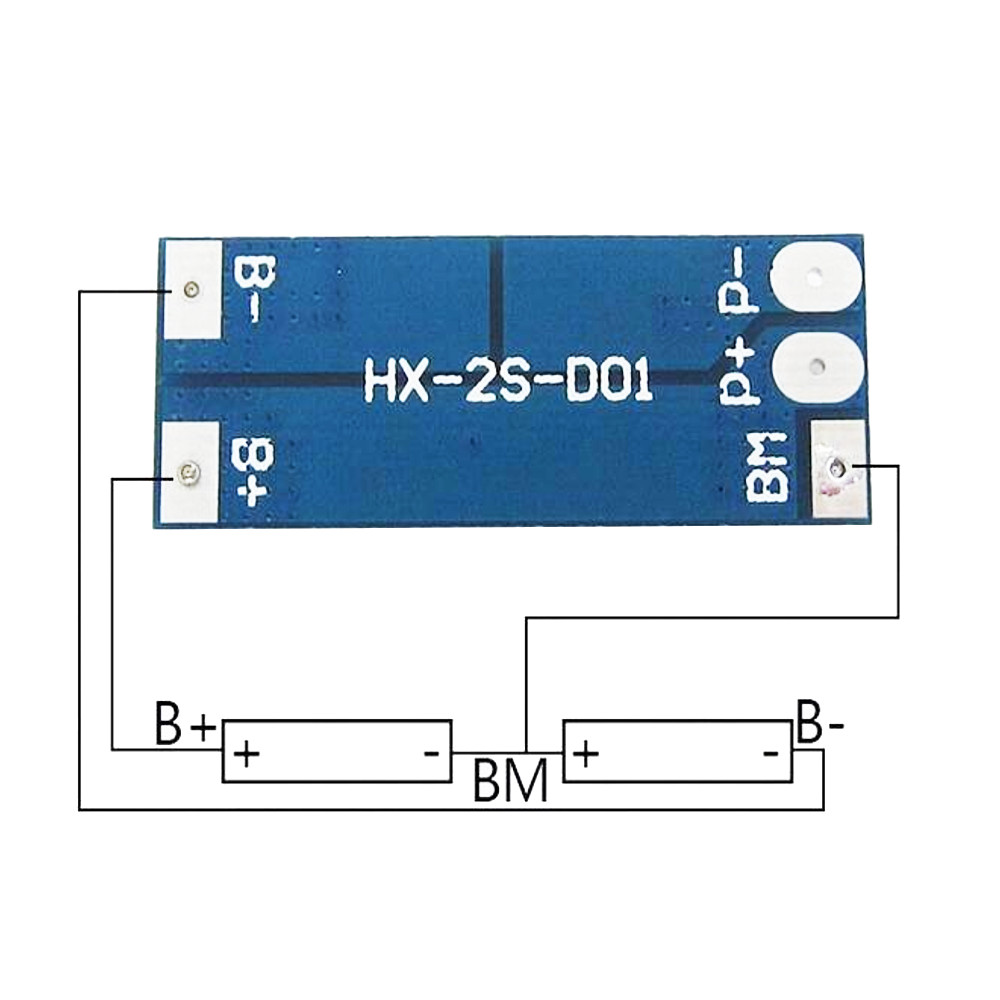

Welding point description:

· B+ is connected to the battery positive pole;
· B- is connected to the negative pole of the battery;
· MB is connected to the connection point between battery 1 and battery 2;
· P+ is connected to the positive terminal of the charge/discharge terminal (the charge terminal/discharge terminal is shared);
· P- Connect the charge/discharge terminal negative (common to the charge/discharge terminal).



1 x Battery Protection Board






2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096
2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096

2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096

2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096

2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096

2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096

2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096

2S-String-Anti-overcharge-Over-discharge-74V-Lithium-Battery-Protection-Board-1336096
