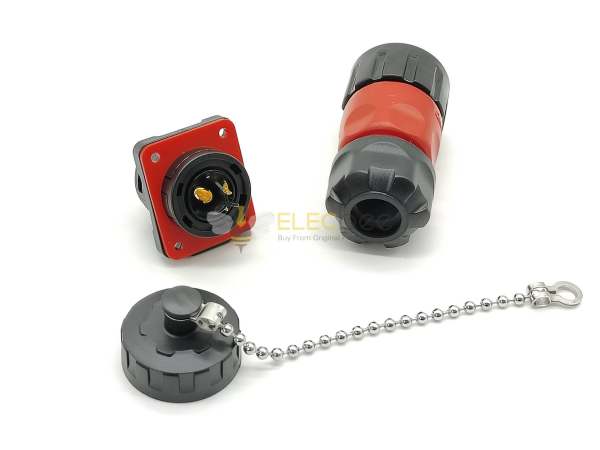

Package list: 1 male plug + 1 female socket+ 1 dustproof cover.

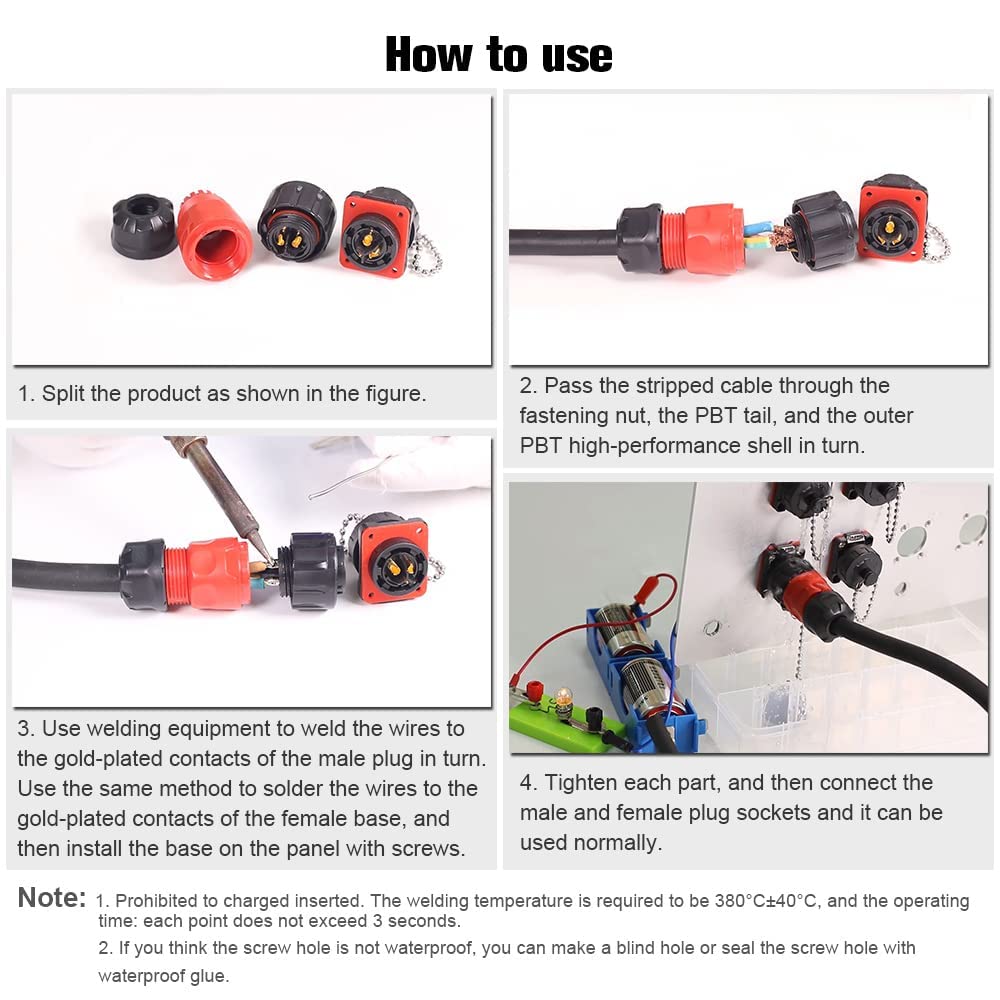

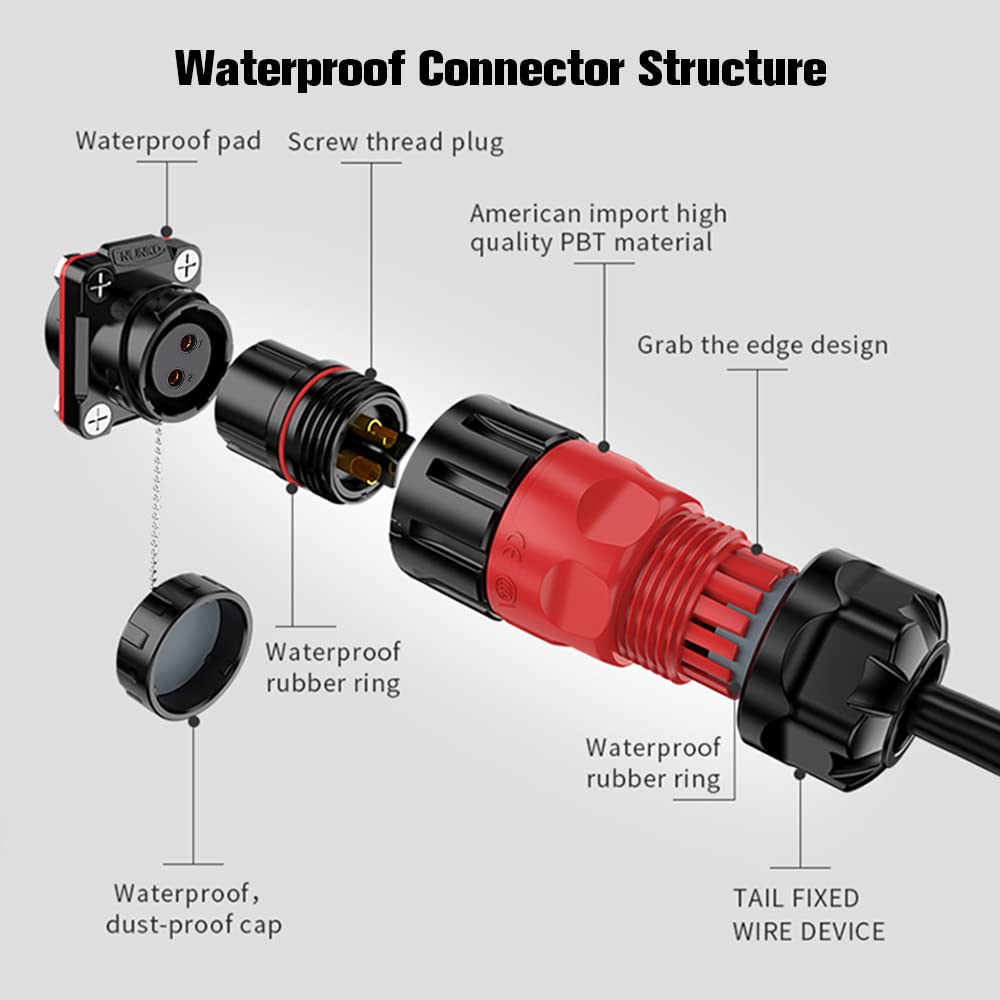

Adopt a bayonet-type fast locking connection, which is convenient, fast, safe, and stable. The precise structure positioning system ensures the safety and stability of the connection performance. The wiring welding temperature requirement is 380℃±40℃, operation time is: each point does not exceed 3 seconds.

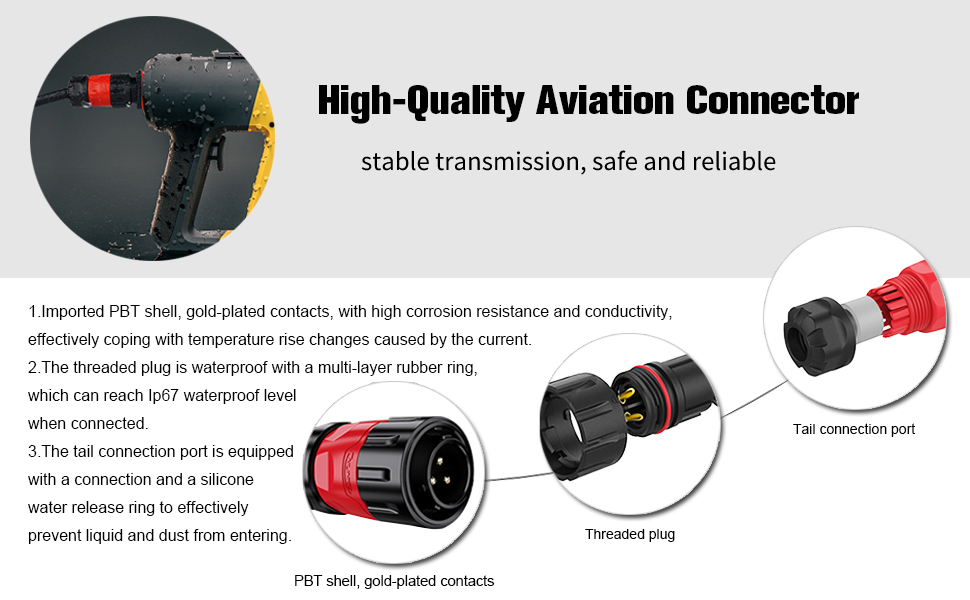

Wide Application Power Circular Connector: Aviation connector is ideal for any equipment for watertight, indoor/outdoor applications, such as outdoor electric tools or appliances, medical device, audio/video, robot, RV solar, communications, marine or automatic equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, etc.

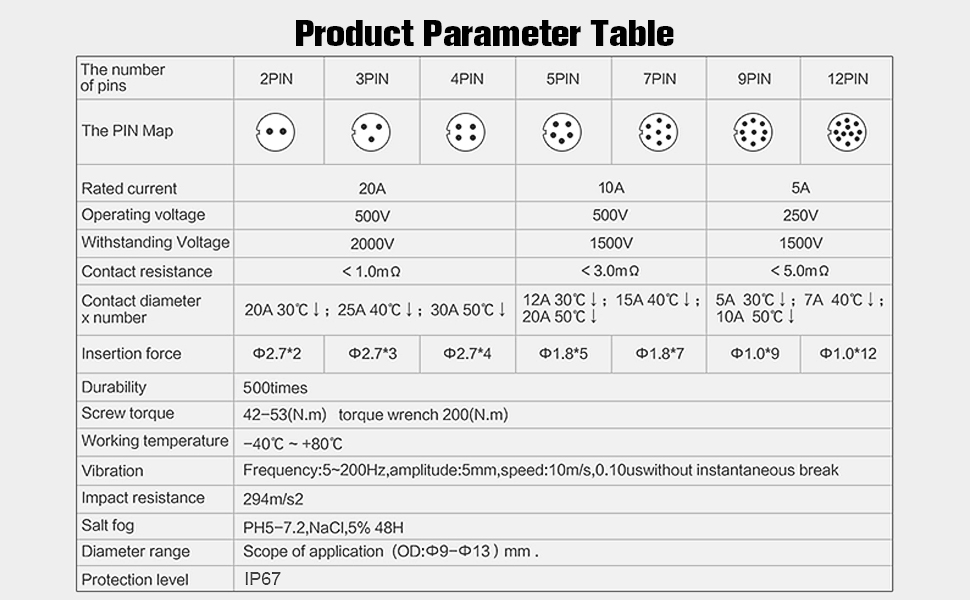

| Material | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
| Rated Voltage | AC 500V | AC 500V | AC 500V | AC 500V | AC 500V | AC 400V |
| Rated Current | 20 A | 20 A | 20 A | 25 A | 25 A | 10 A |
| Cable Specification | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 1.0 --1.5mm² /18-16 AWG |

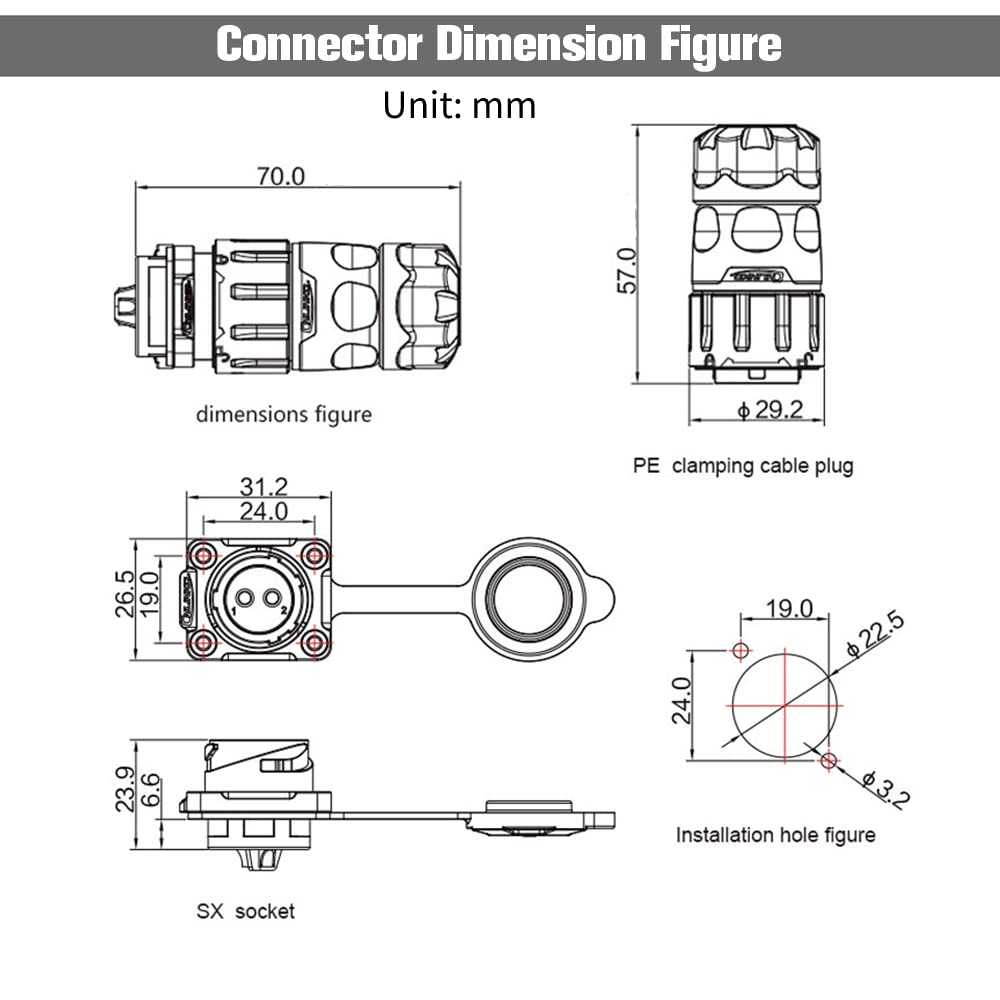

| Available Wire Diameter | Φ9-12mm | Φ9-12mm | Φ9-12mm | Φ10-14mm | Φ10-14mm | Φ10.0mm～Φ13.0mm |
| Waterproof Level | IP67(when connected) | IP67(when connected) | IP67(when connected) | IP67(when connected) | IP67(when connected) | IP67(when connected) |
| Connection Type | Solder | Solder | Solder | Solder | Solder | Solder |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
