Elecbee 4CH 200M Wireless Remote Control Relay Switch Receiver + 2 Transceiver 4 Channel 12V DC for Smart Home

SKU: EB0042665

Favorites

Key Features

- Easy installation and use

- Stable and reliable, high receive sensitivity

Be designed to control a wide variety of electronic devices with a - wireless signal

Fitment:

It covers application ranging from simple domestic remote control to autonomous control, like auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

JP1

Show Similar Products >

Description

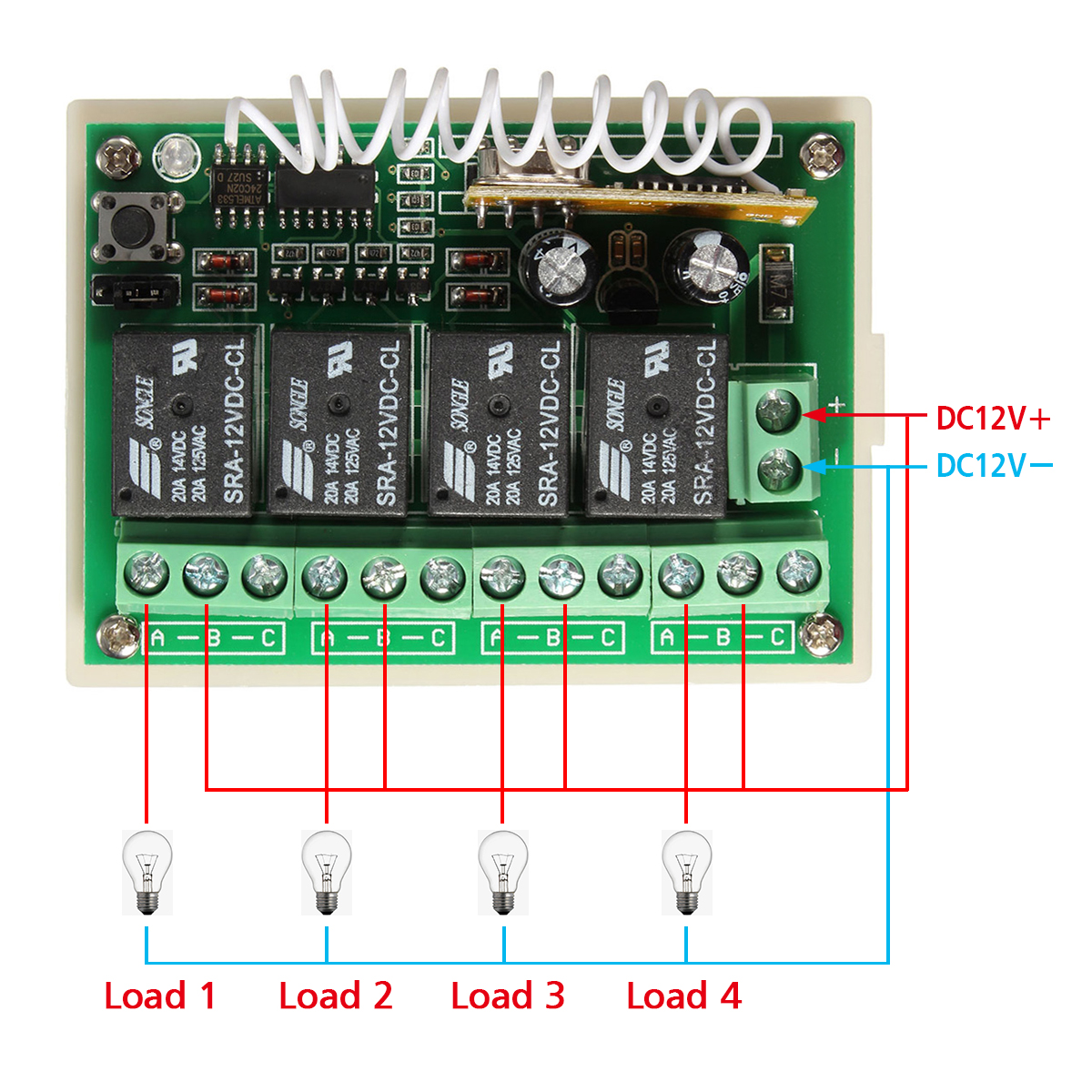

Output Working Way:

1. Self-lock: connect the JP1 with the cutting out cap.

2. Jog: the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.

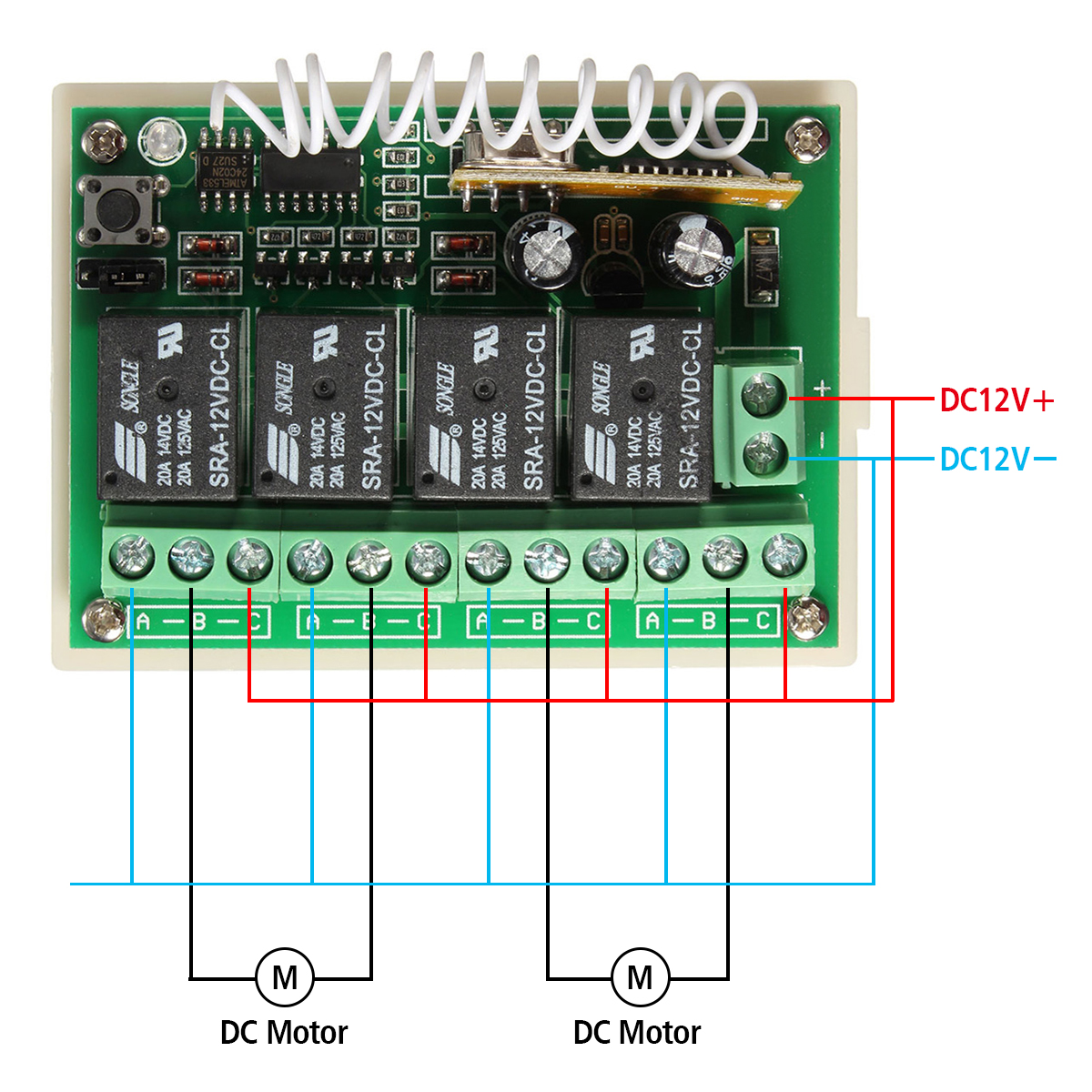

3. Inter-lock: Connect the Jp2 with the Cutting out cap,

Jog: press one button is ON, loosen your finger on the same button is OFF (need one channel switch and one buttons remote control).

Self -lock: press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control).

Inter-lock: press one button is ON, press another button is OFF (need one channel switch and 2 buttons remote control).

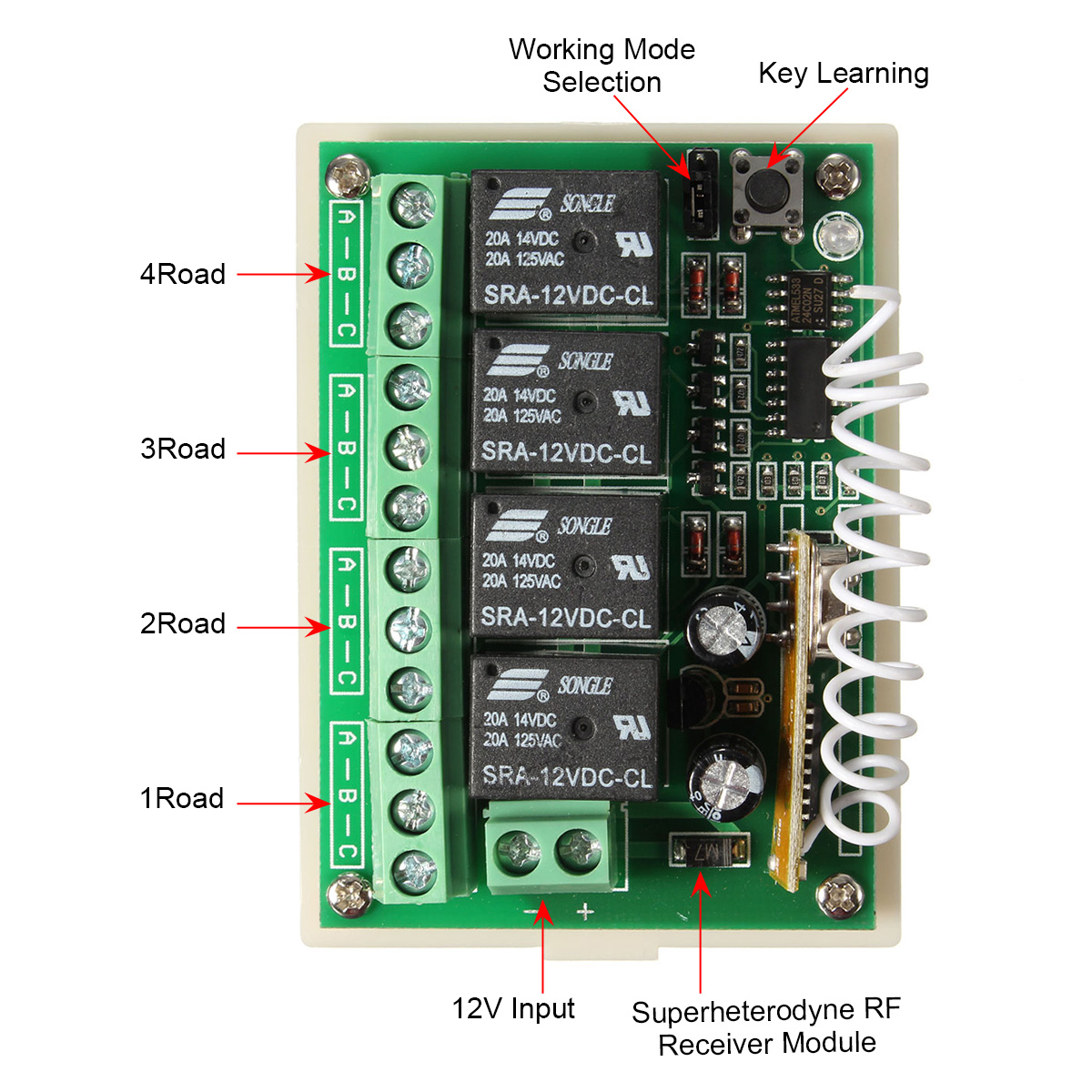

Receiver:

Operating voltage: DC 12V

Operating current: 7mA

Frequency: 433mhz

Quiescent condition: 6mA

receiver sensitivity : more than -105dBm

Output voltage: AC and DC is optional

Output current: 3A

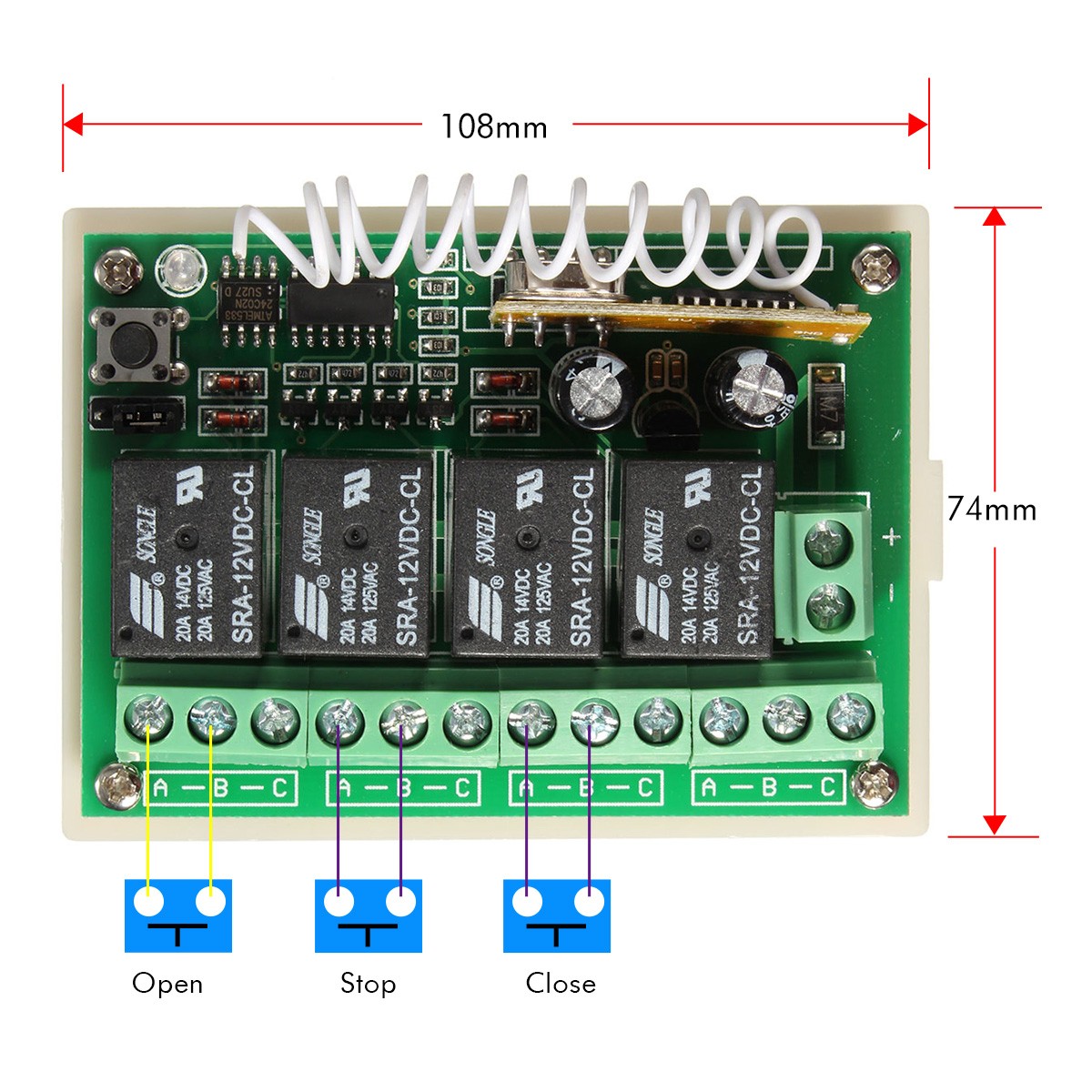

Size: 72mm (L) x 52mm (W) x 26mm (H)

Remote Control Transmitter:

Remote distance:50-100m

Operating voltage: DC 12V

Operating current: 13mA

Frequency: 433mhz

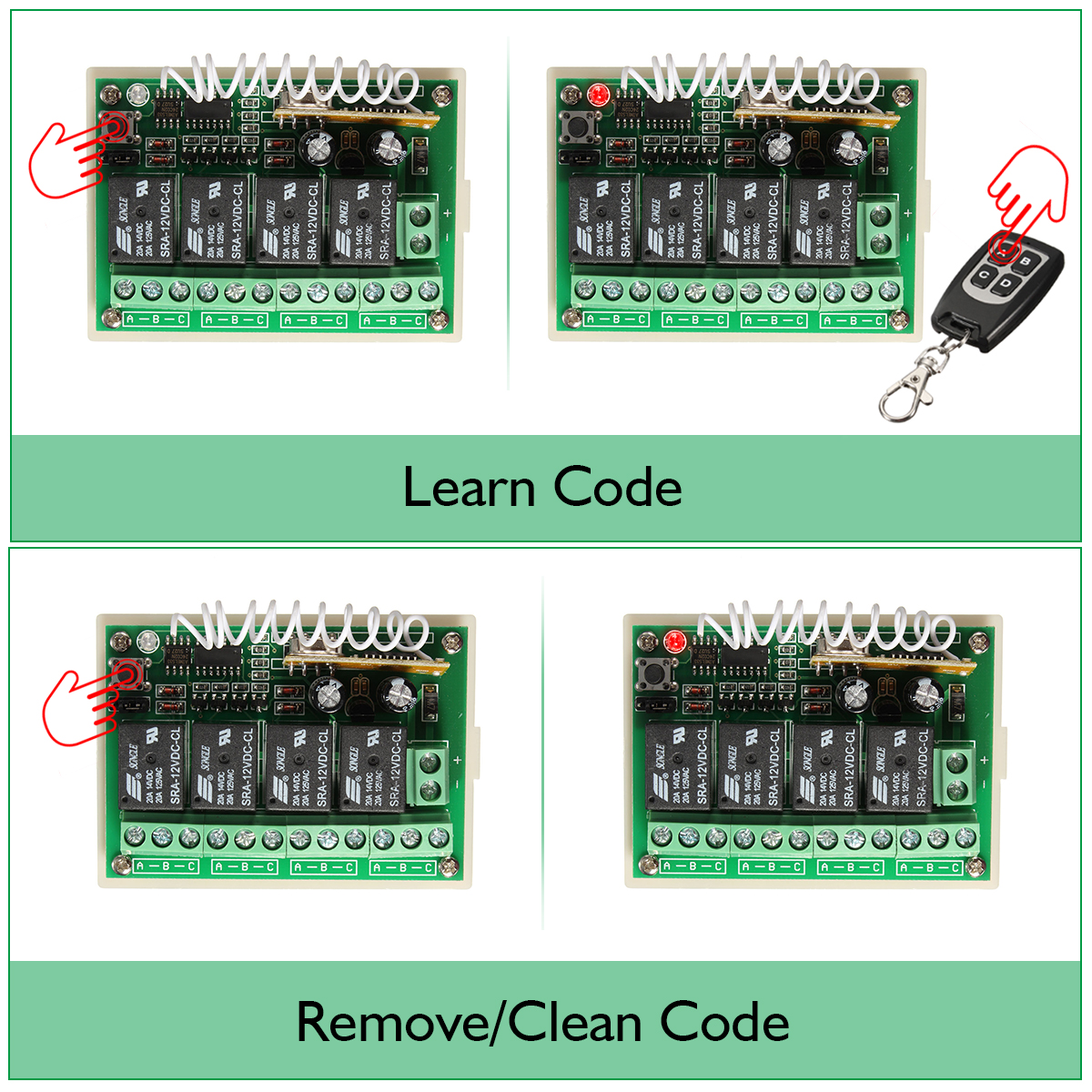

Code type: Fixed code / Learning code

Size: 55mm (L) x 30mm (W) x 10mm (H)

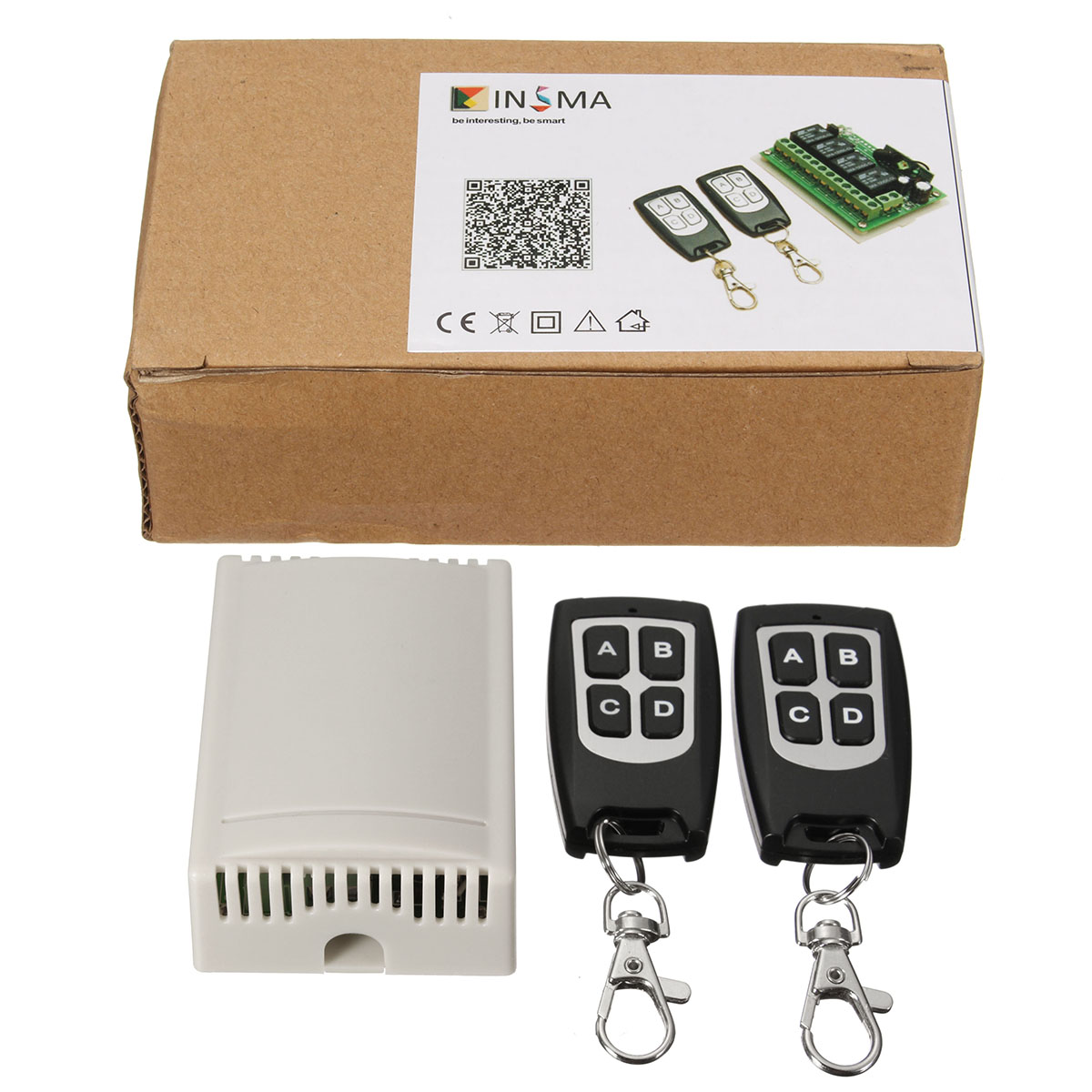

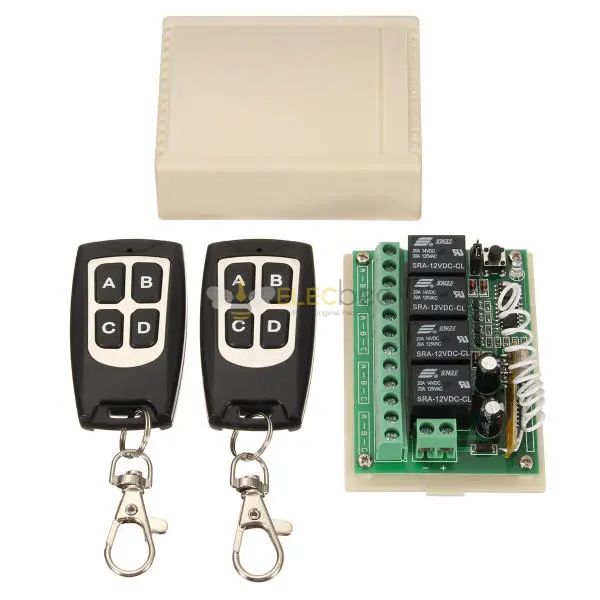

1 x Receiver

2 x Transmitter

Note:

1.Please check as much as possible to make sure the item is the one that you need, for we provide clear pictures and measurements.

2.Please allow 0.5-1 inch difference due to manual measurement.

3.Instruction is NOT included. Professional installation is highly recommended.
