Elecbee 50M/164FT Laser Distance Measuring Sensor Meter Range Finder Module Single Serial TTL Signal to PC

SKU: EB0043741

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Model

MMUNAULNEW703A

USB Support

USB

Show Similar Products >

Description

>>>Manual: Click here to open<<<

Specifications:

Interface:3.0V TTL signal .by PC show date. three wire serial interface ( the single chip microcomputer UART interface), 19.2 KHZ.Start bit 1 + 8 + 1 stop bit and no flow contro

2 mA electrical flow: DC3V, standby, measuring 120 mA;

Laser type: 635nm, 1 mw.(red)

Range: 0.02 to 50 meters;

Measurement speed: 0.3-3 s

Typical accuracy: + / - 1 mm

Storage temperature: - 20-60 use temperature: -10-40

Module size: Approx 45*25*12mm

Communication and Control:

Communication interface: serial communication (TTL), 19.2K, baud rate parity bit: no parity, data bits: 8;

Function: send capital letters "O" to open the laser, capital letters "C" to close the laser, capital letters "D" for measuring distance, capital letters "S" to view the module temperature and power supply

Instructions: open the laser, laser, a single measurement, gets to the power supply voltage and temperature.

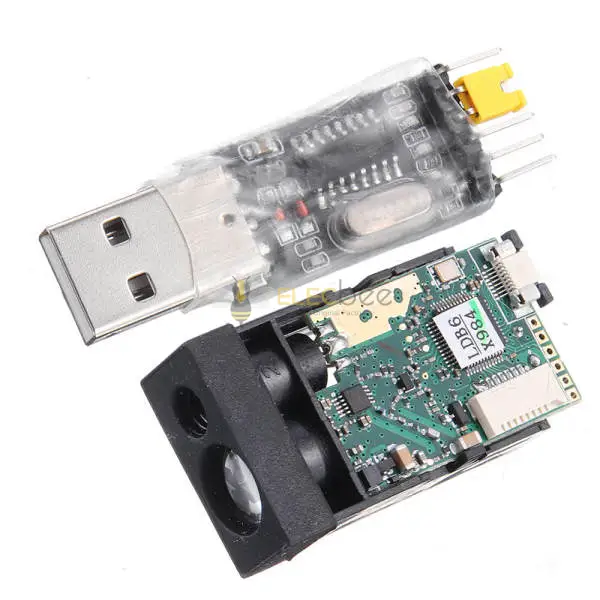

1 X 50M/164FT Laser Distance Measuring Sensor Range Finder Module
1 x USB to TTL Module
