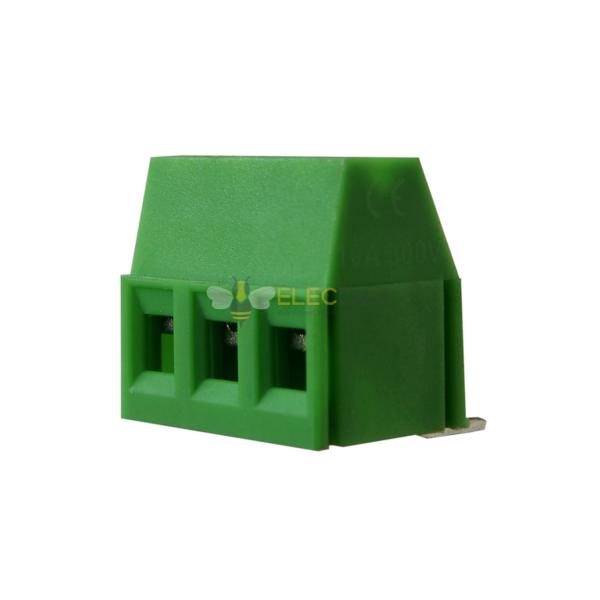

Elecbee 5mm 3-pin Screw Type Right Angle PCB Terminal Block

SKU: EB-620-1060
Favorites
Key Features
  • 5mm 3-pin screw terminal for secure connections.
  • Right-angle design saves space on PCB boards.
  • Includes solder lug for easy wire attachment.
  • Compatible with DC power applications.
Show More
Description

Extra Information

Brand:
Elecbee
No of Positions:
3 Way
Pitch:
5 mm
Rated Current:
20 A
Dielectric Strength:
> 2 kV
Rated Voltage:
300 V
Moulded Material:
Polyamide (Nylon) 66 - UL94 V0 or V2
Insulation Resistance:
> 1000 M-ohm @ 500 Vdc
