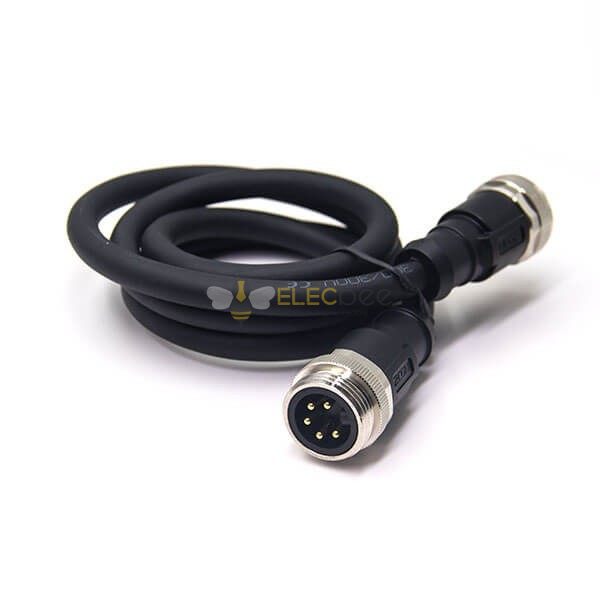

Elecbee 7/8" Series Connector 5 Pin Male to Female Straight Connector With Double ended Cable Over molded Cable 1M UnShielded

SKU: EB-400-8015

Favorites

Key Features

Features:

TAG:5pin,Female,Female,Straight,for Cable,7/8 Connector with double ended Cable,Over molded Cable,1M
high-class material ensuring a long lifetime and exceptional operational reliability;
a wide range of versions offers flexible connection solutions;
internationally standardized interface for global usage;
7/8" Series feature very high mechanical and electrical durability;

Main Applications

Machine building
Factory automation and fieldbus module
Material handling
Automotive

Electrical Characteristics

Voltage withstand：230VAC/DC |600 VAC/DC
Rated Voltage: 600V
Rated Impulse Voltage: 2500V
Rated Current: 12 A
Volume Resistivity: ≤ 10 mΩ

Mechanical Characteristics

Tightening torque: 1.5 Nm
Mechanical Operation: > 100 Mating cycles
Pollution Degree: 3

Mechanical Characteristics

Ambient Temperature：-40℃to+90℃
Degree of Protection: IP67

Material

Material of Contact:
Contact Plating: Gold

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

A****n

7/8 connector, good cable length, very good quality

J****n

Perfect for my factory automation setup. The IP67 rating and gold-plated contacts ensure reliable connections even in dusty environments. Love the molded 1M cable—no fraying so far after months of use.

G****n

Solid build quality and exactly as described. The 5-pin male to female configuration worked right out of the box with our material handling equipment. Slightly stiffer coupling than expected, but very secure.

M****a

Used in an automotive testing rig—handles vibrations well thanks to the bayonet lock. Overmolded joints are tough, and the 12A rating is spot-on. Will buy again.

M****c

Good connector for industrial machines, but took a while to solder properly due to the shielded shell. Performance is solid once installed, though.

Impressive durability and meets global standards we need. The -40°C to +90°C range makes it ideal for outdoor factory modules. Great value for the specs.
