Part Number:EB-DRF-0038

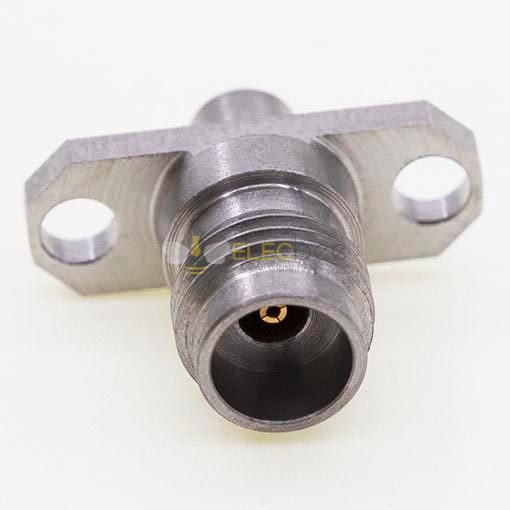

Description: 2.4mm Female Connector, 9.5mm / .375″ Square Bulkhead Flange Jack with Φ0.3mm / .012″ Pin Terminal.
This M4FM0503F02, 2.4mm 4-hole female connector with size 9.5mm / 0.375″ square bulkhead flange jack and Φ0.3mm / .012inch pin terminal, frequency range from DC to 50GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~50GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
| Polarity | Standard |
| Interface | 2.4mm |
| Connector Type | Jack |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 4 Hole Flange |
| Attachment Method | Solder |
| Frequency Range | DC~50GHz |
| VSWR： | DC~50GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
