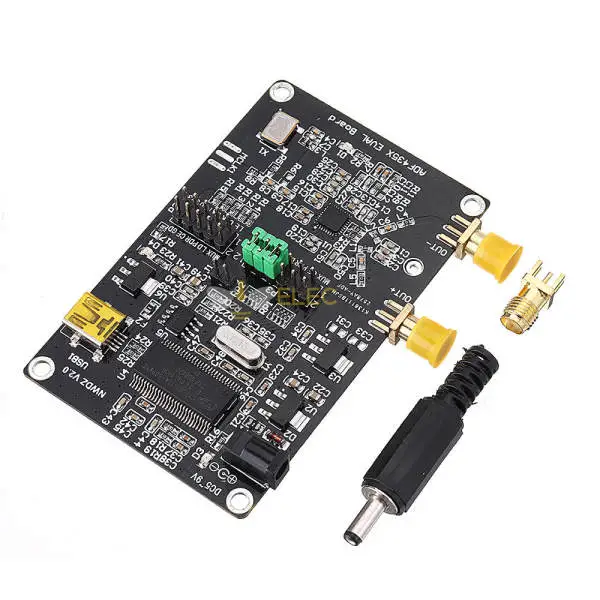

Elecbee ADF4350/ADF4351 Development Board 35M-4.4G Signal Source PC Software Control Point Frequency Hopping Sweep

SKU: EB0041761

Favorites

Key Features

Driver-free, support XP WIN7, WIN8, WIN10, 32 or 64 bit system.

1. Output frequency range: ADF4351: 35M-4.4G/ADF4350: 138M-4.4G

2. Power supply mode: DC002 interface DC4-9V typical 5V power supply

3. Refer to the ADI official evaluation board line and layout

4. Output signal: 2.2-4.4G fundamental wave (sine wave), 35M-2.2G fundamental frequency division (square wave)

5. Output signal interface: SMA female

6. Default +-50ppm 25M imported active crystal oscillator. Provides PDF circuit diagram and STM32 test program.

7. Control mode: Three-wire SPI. Lead control pin and lock status pin. All functions can be realized, including point frequency, frequency sweep and frequency hopping, stepping can be 1K, low frequency stepping can be up to 0.1K, according to crystal To decide.

8. External MCU control interface for easy control

Specifications

Show Similar Products >

Attribute

Value

MCU/SoC Model

ADF4350/ADF4351 35M-4.4G Signal

CPU Architecture

TIONIMAGE0

Memory

Raspberry Pi OS/Linux

Show Similar Products >

Description

Package includes:

1 x Board

ADF4350ADF4351-Development-Board-35M-44G-Signal-Source-PC-Software-Control-Point-Frequency-Hopping-S-1502161
