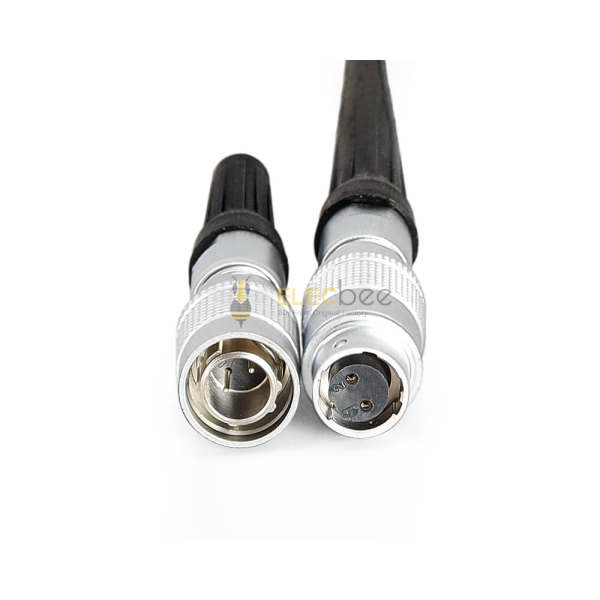

Elecbee Avation Connector YC8 Series 2 Pin Female Male Docking Push-Pull Quick Lock For Cable

SKU: EB-040-0019
Favorites
Key Features

Features:

  • YC8 series aviation connector, Straight, Solder Cup, 2 Pin,  Male female docking, For cable
  • Termination Type: Solder Type
  • Shell Material: Chrome-plated brass
  • Contact Material: Copper Gold Plating
  • Coupling: Pull-push quick lock Connection
  • Temperature Range: -20 ℃ ~ +70 ℃
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
2 Pin
Operating Temperature
-20℃~+70℃
Rated Current
2A
Rated Voltage
250VAC
Connector Series
YC8
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Brass
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PPS
Insulation Color
Black
