Note: Since the battery cannot be shipped, the battery is not included when shipped, please pay attention before buying.
This is a typical intelligent control system. It is an ideal platform for automatic theory learning. It can open source all the core control codes. It is a desktop learning product with good cost performance and can also be used as an advanced desktop decoration. When the voltage is too low, the system will automatically turn off the motor. Provide source code and schematic diagram, attitude and code disk related data can be output to our PC through the data line, and can be imported into Matlab and other software for further analysis.
| Model | Single point balanced block | One side balanced block | Reversible one side balanced block |
| Controller | STM32F103RCT6 | STM32F103C8T6 | |
| Weight | 1.5kg | 0. 63kg | 0. 84kg |
| Size | 148*148*148mm | 110*1丨0*94mm | 125*105*123mm |
| Battery | Two 3S 550mah (not includes) | One 3S 1300mAh (not includes) | One 3S 1300mAh (not includes) |
| Charger | B3 balanced charger | ||
| Balance function | Single point,unilateral balance | Unilateral balance | Unilateral balanced flip |
| Electric machinery | Brushless motor | Brush motor | Brush motor |
| Encoder | Photoelectric encoder | Mall encoder | Hall encoder |
| Display | 0.96 " OLED | ||
| Program download | Serial port one button download or SWD download | ||
| User key | 1 | ||
| LED lamp | 1 | ||
| Open source code | Full open source, including forward and inverse kinematics calculation code, control code, schematic diagram, etc., supporting PID parameters online adjustment and attitude information monitoring. | ||
Note: Since the battery cannot be shipped, the battery is not included when shipped, please pay attention before buying.
This is a typical intelligent control system. It is an ideal platform for automatic theory learning. It can open source all the core control codes. It is a desktop learning product with good cost performance and can also be used as an advanced desktop decoration. When the voltage is too low, the system will automatically turn off the motor. Provide source code and schematic diagram, attitude and code disk related data can be output to our PC through the data line, and can be imported into Matlab and other software for further analysis.

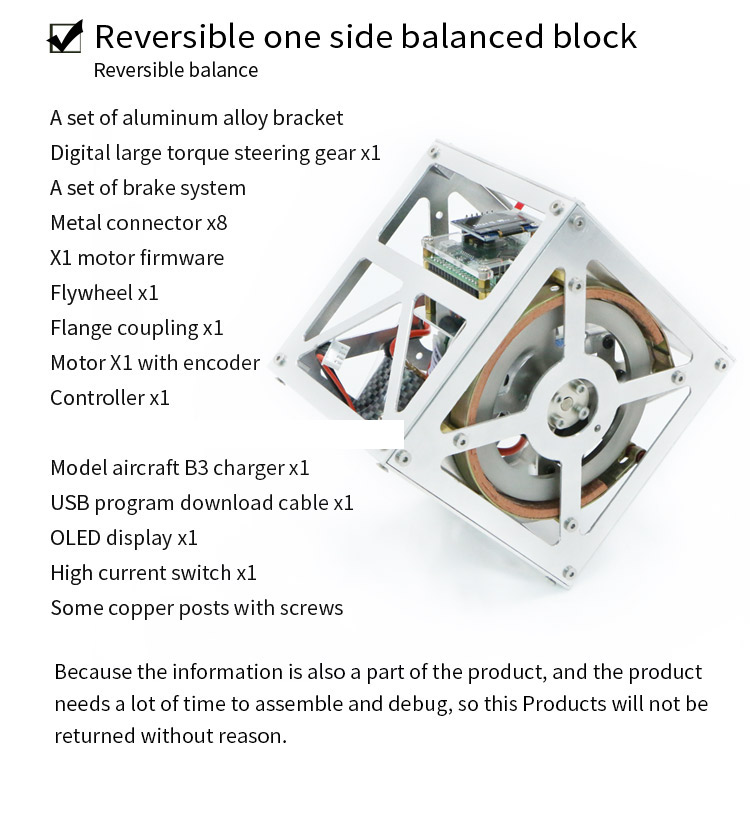

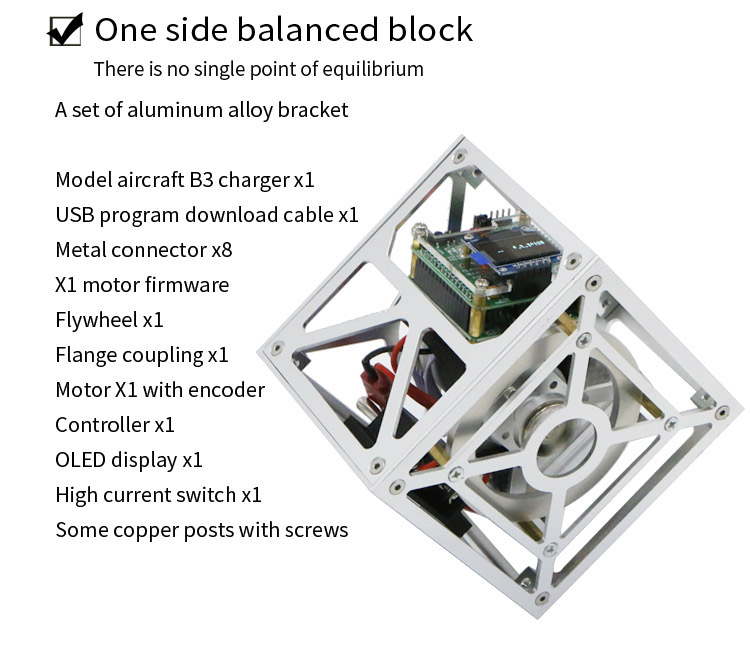

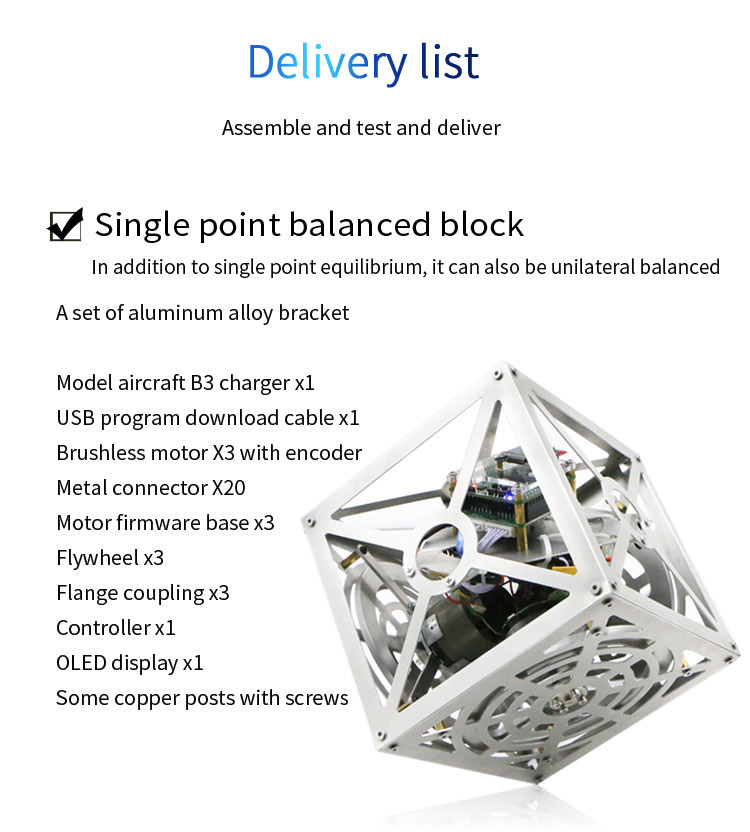

| Model | Single point balanced block | One side balanced block | Reversible one side balanced block |
| Controller | STM32F103RCT6 | STM32F103C8T6 | |
| Weight | 1.5kg | 0. 63kg | 0. 84kg |
| Size | 148*148*148mm | 110*1丨0*94mm | 125*105*123mm |
| Battery | Two 3S 550mah (not includes) | One 3S 1300mAh (not includes) | One 3S 1300mAh (not includes) |
| Charger | B3 balanced charger | ||
| Balance function | Single point,unilateral balance | Unilateral balance | Unilateral balanced flip |
| Electric machinery | Brushless motor | Brush motor | Brush motor |
| Encoder | Photoelectric encoder | Mall encoder | Hall encoder |
| Display | 0.96 " OLED | ||
| Program download | Serial port one button download or SWD download | ||
| User key | 1 | ||
| LED lamp | 1 | ||
| Open source code | Full open source, including forward and inverse kinematics calculation code, control code, schematic diagram, etc., supporting PID parameters online adjustment and attitude information monitoring. | ||
