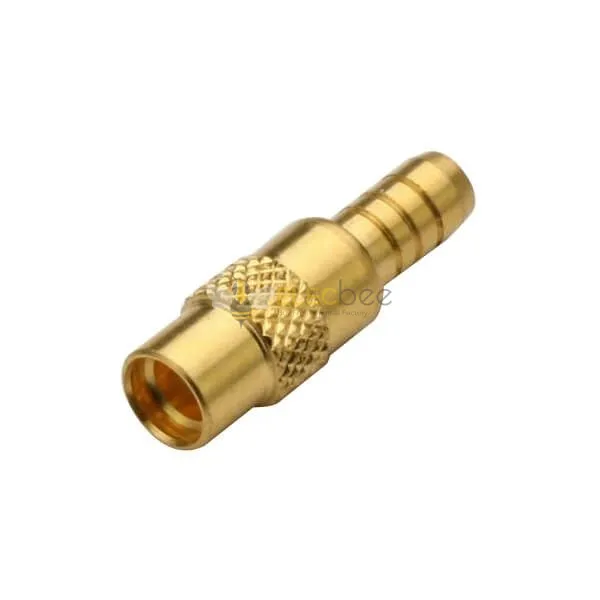

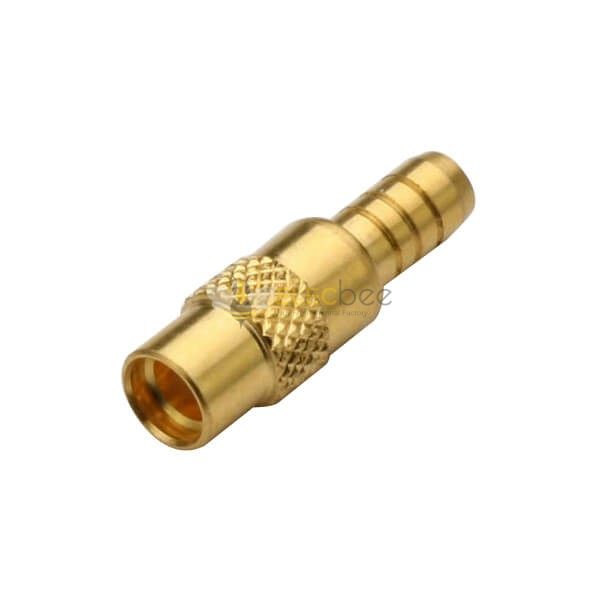

Elecbee Best MMCX Connectors Jack Straight Crimp Type for Cable RG178

SKU: EB-005-0013
Favorites
Key Features
  • Cable Connector, jack/female, Straight/180°, 50Ω, Crimp xa0Type,RG178;
  • Micro-miniature version of MCX with all features of MCX series conenctor.;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of MMCXxa0Connectors:

Consumer Electronic:xa0Smart phones GPS and wireless antennas,
Aerospace and Defense:xa0GPS
Technology:xa0Technology Devices
Telecommunications:xa0GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications:xa0Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial:xa0Computer connections-LAN/WAN


Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Suitable Cable
RG178
Connector Series
MMCX
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
