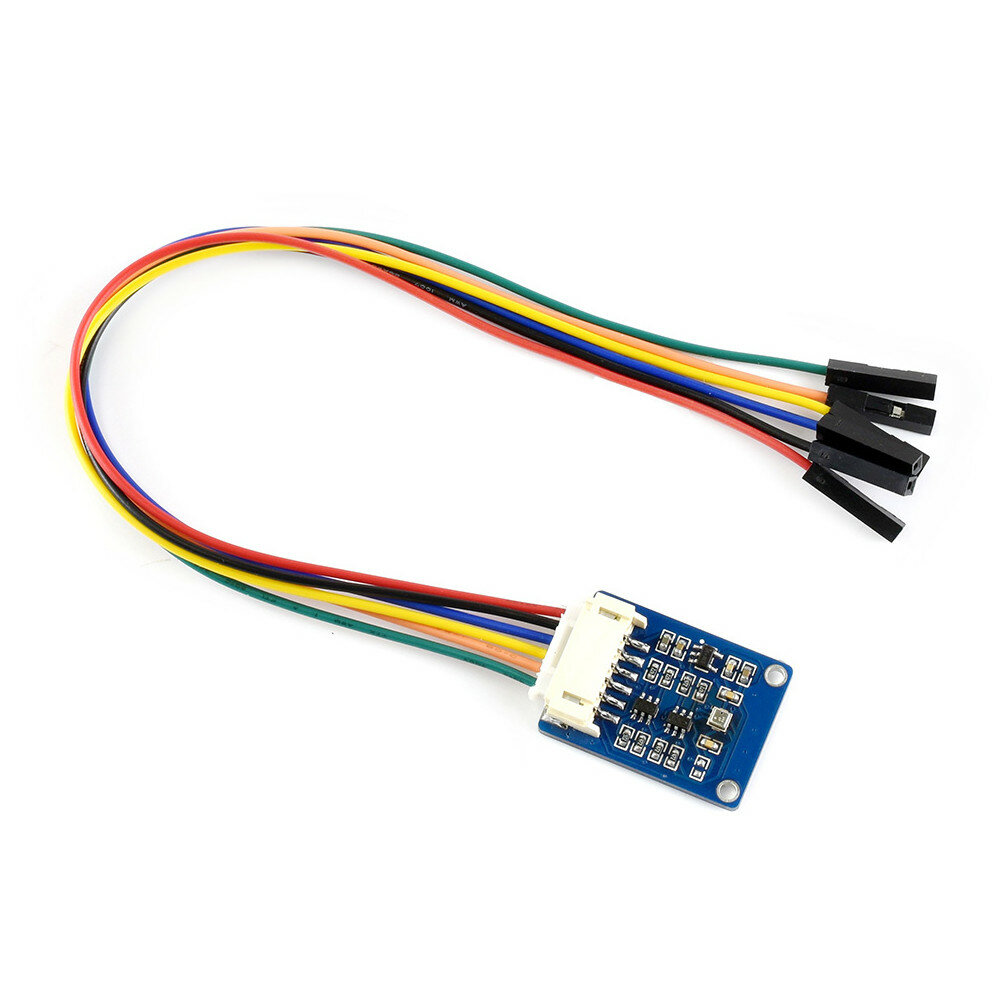

Elecbee BME280 Environmental Sensor Expansion Board Module Temperature/Humidity/Air Pressure
SKU: EB0044013
Favorites
Key Features
Product Features:
Supports I2C (default), configurable slave address
Supports SPI, switch to SPI via I/O setting
Onboard voltage level translator, compatible with 3.3V/5V operating voltage
Specifications:
Operating voltage: 3.3V/5V
Communication interface: I2C/SPI
Temperature sensing: -40~85°C (resolution 0.01°C, accuracy ±1°C)
Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy ±3%RH, response time 1s, delay ≤2%RH)
Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy ±1hPa)
Power consumption: <0.1mA@1Hz (H,P,T)
Dimension: 27mm x 20mm
Mounting hole size: 2.0mm
Pinouts:
| PIN | I2C | SPI |
| VCC | 3.3V/5V power supply | |
| GND | Ground | |
| SDA/MOSI | I2C data | SPI data master output/slave input |
| SCL/SCK | I2C clock | SPI clock input |
| ADDR/MISO | I2C address chip selection, high level (default) address: 0x77; low level address: 0x76 | SPI data master input/slave output |
| CS | NC | SPI chip selection, low active |
Show More
Datasheet
Description
Documents:
Overview:
A tiny sensor with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.
Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on.
Package includes:
1 x BME280 Environmental Sensor
