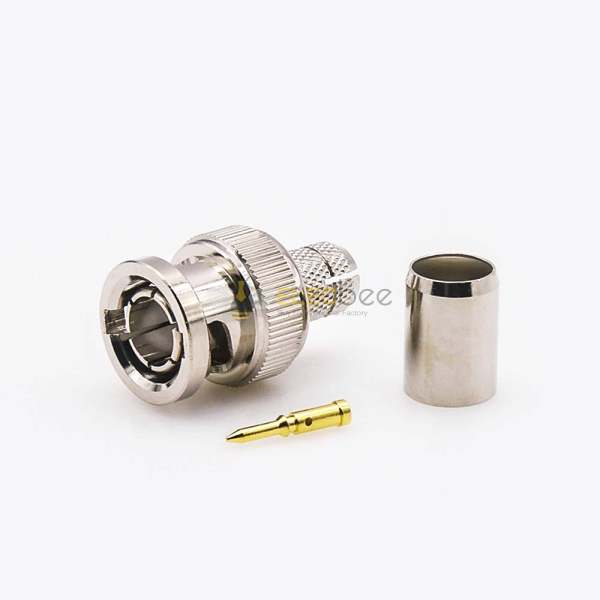

Elecbee BNC Connector Crimp Male Straight Cable Mount for RG6
SKU: EB-001-0324
Favorites
Key Features
- [Precision 75Ω Impedance] Specifically engineered for 75-ohm systems (Video, SDI, CCTV) to ensure minimal signal reflection and high-fidelity transmission up to 4GHz.
- [Gold-Plated Signal Integrity] Features a gold-plated center conductor (Au) with low contact resistance (≤1.5mΩ) for superior signal clarity and long-term oxidation resistance.
- [Industrial Grade Materials] Built with a nickel-plated brass body and premium PTFE (Teflon) insulation, providing high dielectric resistance (>5000MΩ) even in extreme conditions.
- [Rugged & Weatherproof] Tested for performance in temperatures from -45°C to +125°C, making it ideal for both indoor broadcast studios and harsh outdoor surveillance environments.
- [Industry Standard Compliance] Fully compliant with IEC60169-8 standards; rated for ≥500 mating cycles with a high dielectric withstanding voltage of ≥1500V RMS.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Crimp
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Impendance
75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
Description
The Elecbee 75 Ohm BNC Male Crimp Connector is a high-performance RF interface designed for professional video, telecommunications, and high-definition surveillance. Tailored for 75-4 coaxial cables, this connector provides a secure, permanent, and low-loss connection.
Technical Specifications:
- Standard: IEC60169-8 Compliant
- Impedance: 75 Ohm (True Video Impedance)
- Frequency Range: DC - 4GHz
- Center Contact: Gold-Plated Brass (Superior Conductivity)
- Insulator: High-Performance PTFE (Teflon)
- Working Voltage: ≤750V RMS
- Durability: ≥500 Mating Cycles
Engineered for High-Definition Video
Avoid signal artifacts and ghosting caused by mismatched impedance. This 75Ω BNC plug features a crimp-style termination that provides superior mechanical strength over twist-on connectors. The nickel-plated brass shell ensures durability against corrosion, while the gold-plated center pin maintains perfect electrical contact for SDI and high-res analog video signals.
