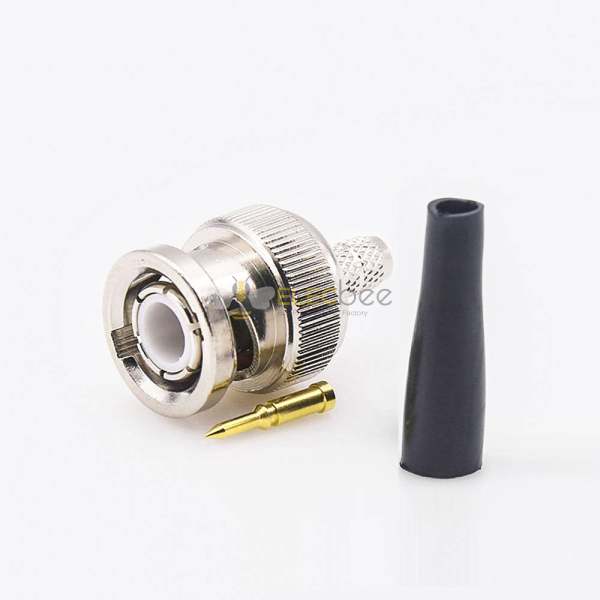

Elecbee BNC Male Connector, Straight Crimp for RG58/RG142 Cable, Nickel-Plated Copper, Gold-Plated Pin, 50 Ohm RF Interface
SKU: EB-001-0381
Favorites
Key Features
High-Signal Integrity: Precision-engineered with PTFE insulation and gold-plated contact pins for superior conductivity and low signal loss up to 4 GHz.
Professional Cable Compatibility: Specifically designed for reliable crimp termination with standard RG58 and RG142 coaxial cables.
Durable Industrial Build: Constructed with a high-quality nickel-plated copper shell to provide excellent corrosion resistance and mechanical strength.
Secure Bayonet Fastening: Features a classic bayonet coupling mechanism for rapid, vibration-proof connections in RF applications.
Versatile Impedance: Optimized for 50 Ohm systems, ensuring compatibility across a wide range of broadcast and telecommunication equipment.
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Nickel Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
Description
Ensure a stable, low-noise connection for your radio frequency applications with our Elecbee BNC male connector. Designed specifically for RG58 and RG142 coaxial cables, this connector provides a durable, high-performance interface that minimizes signal degradation, making it ideal for CCTV, broadcast, and industrial testing environments.
This straight-mount connector utilizes a crimp termination method to ensure a tight, long-lasting mechanical bond with your cable. Technical specifications include:
- Connector Series: BNC Male
- Frequency Range: Up to 4 GHz
- Material: Nickel-plated copper shell with gold-plated contact
- Insulation: PTFE (Teflon)
- Mounting: Cable mount (crimp)
The BNC bayonet fastening system allows for quick, positive locking and unlocking without the need for tools, facilitating efficient maintenance and system reconfiguration. With a robust copper construction and high-grade insulating materials, this connector is built to withstand the rigors of frequent use in professional electronic setups.
