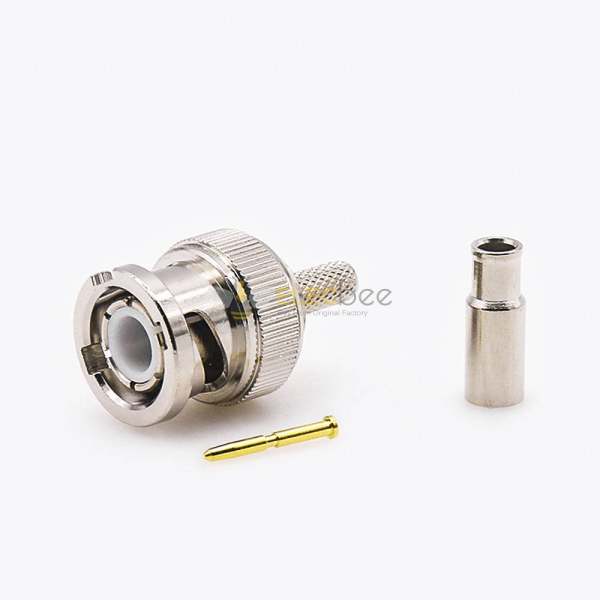

Elecbee BNC Connector Male Straight Crimp Solder Type for RG174 RG316 Cable, 50 Ohm Nickel Plated Copper RF Coaxial Connector, Standard RF Plug
SKU: EB-001-0369
Favorites
Key Features
Universal RF Compatibility: Precision-engineered for RG174 and RG316 coaxial cables, ensuring seamless integration into existing cable assemblies.
High-Efficiency Signal Transfer: Features a 50 Ohm impedance rating with nickel-plated copper construction for low signal loss and superior conductivity.
Space-Saving Compact Design: The streamlined straight profile requires minimal installation space, ideal for high-density panels and compact electronic housings.
Quick-Connect Security: Equipped with an easy-to-use bayonet coupling mechanism for fast, reliable connection and disconnection in professional environments.
Multi-Industry Application: Versatile build quality suitable for CCTV, Antennas, Satcom, Broadcast, and high-definition CATV/HDTV systems.
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Nickel Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
Description
The Elecbee BNC Male Connector is the professional solution for creating reliable, high-performance RF cable assemblies. In demanding signal environments, loose or poorly shielded connections lead to data loss; this connector solves that with a secure crimp and solder termination designed specifically for thin-profile cables. Its compact straight design allows for easy installation in tight spaces where traditional connectors struggle to fit.
Constructed from high-grade nickel-plated copper, this connector is built for durability and long-term corrosion resistance. It maintains a consistent 50 Ohm impedance, making it perfect for precision instrumentation, telecommunications, and CCTV surveillance setups. The standard bayonet coupling ensures a quick-connect/disconnect experience without sacrificing mechanical stability.
- Body Material: Nickel-Plated Copper
- Connector Type: BNC Male Straight
- Compatible Cables: RG174, RG316, LMR100
- Mounting Type: Crimp and Solder
This standard RF connector meets the rigorous requirements of the automotive, broadcast, and satellite communication industries. Whether you are wiring a base station or repairing laboratory oscilloscope leads, the Elecbee BNC connector provides the industrial-grade shielding and mechanical integrity required for high-frequency video and data transmission.
