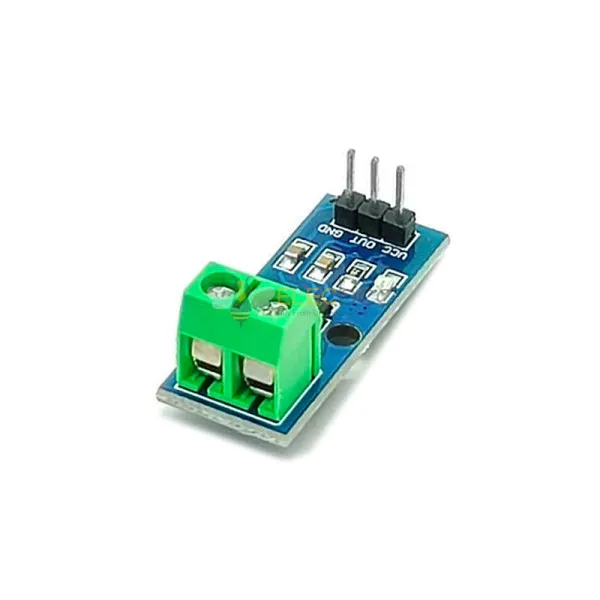

Current Sensor Module ACS712 Module 5A 20A 30ACurrent Sensor Module 5A/20A/30A ACS712

SKU: EB0043761

Favorites

Key Features

Features:

Versatile Current Ranges: This ACS712 module offers multiple current range options (5A, 20A, 30A), allowing you to choose the most suitable one for your specific application. Whether it's for small - scale electronic devices or larger electrical systems, it can accurately detect the current.
Convenient Power Supply: With a 5V pin power supply and an on - board power indicator, it's easy to set up and monitor the power status. You can quickly determine if the module is working properly just by checking the indicator light.
Unique Output Characteristic: When there is no test current, the output voltage is VCC / 2. This feature provides a clear reference point and simplifies the analysis of the current detection results, making it more user - friendly.
Compact Design: The PCB board size of 31mm x 13mm makes it highly compact. It can be easily integrated into various projects, especially those with limited space, without taking up too much room.
Hall - Based Testing Principle: Based on the Hall test principle, this module offers reliable and accurate current detection. It can effectively sense the magnetic field generated by the current, ensuring high - precision measurement in different environments.

Description

>>>Manual: Click here to open<<<

The current sensor chips: ACS712ELC-5A / ACS712ELC-10A / ACS712ELC-20A;

Pin 5V power supply, on-board power indicator;

No test current through the output voltage is VCC / 2;

PCB board size: 31 (mm) x13 (mm);

Note:

ACS712 is based on the principle of the Hall test, please use this field to avoid impact

1 x 5A /10A / 20A Current Sensor Module ACS712T
