Elecbee DB9 Female Connector Right Angle (PCB Mounting)
SKU: EB-600-0071
Favorites
Key Features
- Right-angle PCB mount design saves space.
- Gold-plated contacts ensure reliable connectivity.
- Toolless installation for easy setup.
- Compatible with CAT5E network standards.
- Unshielded single port RJ45 jack for 8P8C.
Show More
Description
Description

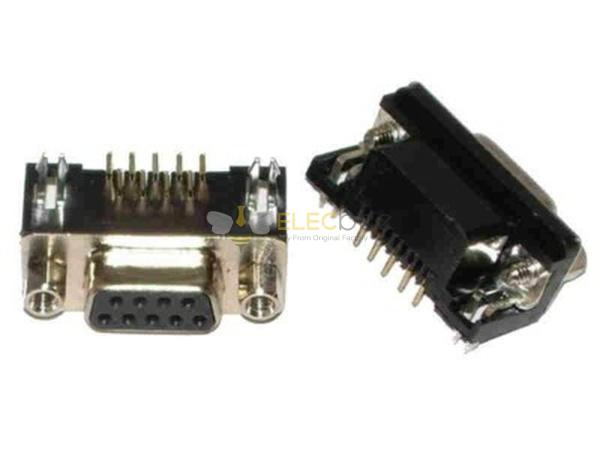

This is DB9 Female type Right Angle connector for PCB Mounting. It can be easily soldered on PCB and can be used for serial comunication.
The DB9 (originally DE-9) connector is an analog 9-pin plug of the D-Subminiature connector family (D-Sub or Sub-D).
The DB9 connector is mainly used for serial connections, allowing for the asynchronous transmission of data as provided for by standard RS-232 (RS-232C).
Note that there are DB9-DB25 adapters for easily converting a DB9 plug into a DB25, and vice versa.
Pins
| Pin number | Name | |
|---|---|---|
| 1 | CD - Carrier Detect | |
| 2 | RXD - Receive Data | |
| 3 | TXD - Transmit Data | |
| 4 | DTR - Data Terminal Ready | |
| 5 | GND - Signal Ground | |
| 6 | DSR - Data Set Ready | |
| 7 | RTS - Request To Send | |
| 8 | CTS - Clear To Send | |
| 9 | RI - Ring Indicator | |
| Shield |
