Elecbee DC 9V Photoelectric Smoke Sensor Module Smoke Detector Smoke Sensor Probe Module

SKU: EB0043230

Favorites

Key Features

Datasheet

EB0043230

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

ME0010

Show Similar Products >

Description

>>>Manual: Click here to open<<<

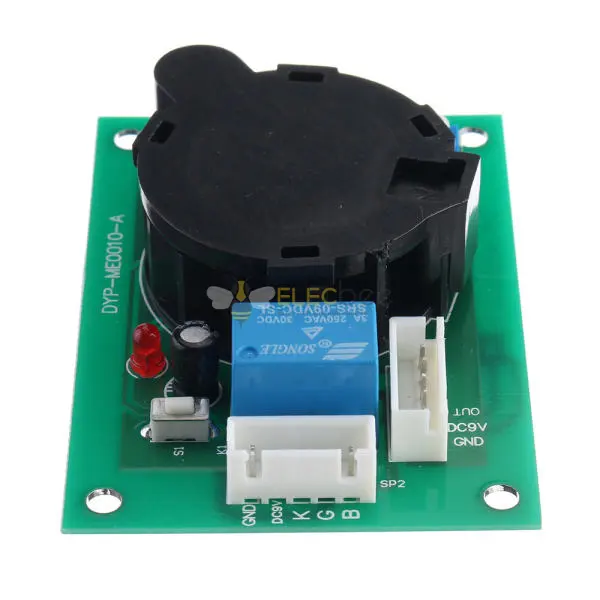

Photoelectric Smoke Sensor Module

Size: 70mm X50mm X20mm

The main chip: smoke sensor probe

Working voltage: 9V DC

Characteristics:

1, with relay control output;

2, the operating current is small, the power consumption is low, the induction current is 30mA, the standby current: 10uA;

3, with the level of the signal output can be effectively controlled by the alarm; 4, a copy of the power supply can be directly used DC9V battery;

5, the sensitivity is high, the rate of false alarm is very low;

6, effective insect resistance, anti dust, anti light effect, long service life;

7, large detection area, convenient installation

Application:

Suitable for household family or commercial indoor smoke detection.

Module wiring label instructions:

GND— the cathode of a power supply

VCC— the positive power supply

OUT— signal output port default low level (detected smoke output high level)

K — Chang Kaiduan relay output

G — relay output

B — the normally closed relay output terminal

Test method:

1, press the test button 3S light starts flashing relay, often start and end connected to the public.

2, the smoke blew into the maze, 3S light starts flashing relay, relay often start and the common end connected.

Package including:

1 x Smoke Sensor Module Relay Output Smoke Detector Sensor Switch Module

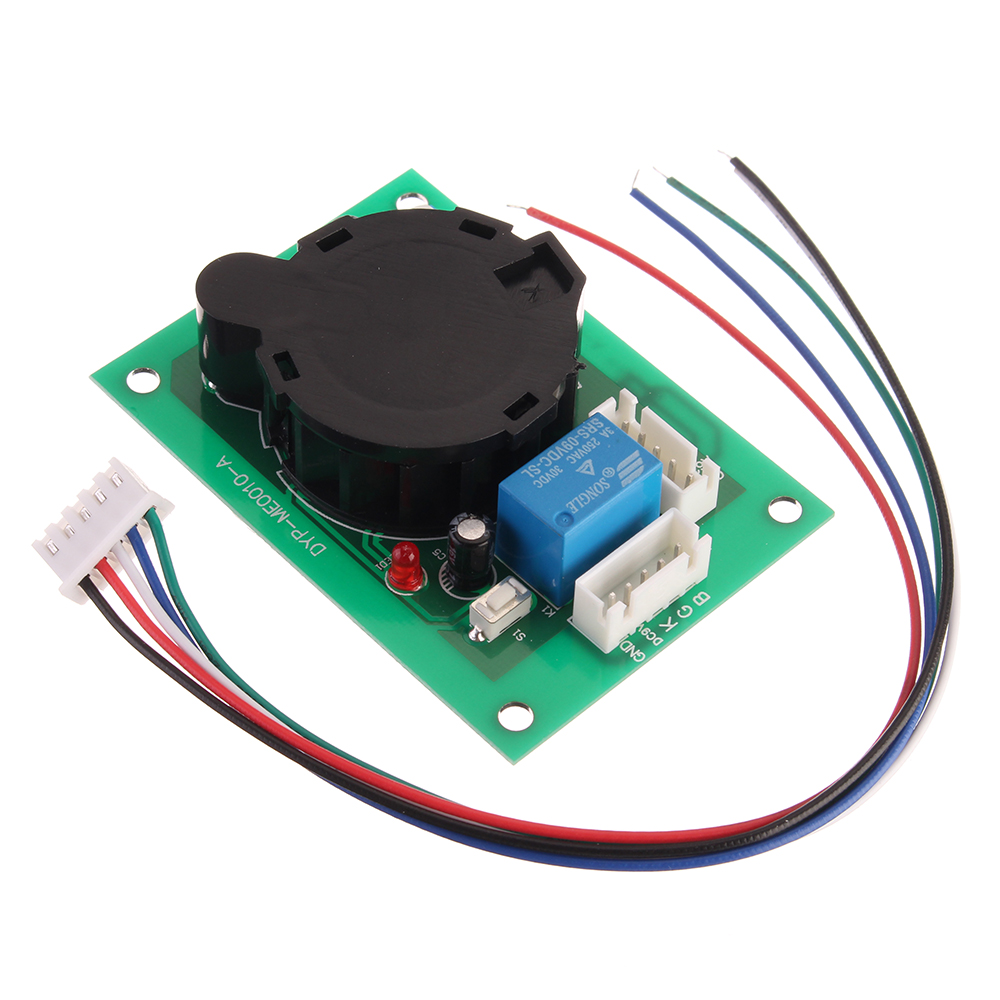

DYP-ME0010A-Smoke-Sensor-Module-Relay-Output-Smoke-Detector-Sensor-Switch-Module-Sensitivity-Adjusta-1695920
