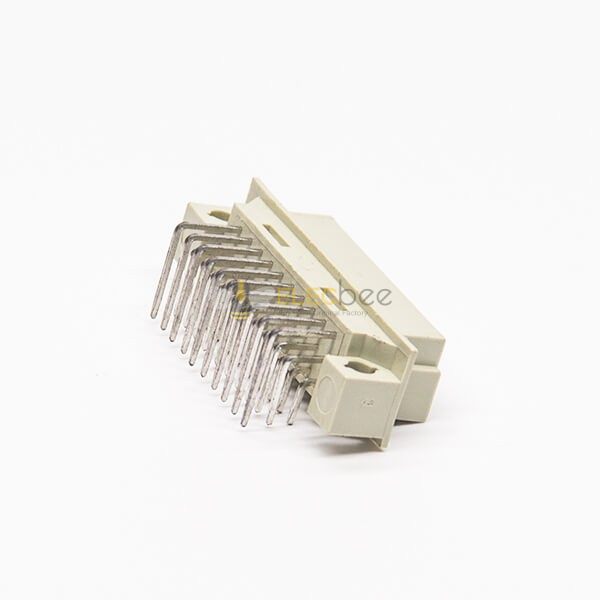

Elecbee Din 41612 Connector Types 30 Pin Right Angle A+B+C 3 Rows Pcb Mount Female Panel Receptacles

SKU: EB-608-0014
Favorites
Key Features

Features:

  • DIN41612,Panel Receptacles,Female,Right Angle,PCB Mount,Through Hole,Solder Type,30 Pin,A+B+C Three Rows
  • conforming to DIN 41612 and IEC 603-2 specifications.
  • Available up to 3 rows and 96 positions with Solder,Press-fit and pin-in Paste terminations.
  • Commonly used to carry audio and video signals.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Applicationxa0

  • Switching/Routing、Enterprise、Transmission
  • Home Entertainment、White Goods、Phones
  • Servers、Personal Computing、Peripheral Device
  • Technology、Lighting、Process Control
  • Transportation、Instrumentation、Vehicle Electronics、Energy Transmission/Distribution Control
Show More
Attribute
Value
Connector Type
Jack
Number of Rows
3
Mounting Type
Panel Mount
Termination
Solder
Number of Positions
30 Pin
Contact Finish
Gold Plated
Pitch
2.54mm
