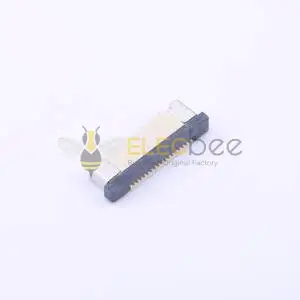

Elecbee FPC Connector - 0.5mm Pitch, 17 Pin, Contacts, Bottom, Slide Lock, Surface Mount, Right Angle, Tin Plated
SKU: EB-0.5K-AX-17PWBG
Favorites
Key Features
17 Pin positions with 0.5mm pitch spacing
Contacts, Bottom tin plated contacts for optimal connectivity
Slide Lock locking mechanism for secure connection
Surface Mount, Right Angle mounting for easy installation
Rated for 0.4A current and 50V voltage operation
Contacts, Bottom tin plated contacts for optimal connectivity
Slide Lock locking mechanism for secure connection
Surface Mount, Right Angle mounting for easy installation
Rated for 0.4A current and 50V voltage operation
Show More
Specifications
Attribute
Value
Search
Connector Type
Contacts, Bottom
Mounting Type
Surface Mount, Right Angle
Termination
Solder
Number of Positions
17 Pin
Operating Temperature
-20℃~+85℃
Rated Current
0.4A
Rated Voltage
50V
Packing
Tube
Contact Material
Phosphor Bronze
Contact Finish
Tin Plated
Insulating Materials
LCP
Pitch
0.5mm
FFC, FCB Thickness
0.3mm
Locking Feature
Slide Lock
Height Above Board
2mm
Actuator Material
LCP
Description
Professional 17 Pin 0.5mm pitch FPC connector with contacts, bottom, slide lock locking, tin plated contacts, surface mount, right angle mounting. Rated for 0.4A current and 50V voltage. Ideal for flexible printed circuit applications.
