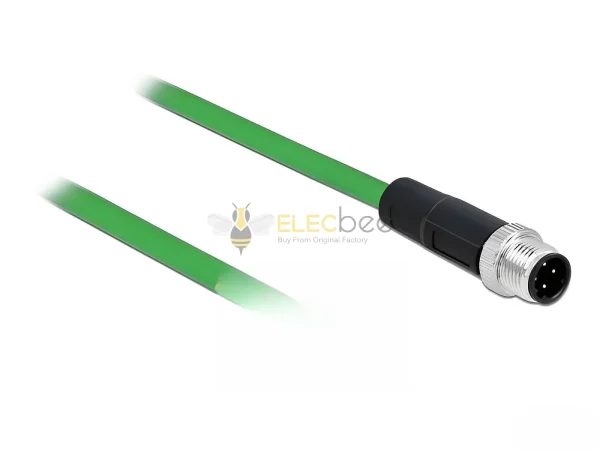

Elecbee Network cable M12 D-coded 4 pin male to male TPU 1 m

This industrial Ethernet cable by Elecbee can be used to connect various components with M12 connectors, e.g. for machine control or automation. Durable TPU cable jacket The material of the cable jacket makes the cable flexible and durable, making it suitable for use in drag chains and harsh environments. The cable is oil and UV resistant and meets the high requirements for industrial applications. Technical details Connectors:   1 x M12 male D-coded 4 pin   1 x M12 male D-coded 4 pin PROFINET specification Pin assignment according to PROFINET standard Suitable for drag chains SF/UTP Shielding: aluminium foil, transparent foil, tinned copper braiding Tinned copper conductors Cable gauge: 22 AWG Cable diameter: ca. 6.5 mm Cable jacket material: PUR (TPU) Max. number of bending cycles: 3,000,000 Smallest bending radius:   32.50 mm with fixed installation   48.75 mm with flexible installation Oil-resistant according to DIN EN 60811-2-1 UV-resistant LS0H (halogen-free) Flammability class: FT2 Operating temperature: -40 °C ~ 70 °C Protection class: IP67 Colour: green Length incl. connectors: ca. 1 m System requirements A free M12 female port Package content Patch cable Package Zip poly bag
