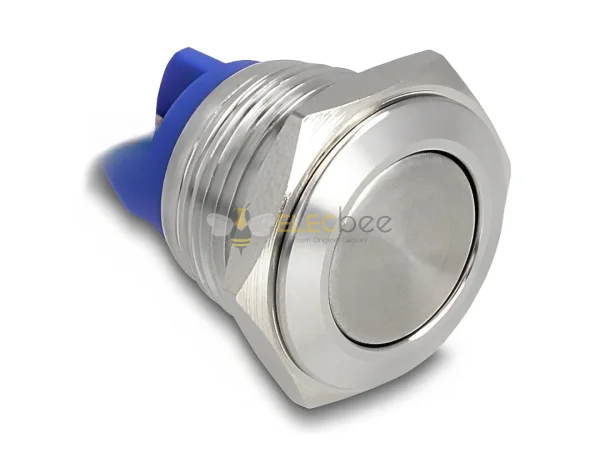

Elecbee Push Button for Installation 16 mm 2 x Screw Terminal actuator flat

Name: Elecbee Push Button for Installation 16 mm 2 x Screw Terminal actuator flat
Brand: Elecbee
SKU: EB22036
Price: 8.77 USD
Availability: InStock
Rating: 0 (0 reviews)

SKU: EB22036

Favorites

Key Features

Premium standard push button with 2 x Screw Terminal actuator flat for secure and reliable electrical connections in industrial applications
Compact 16 mm design with M16 thread mounting, ideal for space-constrained control panels and machinery
IP65 rated waterproof and dustproof construction ensures optimal performance in harsh industrial environments from -25°C to 55°C
Exceptional durability with 1,000,000 mechanical cycles and 100,000 electrical cycles for long-term reliability in demanding applications

Specifications

Show Similar Products >

Attribute

Value

Mounting Type

Screw Mount

Operating Temperature

-25℃~+55℃

Ingress Protection

IP65

Show Similar Products >

Description

Overview Description This push button by Elecbee is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways. Button A so called button, or push button, returns to its initial position after being pressed. Opener and closer The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them. Technical details Connectors: 2 x screw terminal Switch type: 1 closer (NO) Load limit: AC 230 V~ / 3 A Number of contacts: 2 Number of open contact: 1 Function: momentary Actuator: flat Operating temperature: -25 °C ~ 55 °C Mounting hole diameter: ca. 16 mm Hexagon nut spanner width: 19 mm Mounting depth: ca. 20 mm Thread size: M16 Material: stainless steel nickel plated Mechanical life: 1,000,000 cycles Electrical service life: 100,000 cycles Protection class: IP65 Dimensions (LxD): ca. 21.5 x 19.0 mm Package content Push-button Package Zip poly bag
