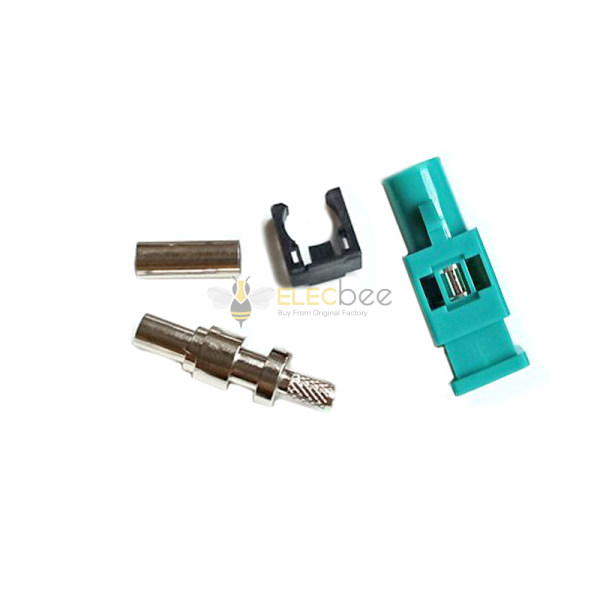

Elecbee Universal Fakra Z Male RF Coaxial Connector, 50 Ohm Solder Plug for RG174 RG316 Pigtail Cable, Water Blue Automotive GPS Antenna Plug
SKU: EB-014-0079-C
Favorites
Key Features
- Universal Fakra Z Compatibility: The "Water Blue" Z-Code is universal and neutral-keyed, allowing it to mate with all other Fakra color-coded connectors.
- Precision RF Performance: Optimized for 50 Ohm impedance, ensuring low signal loss for GPS navigation, telematics, and cellular applications.
- Versatile Cable Support: Designed specifically for soldering onto industry-standard RG174 and RG316 high-flex pigtail coaxial cables.
- Secure Locking Mechanism: Features the standard Fakra mechanical housing with a secondary locking clip for high-vibration automotive environments.
- Industrial Grade Materials: Manufactured with high-quality brass and durable plastic housing to meet stringent automotive communication standards.
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Nickel Plated
Features
Z Coded
Impendance
50 Ohms
Frequency Max
6 GHz
Suitable Cable
RG174, 316
Connector Series
Fakra
Color
Water Blue
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PA66+GF
Contact Material
Brass
Insulating Materials
PTFE
Description
Upgrade or repair your automotive communication systems with the Elecbee Universal Fakra Z Male RF Connector. Known in the industry as the "Universal Key," the Water Blue Fakra Z housing is designed to be compatible with every other Fakra connector type (A, B, C, D, etc.). This makes it the perfect solution for technicians and DIYers who need a reliable, "fit-all" connector for GPS navigation systems, satellite radio, and cellular boosters.
This 50 Ohm RF connector is engineered for high-frequency signal stability. It is a solder-type plug specifically tailored for RG174 and RG316 coaxial cables, which are the standard for tight automotive wire routing. Technical highlights include:
- Connector Type: Fakra Z (Male Plug).
- Color Code: Water Blue (Neutral/Universal).
- Impedance: 50 Ohm for optimal RF signal integrity.
- Application: GPS, GSM, Infotainment, and Wireless Telematics.
- Assembly: Solder-on center pin for a permanent, low-resistance connection.
Whether you are building a custom antenna pigtail or replacing a damaged factory plug, the Elecbee Fakra Z Connector offers the automotive-grade durability required for modern vehicles. Its robust locking interface ensures that your GPS antenna remains connected even in extreme temperatures and under constant road vibration.
