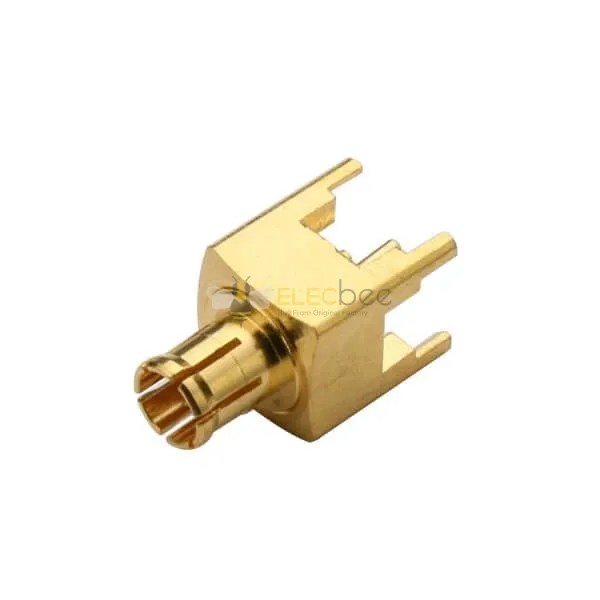

Elecbee MCX Connector Straight Plug Through Hole for PCB

SKU: EB-004-0014

Favorites

Key Features

Pcb Mount,Straight/180°, 50Ω,plug/male, Through Hole;
30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
Snap-on Interface ideal for quick Installation and discount;
High cost-effective with excellent boardband performance and low reflections.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of MCXxa0Connectors:

Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

H****t

Perfect for my GPS module project. The straight plug fits neatly on the PCB, and the gold-plated contacts ensure solid connectivity. Love how small it is—saves so much space!

N****a

Good quality MCX connector. Snap-on interface makes assembly fast, and it handles up to 6 GHz without issues. Slight improvement over SMB in size and performance.

N****n

Exactly as described. 50Ω impedance stable across frequency, and the Teflon insulator stands up well to temperature swings. Great value for precision RF work.

J****N

Works fine for wireless-LAN applications. Connector is tiny and sturdy, but be careful during soldering—through-hole pins can shift if not held right.

G****l

Used in a telemetry setup—excellent signal integrity and low reflection. The 100% money-back guarantee made trying them risk-free. Will buy again.
