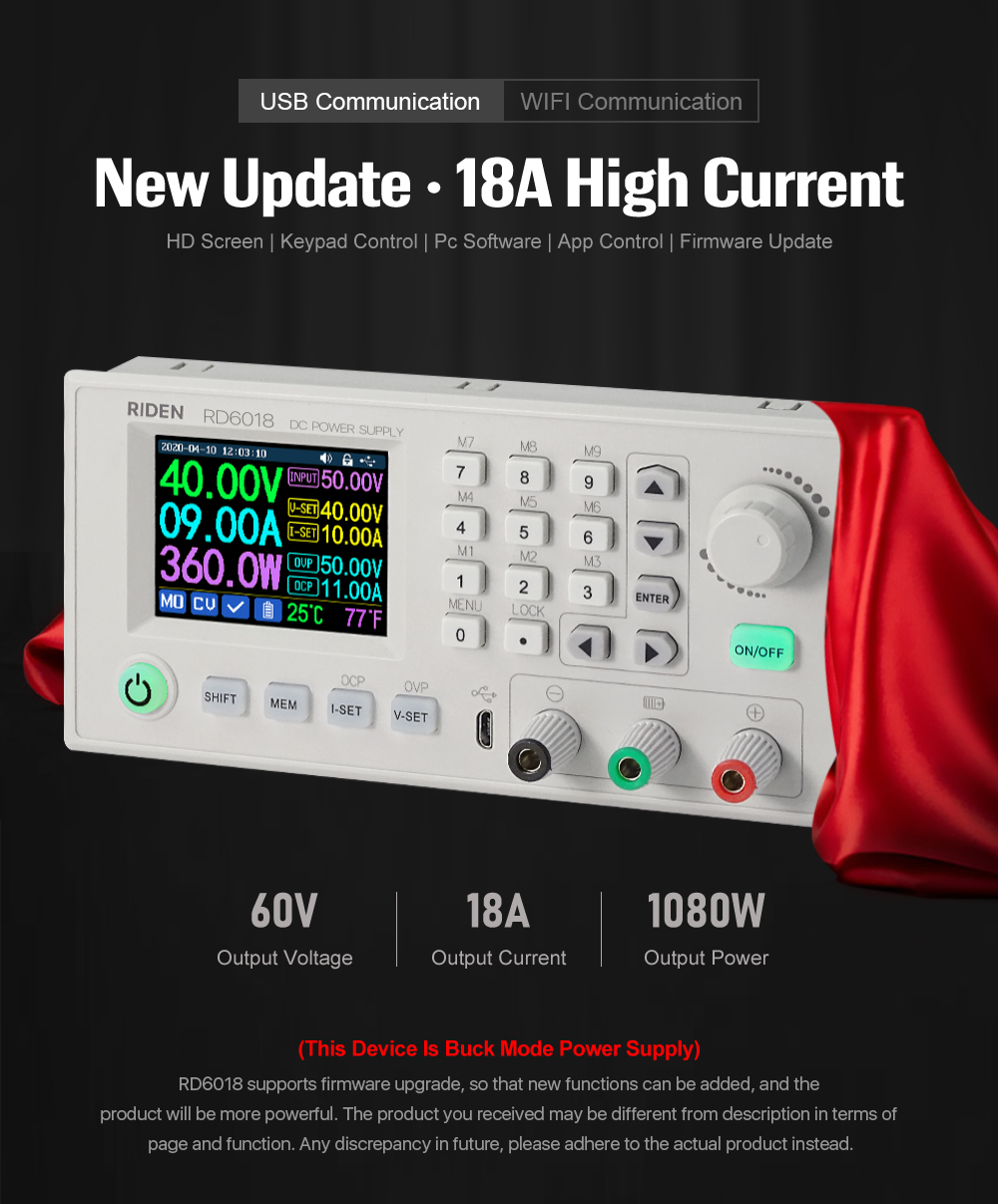

Elecbee FULL KIT RD6018 RD6018W USB WiFi DC to DC Voltage Step Down Power Supply Module Buck Converter Voltmeter Multimeter 60V 18A 1080W

Precise details:

Note before buying:

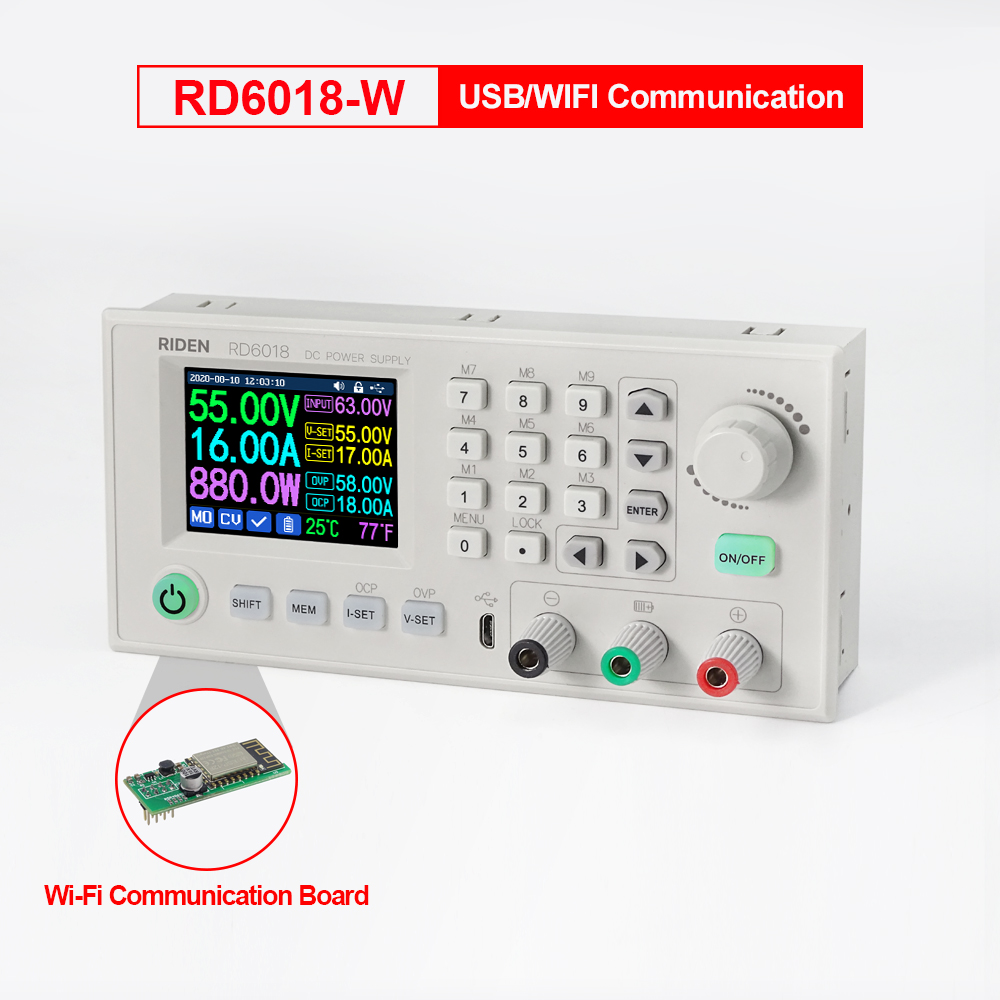

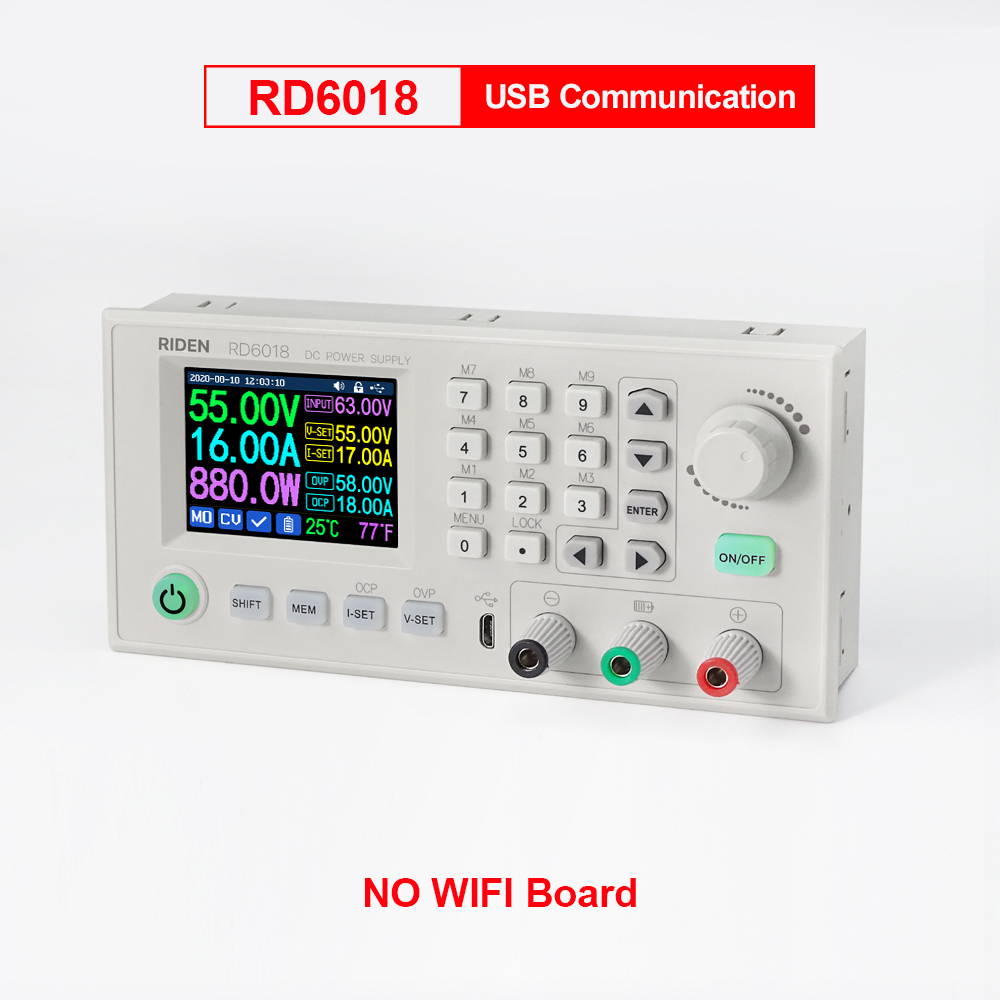

1. RD6018 series has two versions: RD6018 and  RD6018-W,RD6018-W have WIFI board , RD6018 don't have . RD6018-W can use WIFI board to connect APP, also use USB micro cable to connect PC solftware . RD6018 don't have WIFI board, only support PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.

Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support,  and we will decide whether to keep this function based on customer feedback.



2. For PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above. For APP and PC software, because there may be  incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.

Technical parameters:



Model	RD6006 (1587151)	RD6006-W (1587151)	RD6012 (1687705)	RD6012-W (1687705)	RD6018	RD6018-W
Input voltage range	6-70.00V
Output voltage range	0-60.00V

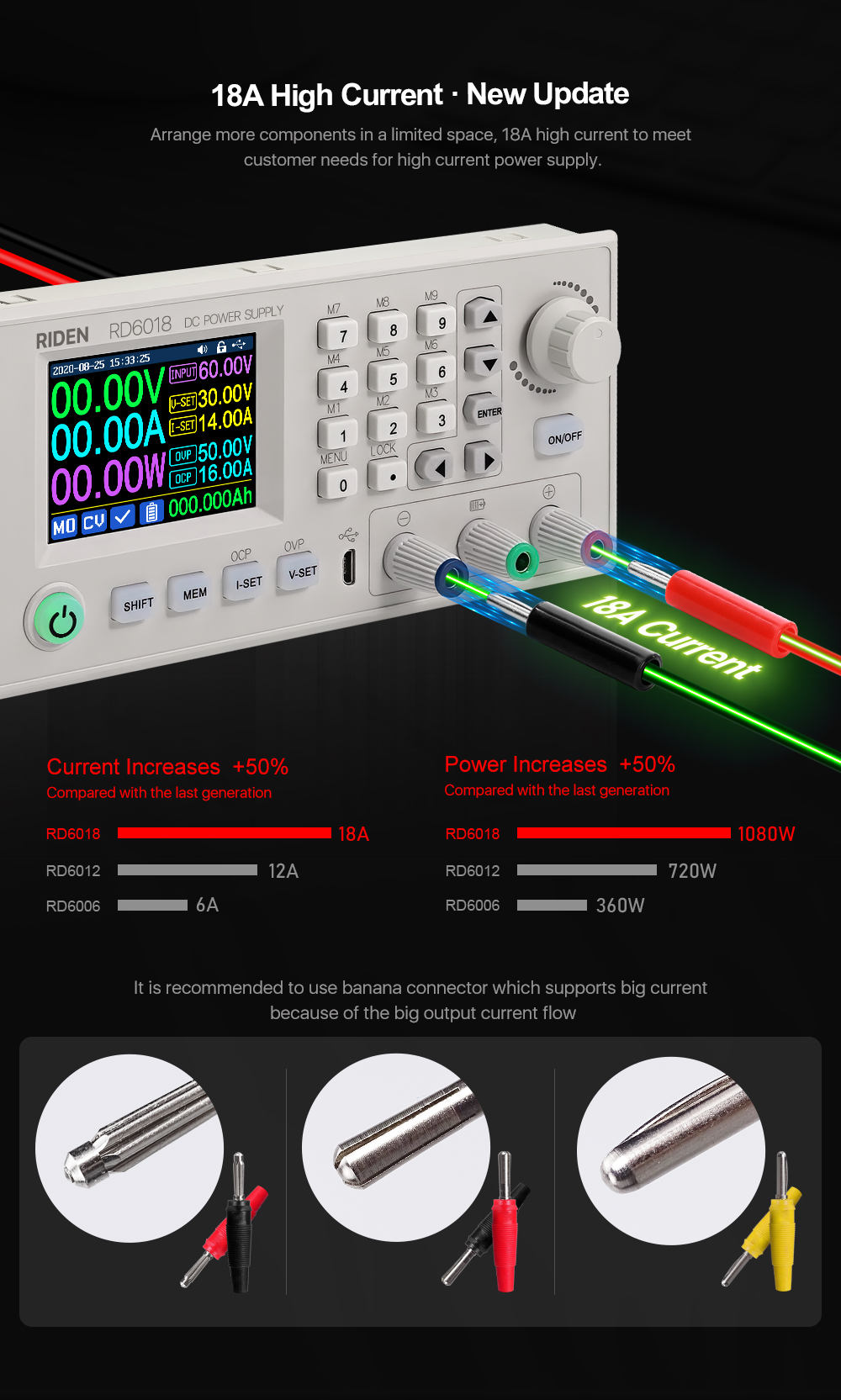

Output current range	0-6.000A		0-12.00A		0-18.00A
Output power range	0-360W		0-720W		0-1080W
Input voltage measurement resolution	0.01V
Output voltage setting measurement resolution	0.01V
Output current setting measurement resolution	0.001A		0.01A
Battery voltage measurement resolution	0.01V
Input voltage measurement accuracy	±(1%+5 digits)
Output voltage accuracy between setting and measurement	±(0.3%+3 digits)
Output current accuracy between setting and measurement	±(0.5%+5 digits)
Battery voltage measurement accuracy	±(0.5%+3 digits)
Automatic cut off current value when charging	10mA		100mA
Output ripple typical	100mV VPP		250mV VPP@6A
Working temperature range	-10℃~40℃
External sensor Temperature detection range:	-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:	±3℃/±6℉
Constant voltage mode response time	2ms（0.1A-5A Load）
Constant voltage mode load regulation	±(0.1%+2 digits)
Constant current mode load regulation	±(0.1%+3 digits)
Capacity measurement range	0-9999.99Ah
Energy measurement range	0-9999.99Wh
Capacity and energy statistical error	±2％
Buck working mode	Voltage drop >1V and >10%
Cooling fan start condition	Output voltage>40V or Output current>4A or System temperature>45℃		Output current>8A or System temperature>45℃
Cooling fan shut down condition when working	Output voltage <40V and Output current <3.9A and System temperature <45℃		Output current <7.9A and System temperature <45℃
Over temperature protection	System temperature >80℃
Screen brightness setting	0-5(6 level in total)

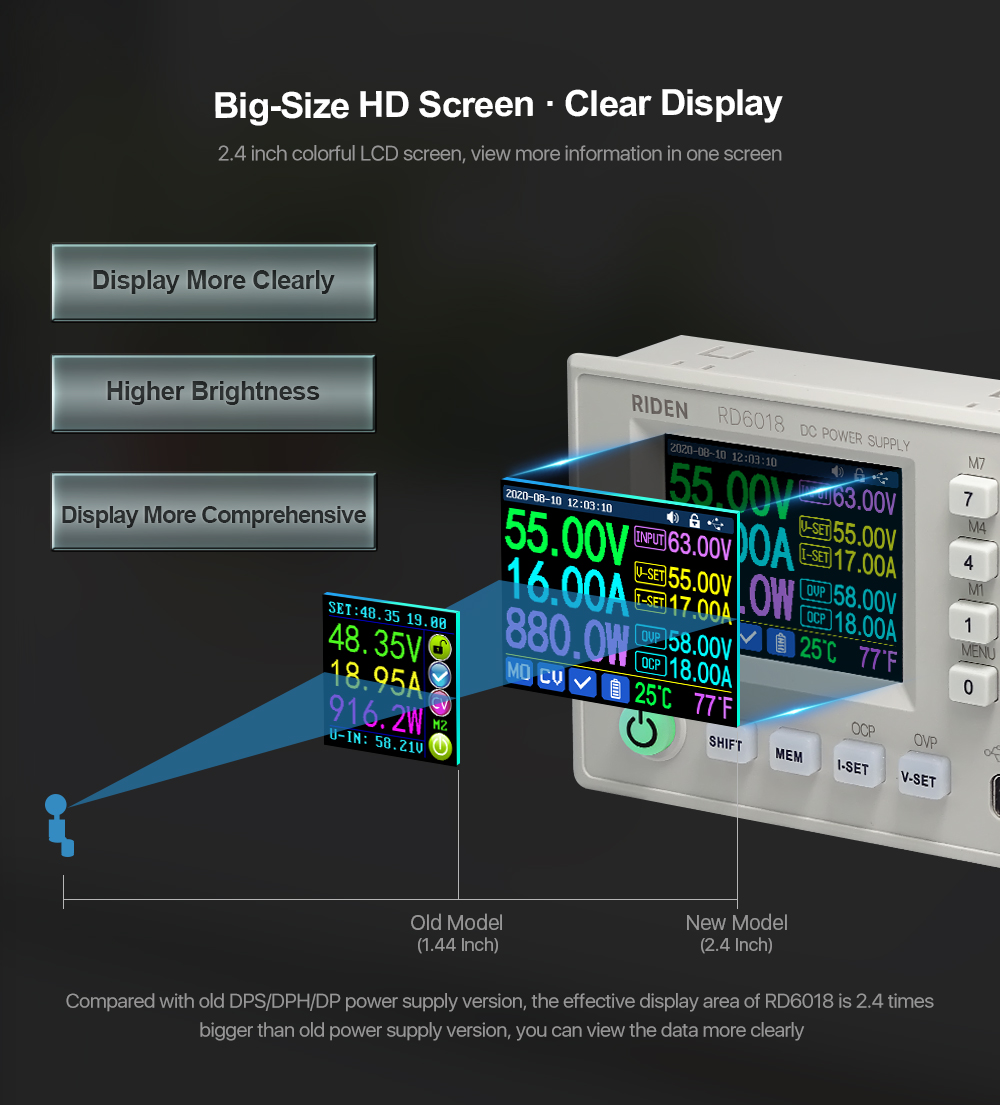

Screen	2.4 inch color HD display
Weight(with package)	About 0.58kg		About 0.61kg		About 0.68kg

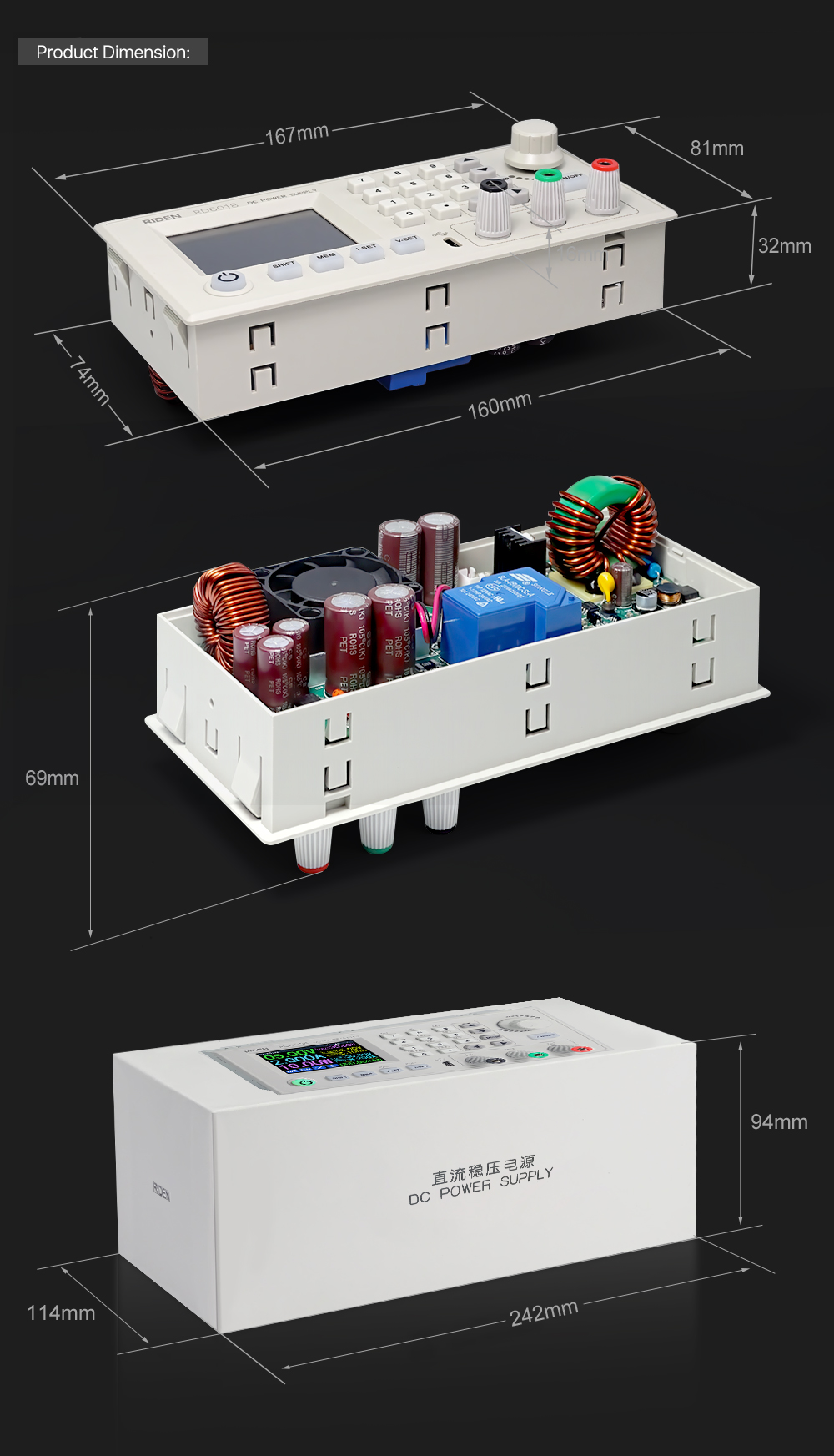

Product dimension	167*81*65mm				167*81*69mm
Support USB communication	YES
Support WiFi communication	No	YES	No	YES	No	YES

Documents:

RD6018(W) operation instructon: Click here to openAPP download:Android system: download at file link (Support android 5.0 -android 10.0): Click here to open or Search RdPower to download , support Android 5.0 and above phone IOS system: Search RdPower to download , support IOS10.0-IOS13.4 SystemAssemble instruction in English: Click here to open

Instruction video for manual:

a. Battery Charging Function Introduction: https://img.elecbee.com/eb/download/video/irTbqfqtgU0.mp4

b. Output Voltage and Output Current Setting: https://img.elecbee.com/eb/download/video/S6Kan66dNsk.mp4

c. Data Group Quick Storage and Call out: https://img.elecbee.com/eb/download/video/eo5saPjOGpo.mp4

d. Keypad lock and unlock: https://img.elecbee.com/eb/download/video/zxpmasJyQ6Y.mp4

e. System Setting: https://img.elecbee.com/eb/download/video/Q9d3rIgIrOc.mp4

f. Main Page Style Setting: https://img.elecbee.com/eb/download/video/f51VDiY2VHE.mp4

g: Storage Data Setting: https://img.elecbee.com/eb/download/video/i1kTeurS13I.mp4

h: System Information: https://img.elecbee.com/eb/download/video/Um4NQObeeJE.mp4

i: IOS APP Download, Installation and Connection: https://img.elecbee.com/eb/download/video/nH2HYwop0TE.mp4

j: IOS APP Operation: https://img.elecbee.com/eb/download/video/lXSw1CM9IY8.mp4

k: Android APP Download, Installation and Connection: https://img.elecbee.com/eb/download/video/QwyBEUCnp9c.mp4

l: Anroid APP Operation: https://img.elecbee.com/eb/download/video/hqrF4keTfbE.mp4

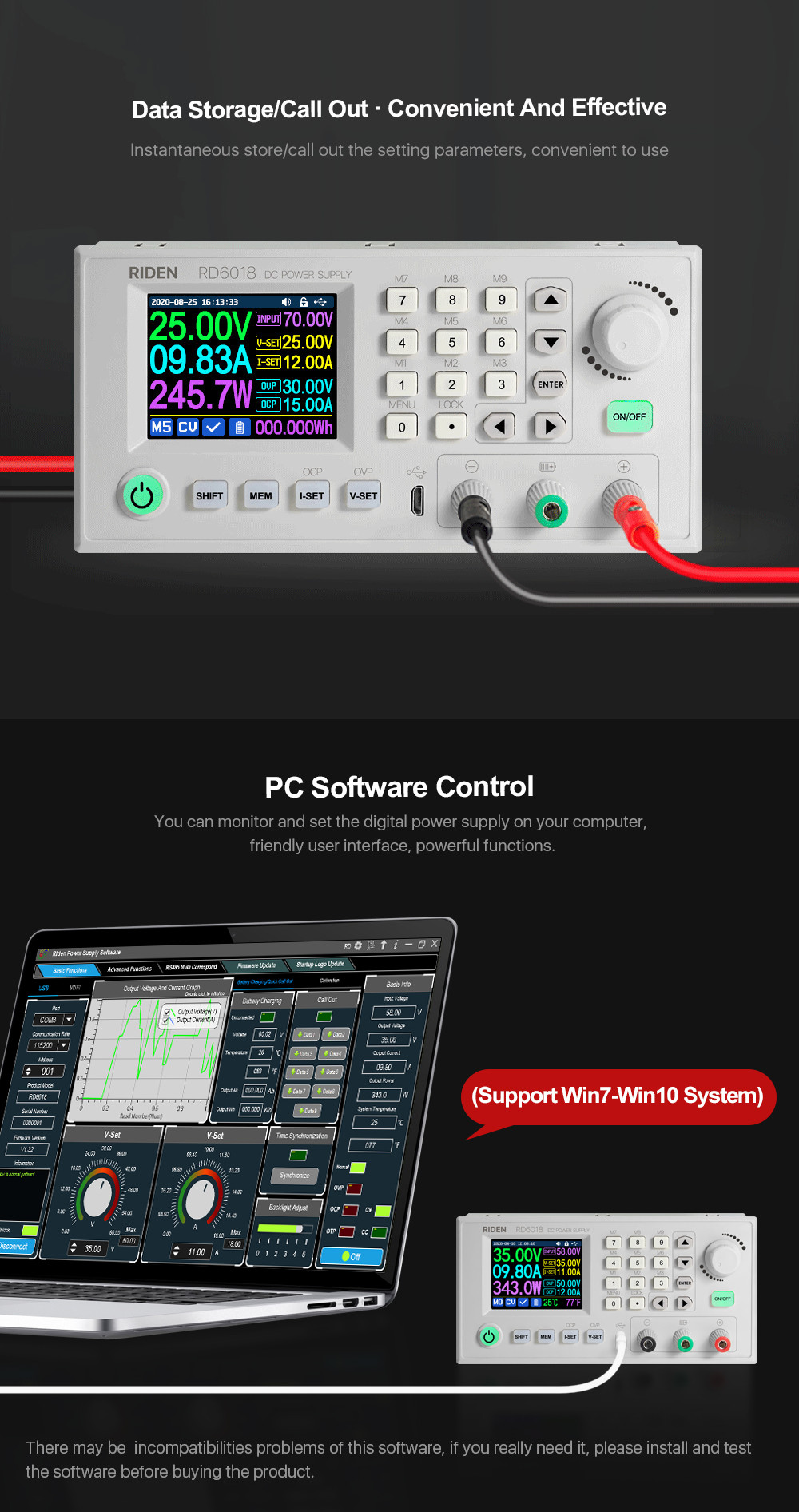

m: PC Software Download and basic operation: https://img.elecbee.com/eb/download/video/mjt1RMaah1Y.mp4

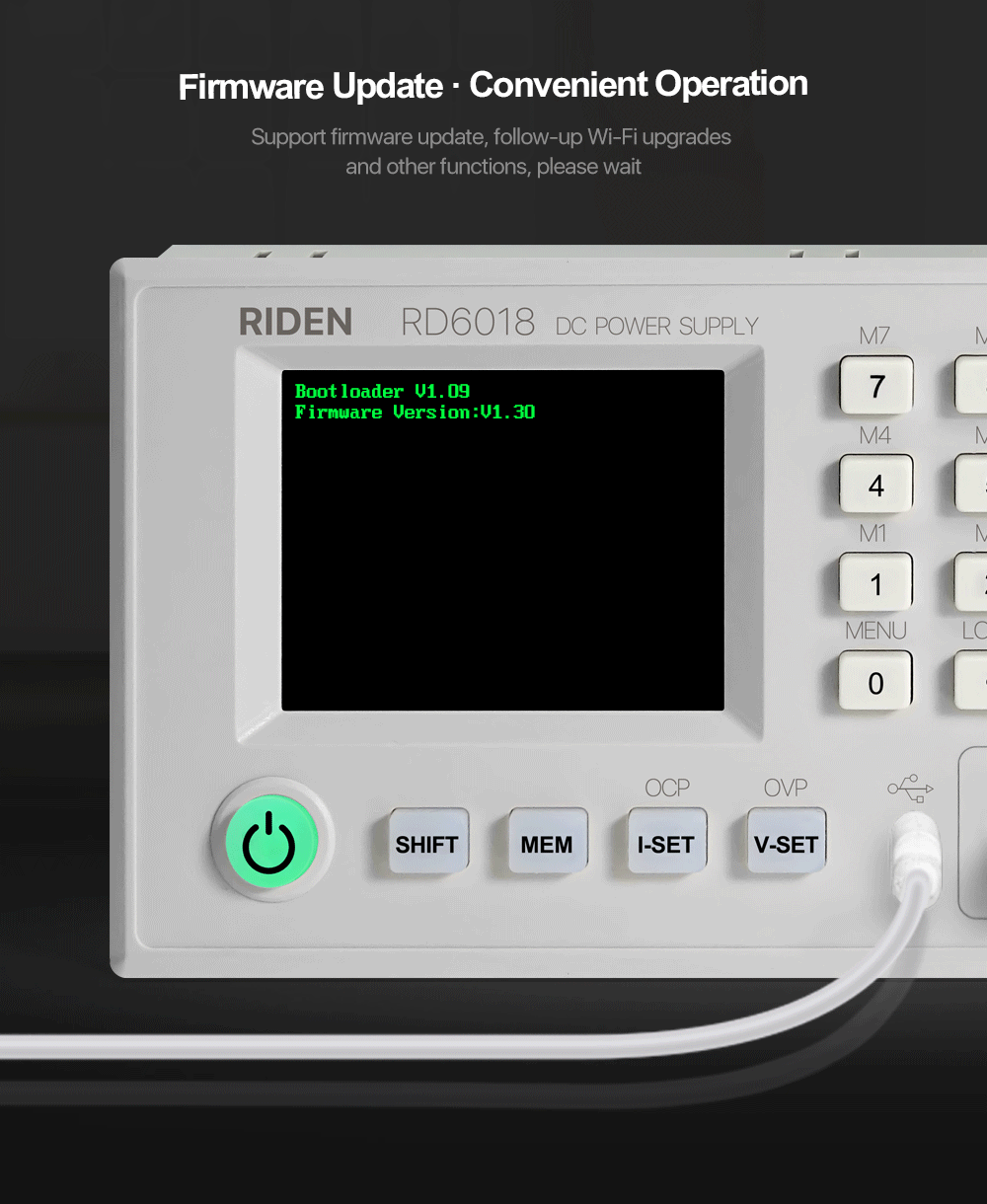

o: Firmware Upgrade: https://img.elecbee.com/eb/download/video/NOoLfDw0DiY.mp4

p: Calibration: https://img.elecbee.com/eb/download/video/c9sn1wY2mjE.mp4

q: Logo Update: https://img.elecbee.com/eb/download/video/vuVhBsohWts.mp4

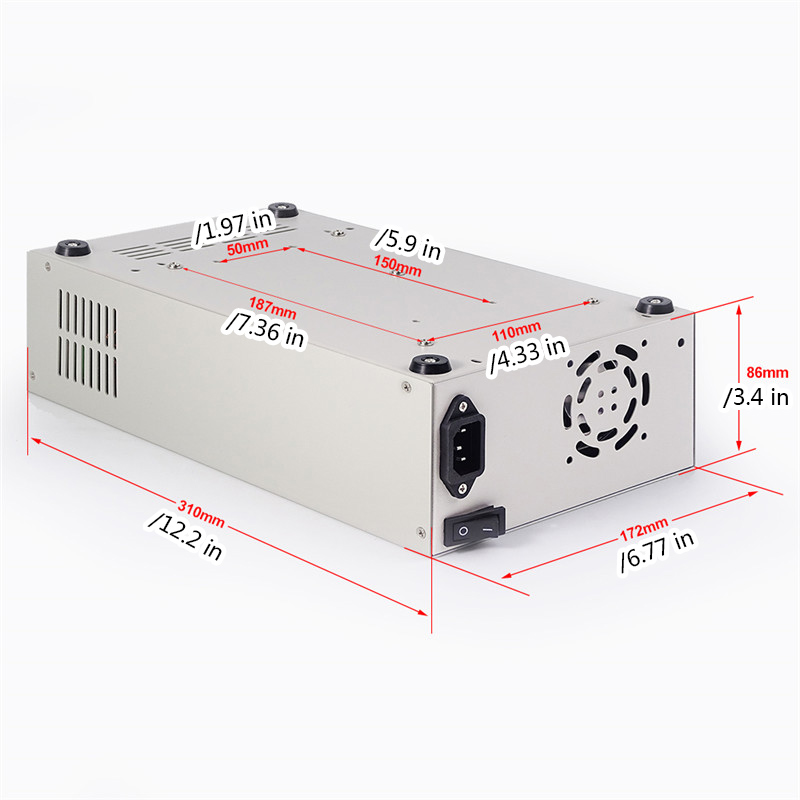

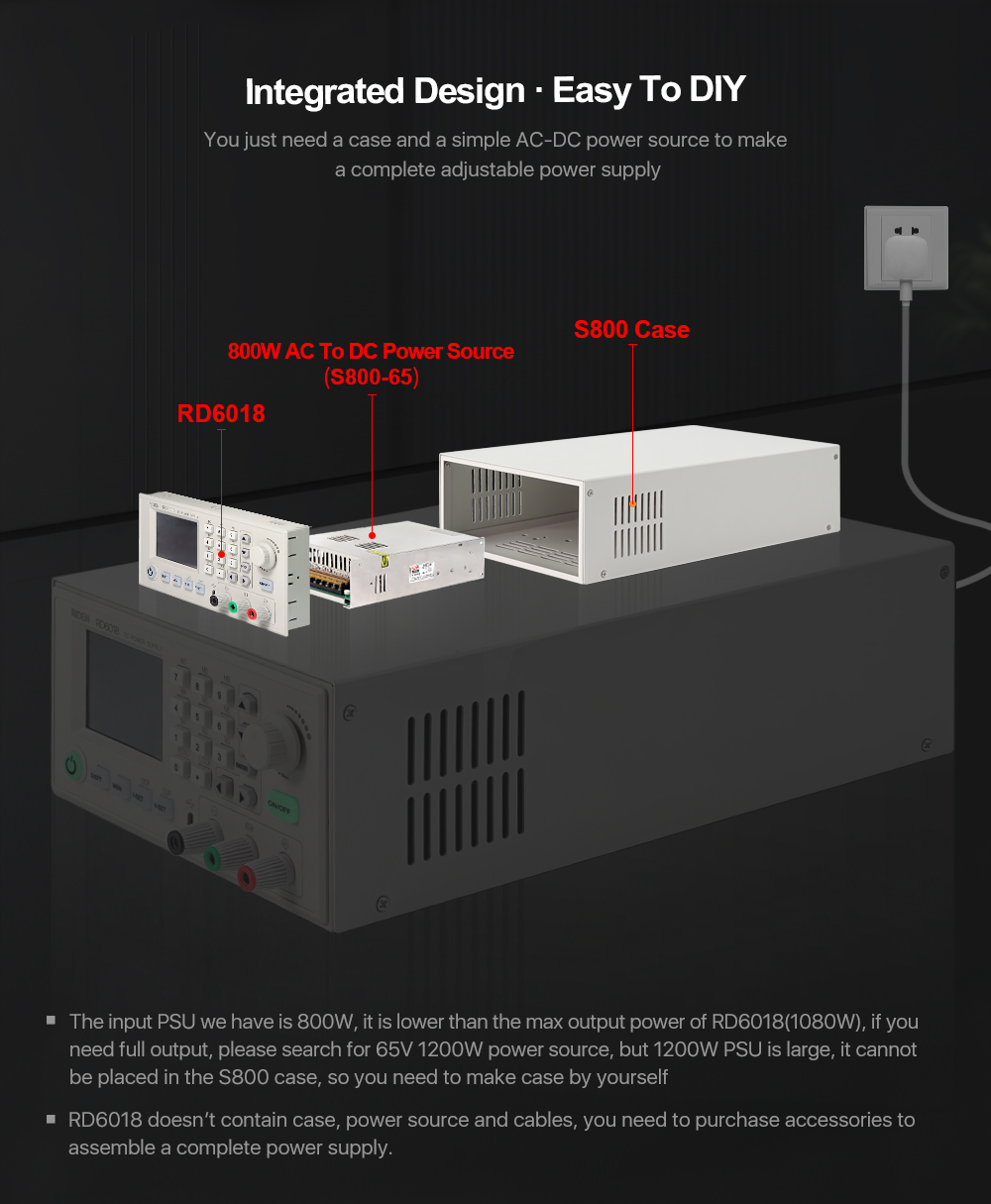

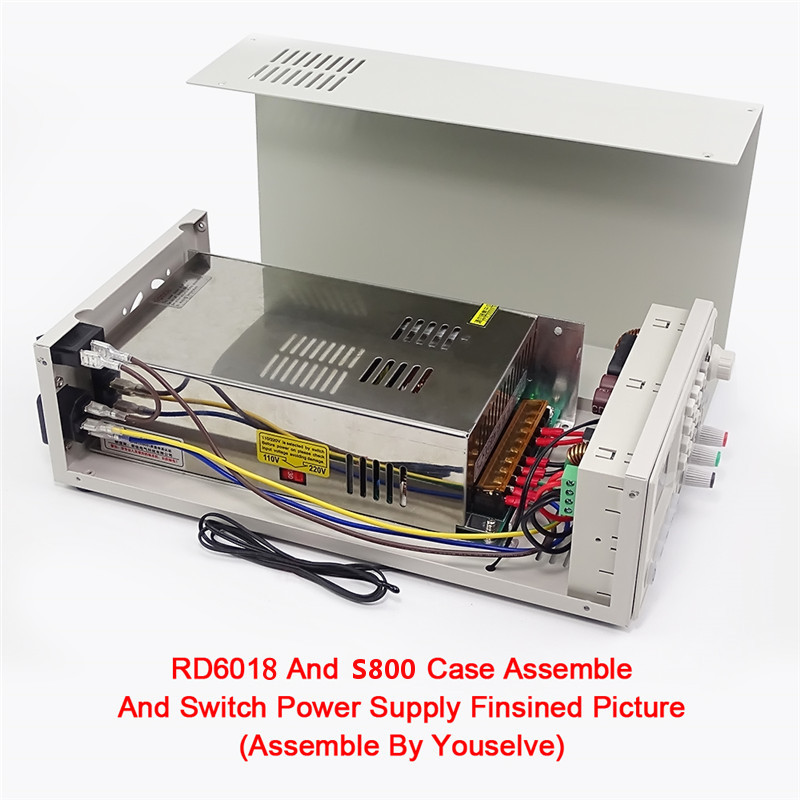

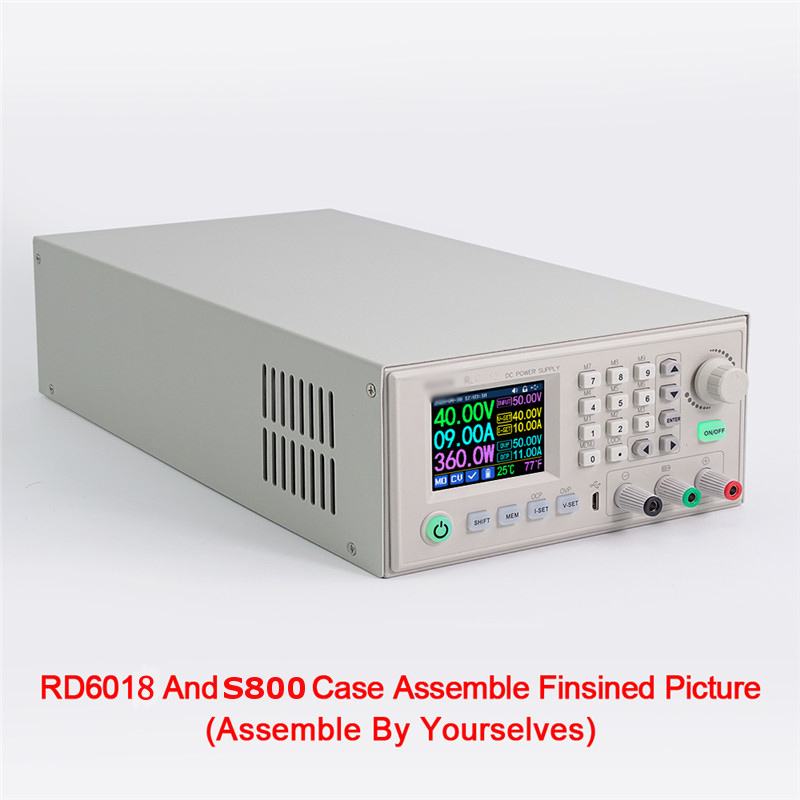

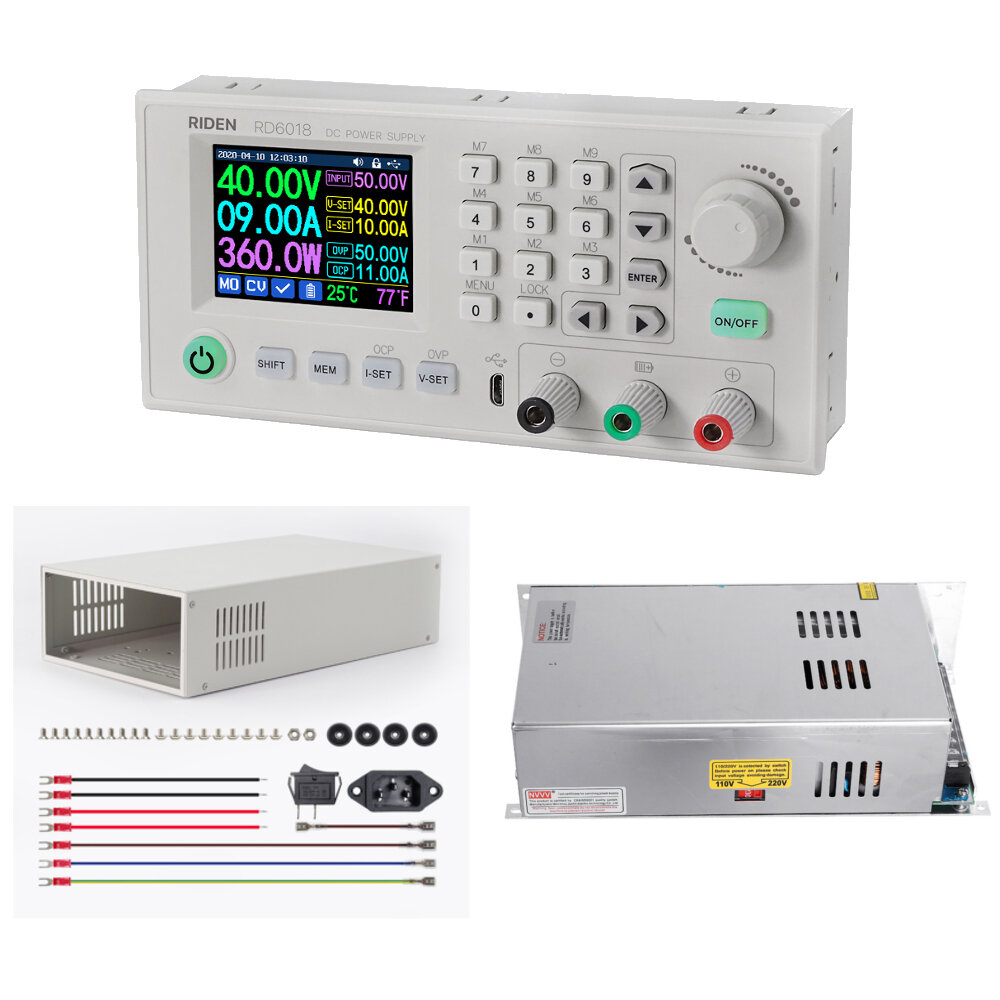

1 x RD6018 power supply without WiFi module1 x S800 Shell1 x S-800-65V power supply

1 x RD6018W power supply with WiFi module1 x S800 Shell1 x S-800-65V power supply
