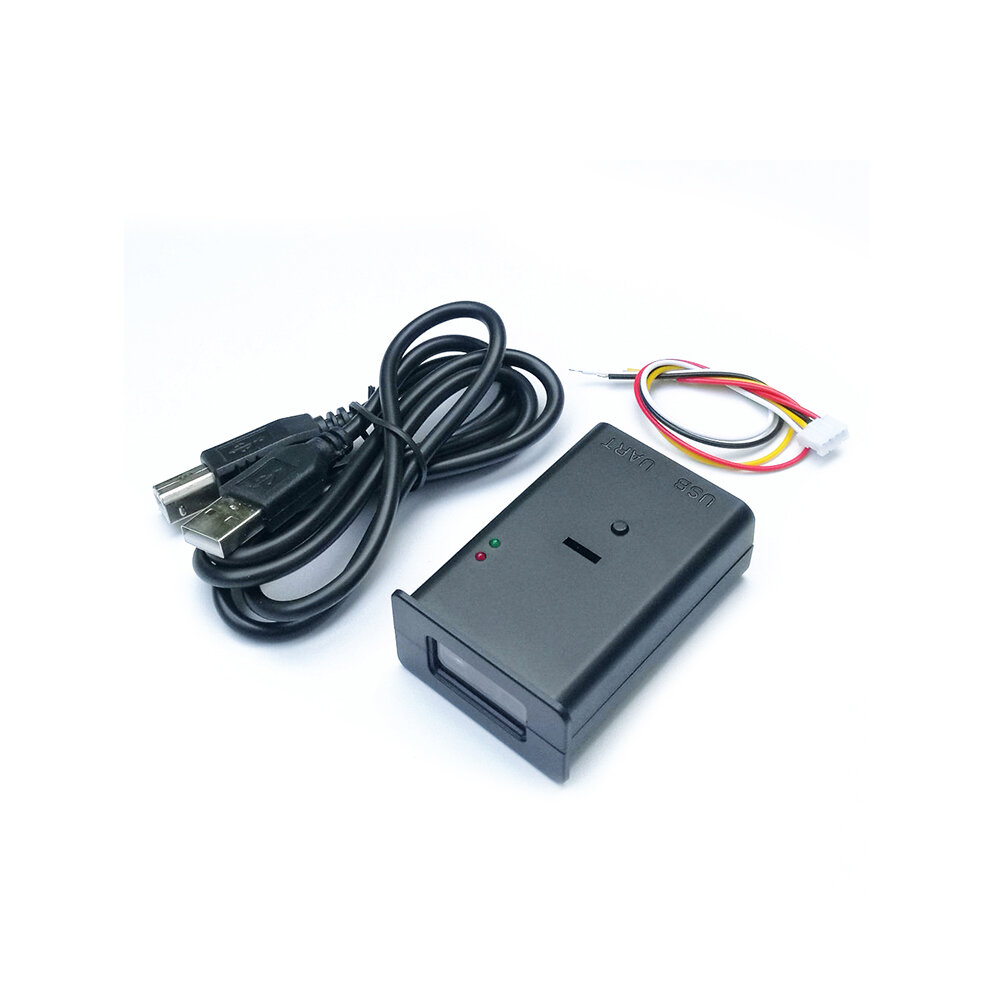

Elecbee GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 5V DC
SKU: EB0046773
Favorites
Key Features
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
xa04. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms
Specifications:
Model | GM66 |
Type | Barcode Scanner |
Decoding Ability | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
Interface | USB2.0 UART |
Resolution | 0.10mm (4mil) |
Operating Voltage | 5V |
Operating Current | 120mA |
Weight | 31g |
Size | 62.3*42.5*24.5mm |
Type of Illuminant | 617nm LED(Aimer), 6500K LEDs(Illumination) |
LED Indicator | Buzzer and bi-color light: Red-power, Blue-decoding Successfully |
Scan Angle | Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater |
Scanning angle Inclination angle | 34°, Elevation angle 26° |
Print Contrast | 30% minimum reflective difference |
Reading Distance xa0 | 25 - 250mm |
Operating Temperature | -20 degrees to 55 degrees |
Storage Temperature | -40 degrees to 65 degrees |
Temperature Humidity | 5% to 95% Relative humidity, Non-condensing |
Light Levels | 0-85000LUX |
Show More
Datasheet
Description
1 x GM66 1D 2D Code Scanner Bar Code Reader
1 x Connect Cable
1 x USB Cable
| Model | GM61 | GM63D | GM73 | GM65-S | GM65 | GM66 | GM67 | GM68 | GM72 |
| Interface | UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART |
| Resolution | 8 mil | 6 mil | 6 mil | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 5 mil | 6 mil | 6 mil |
| Operating Voltage | 3.3V | 5V | 5V | 3V | 5V | 5V | 5V | 3.3V | 5V |
| Operating Current | 58mA | 90mA | 90mA | 120mA | 120mA | 120mA | 180mA | 100mA | 100mA |
| Weight | 3g | 15g | 15g | 7g | 13g | 31g | 13g | 6g | 27g |
| Size | diameter 21mm | 51*28.5*1.6mm | diameter 46mm | 21.4*13.5*11.8mm | 46.8*27.5mm | 62.3*42.5*24.5mm | 46.5*27.5*14mm | 30*24*7mm | 65*61*28mm |
| Decoding Ability | QR Code,Code 128,EAN 128,Code 39,Code 93,Code 11,UPC,EAN,Codebar,Interleaved 2of 5,Matrix 2of 5,MSI Code,Industrial 2of 5,GS1 Databar | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect | 1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code etc 2D:PDF417,QR Code ,Data Matrix , Maxicode, Aztec etc | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec |
