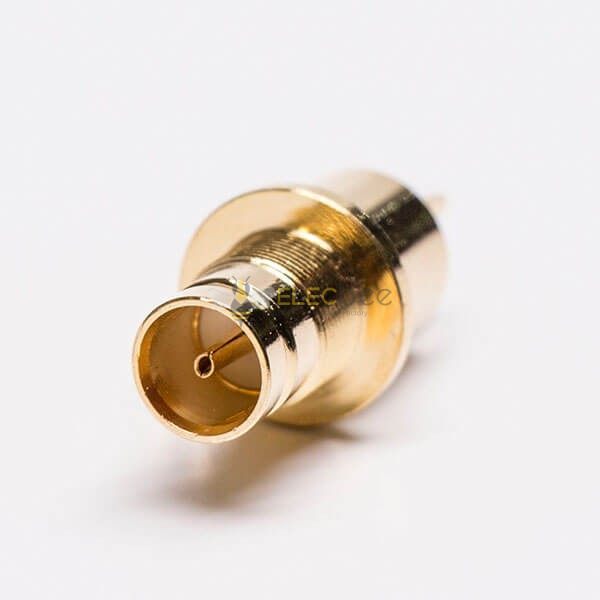

Elecbee Gold plated 1.6/5.6 connector Jack for PCB mount Type

SKU: EB-011-0004
Favorites
Key Features
  • Cable Connector, plug/male, Angled/90°,,DIN1.6/5.6, Crimp Type;
  • Miniature design only requried limited space for installation;
  • Threaded coupling version ensure safty and high durability;
  • Good performance at 75Ω impendance and up to 1GHz frequency.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of DIN1.6/5.6 Connectors:

  • Antenna, Base Stations, Routers, Wireless application, Switching Equipment, Computers/LAN and Telecom
Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
DIN 1.6/5.6
Color
Gold
Fastening Type
Push-Pull
Orientation
Straight
Shell Material
Copper Alloy
