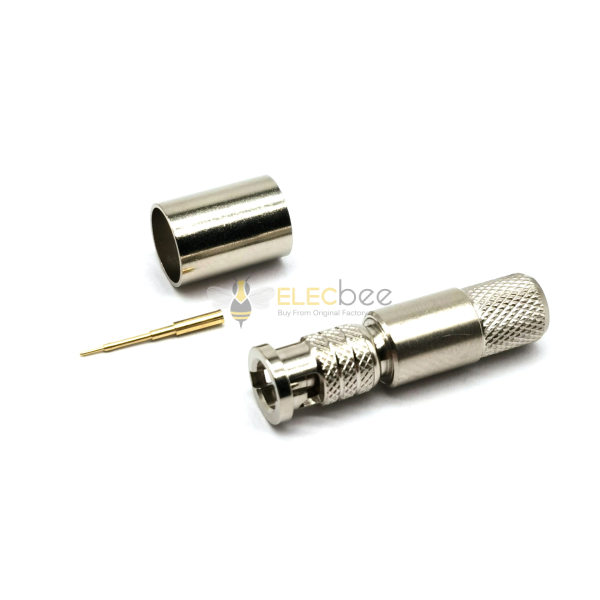

Elecbee HD Micro BNC Straight Plug Straight Male Connector Crimp for Cable Belden 1505A 75Ω

SKU: EB-001-0625-C
Favorites
Key Features
  • HD Micro BNC, Crimp type, Plug/Male, Straight/180°, 75Ω;
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.


Show More
Attribute
Value
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Nickel Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
