Elecbee High Gain 4G LTE Signal Booster Kit | 850MHz | 55/60dBi | Covers 200 sq.m.

SKU: EB-201-2381

Favorites

Key Features

Feature:

Powerful Signal Enhancement: This 4G LTE signal booster kit delivers an impressive uplink gain of 55dBi and downlink gain of 60dBi, significantly amplifying cellular coverage in areas with weak signals.
Broad Frequency Support: Optimized for the 850MHz frequency band, this booster is compatible with a wide range of 4G LTE networks, ensuring reliable performance.
Extensive Coverage: With the ability to cover up to 200 square meters, this signal booster kit is suitable for both residential and small commercial spaces. The included indoor and outdoor antennas work in tandem to provide comprehensive coverage.
Easy Installation: The plug-and-play design makes setup a breeze. Simply mount the outdoor antenna, connect the cables, and plug in the power adapter to complete the installation.
Regulatory Compliance: This signal booster kit is compliant with GB6993-86 and ETS300 609-4 standards, ensuring safety and performance in accordance with industry regulations.

Description

Specifications:

Voltage: 110-220V AC or DC5V 1A
Frequency: 850mhZ
Gain: Uplink: 55dBi Donwlink: 60dbi
Power: -70 ~ -40dBm/FA (1.23MHz)
Output power: Uplink: 17dbm Donwlink: 17dbm
Seclusion: >65db
Ambient temperature: -10C-50C
Configuration: 5V/ 1A prower
Plug: US plug
Impedance: 50 ohms

Installation method:

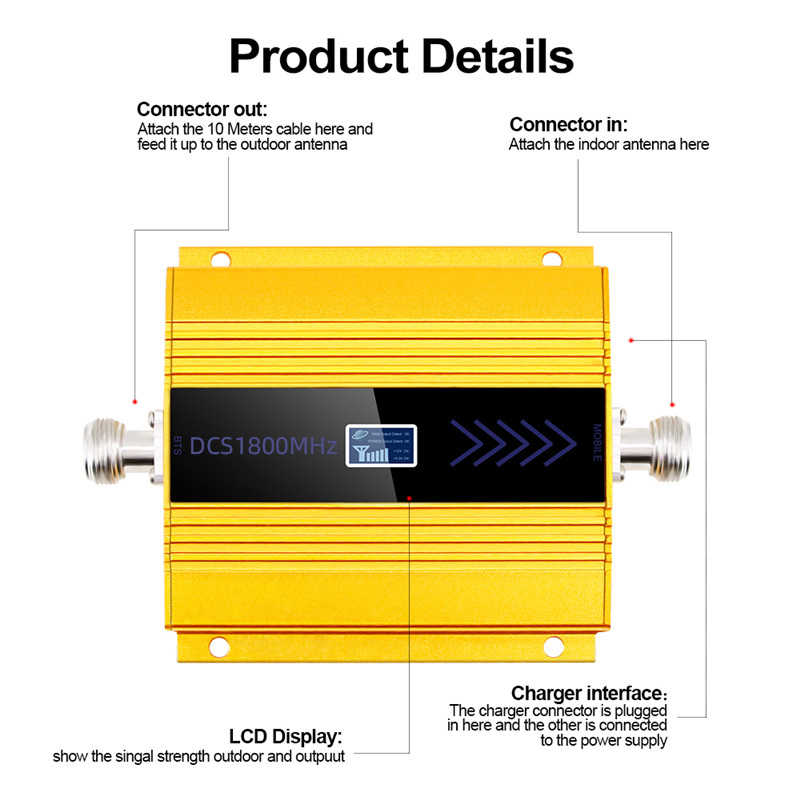

Fix the outdoor antenna reception on the roof or outside the window, point it to the signal tower.
Connect the outdoor antenna to the BTS port in the repeater via a cable.
Also connect the indoor antenna to the mobile port in the repeater via a cable.
Plug the power adapter into the AC power outlet to complete the installation.

Notes:

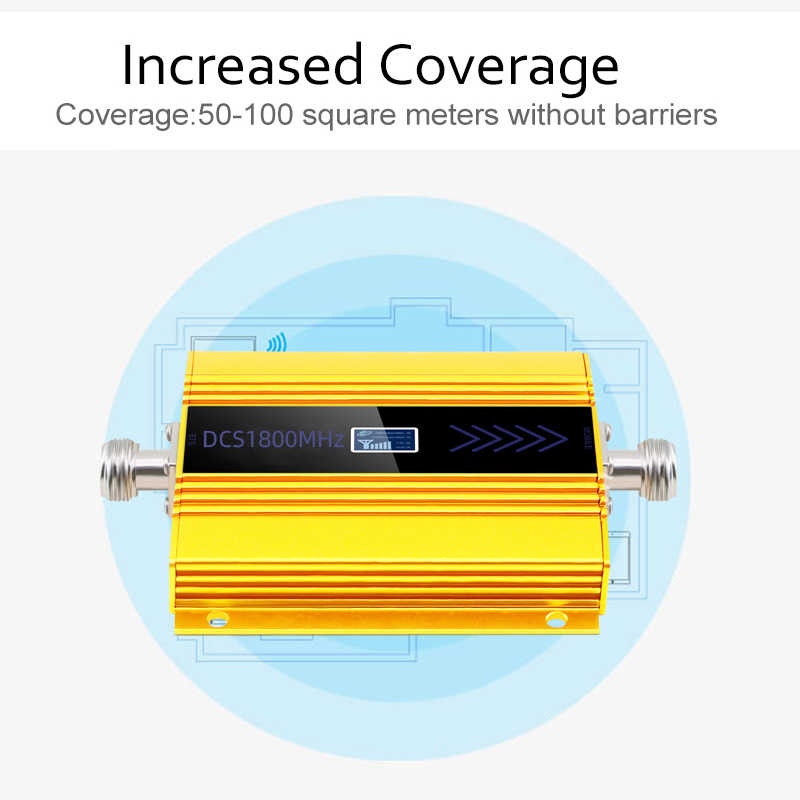

1. Supports a maximum coverage area of 200 square meters. (Depending on regional conditions)

2. One indoor antenna is only used in an open space of about 30-100 square meters. (The quality of indoor and outdoor antennas depends on the indoor signal coverage area.)

3. If you want to use the 200 square meters supported by the host, you need to add more indoor antennas and power dividers/splitters.

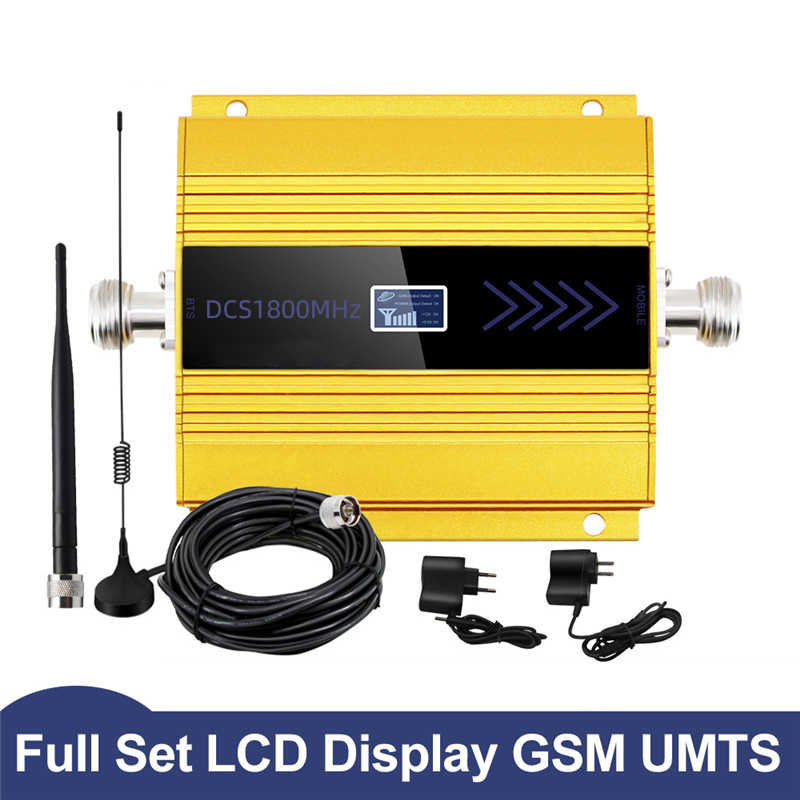

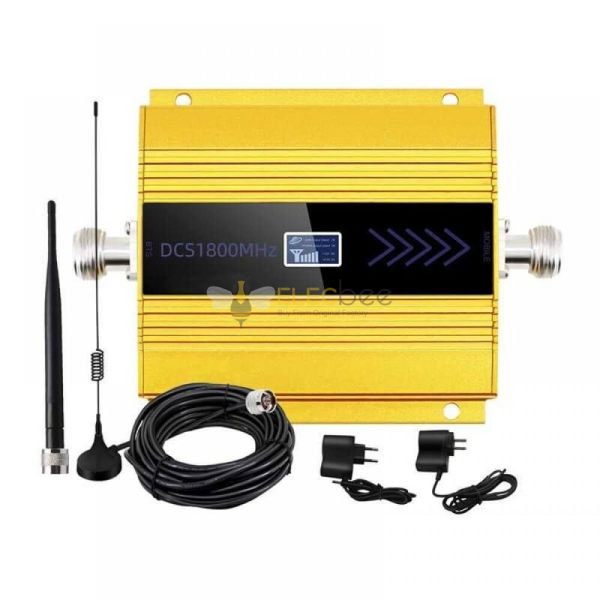

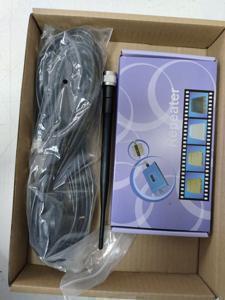

Package included:

1 x 1800MHz signal booster.

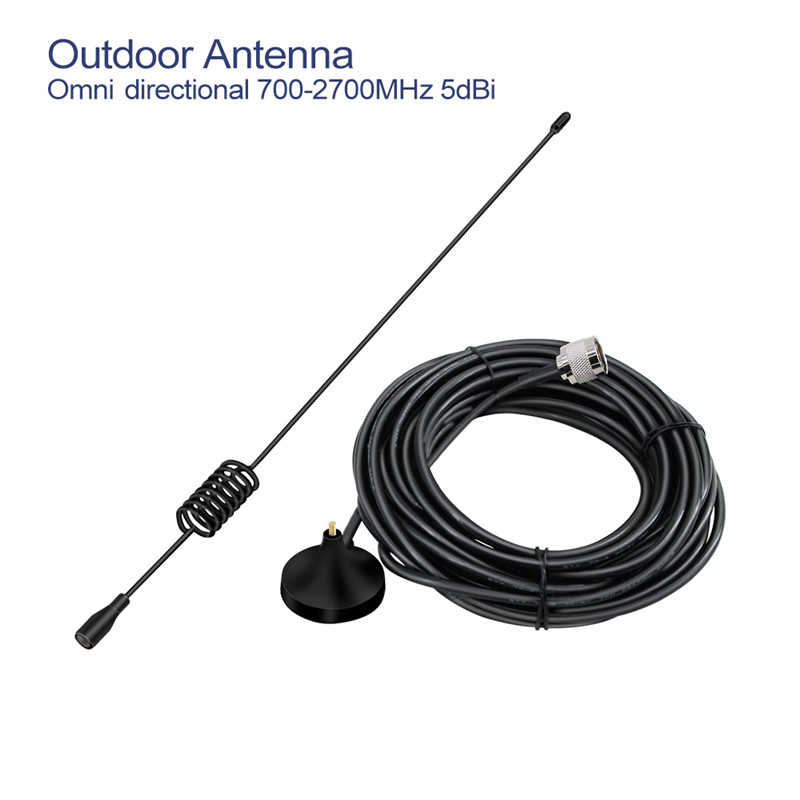

1 x 5dBi Sucker Antenna

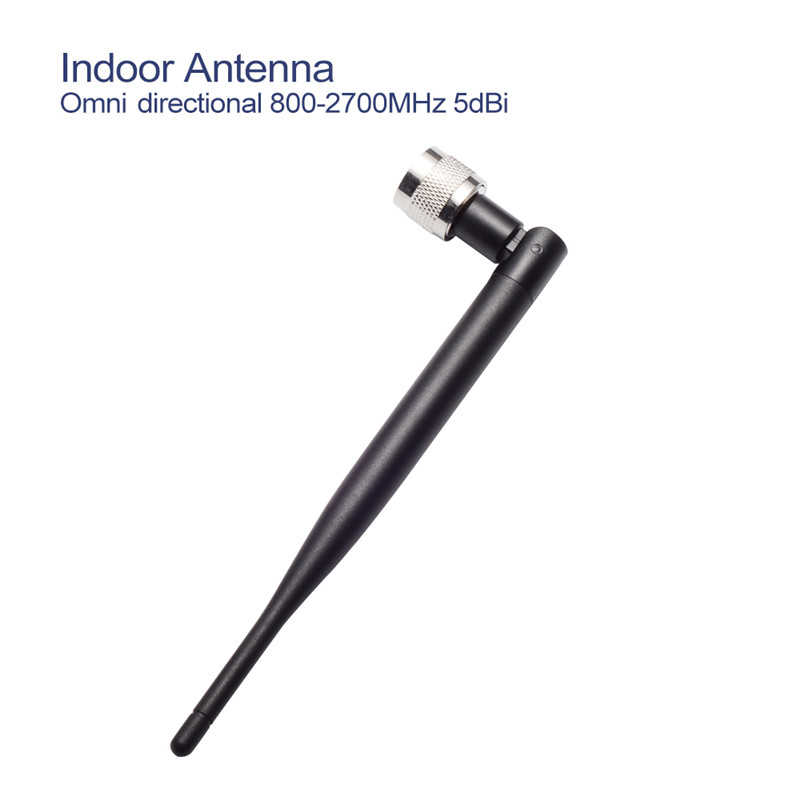

1 x Omni Rubber Antenna

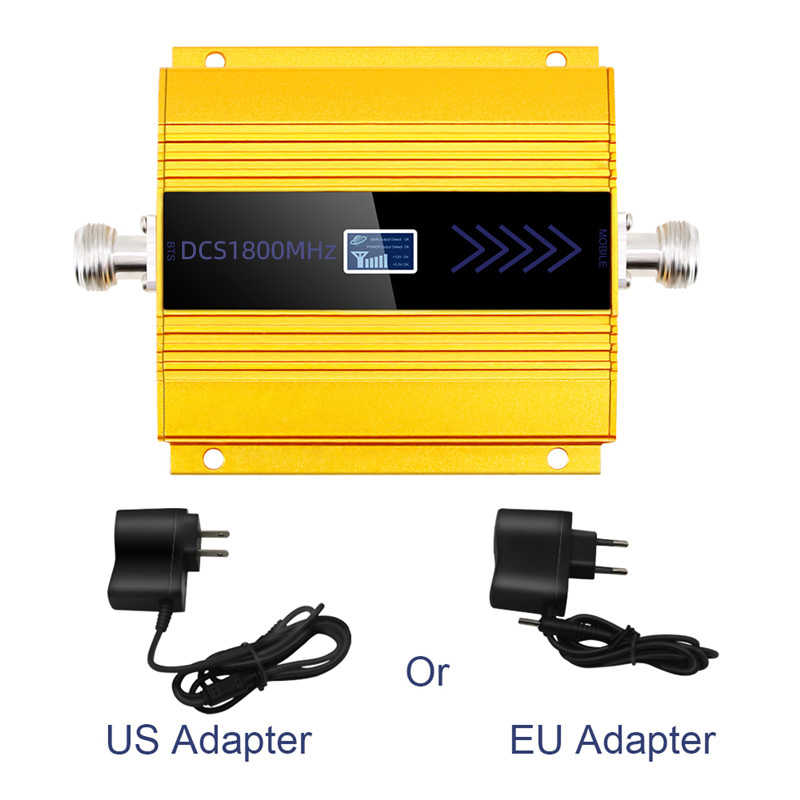

1 x Power adapter
1 x English User Manual
