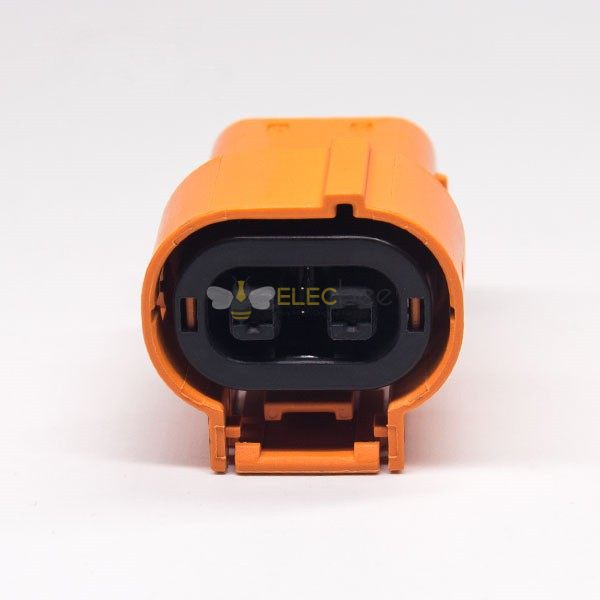

Elecbee HVIL 2pin Straight Plastic Plug 16A 2.5mm² IP67 HVIL Series Connector

SKU: HVIL16-2P-AO-C02
Favorites
Key Features
  • Excellent Electrical Insulation.
  • Various Wire Diameter Application.
  • Multi Misplug-proof and Key Position Design.
  • Secondary Buckle.
  • Sealing, IP67,Touch-Proof.
  • Multiple Coding Positions.
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Clamp
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+125℃
Shielding
Shielded
Ingress Protection
IP67 / IP6K9K(mated)
Rated Current
16A
Rated Voltage
800V, 1000V, 1500V
Color
Orange
Orientation
Straight
Shell Material
PA66
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Cable Diameter
2.5mm²
