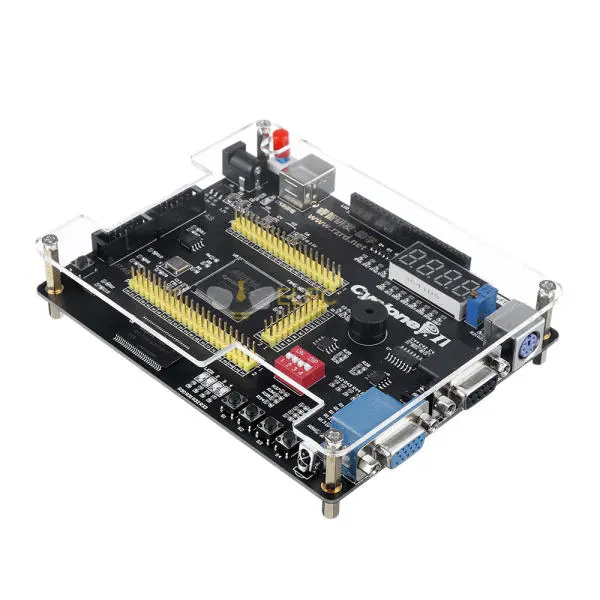

Elecbee IV EP4CE6 FPGA Development Board Kit EP4CE NIOSII FPGA Board and USB Downloader Infrared Controller

SKU: EB0041463
Favorites
Key Features
Product Features:

1. the main chip of ALTERA company's new FPGA Cyclone IV series EP4CE6E22C8N
2. Onboard high-capacity EPCS16N serial configuration chip, supports JTAG/AS two download mode
3. Onboard 64Mbit SDRAM, support SOPC, NIOSII development
4. Onboard 50MHz active crystal, the master clock system stability
5. Using 1117-3.3V voltage regulator chip, to provide 3.3V voltage output
6. Using 1117-1.2V voltage regulator chip to provide FPGA core voltage
7. Using 1117-2.5V voltage regulator chip, to provide PLL voltage output
8. Using a large number of decoupling capacitors, decoupling design
9. 5V DC power supply socket and USB interface power supply socket, two kinds of power supply mode
10. 1 reset button, can also be used as a user input button
11. 1 self locking button power switch
12. 1 LED power indicator light
13. Out of all IO interface, universal 2.54mm spacing, can be easily extended
14. JTAG download interface to download the file is .SOF, the speed is fast, the usual use of this interface is recommended
15. AS download interface to download the file is .POF, the speed is slow, need to use this interface when the curing process
Show More
Attribute
Value
MCU/SoC Model
EP4CE6 FPGA
CPU Architecture
AT24C
Debug Interface
USB/I2C/CAN
Power Protection
3.3V
Thermal Solution
JTAG
Description
Performance configuration::

Main chip: ALTERA, 4th generation FPGA CycloneIV series EP4CE6E22C8N
Storage configuration: Onboard M25P16 large capacity storage chip (16Mbit), supports TAG/AS mode
                                     Onboard 64MbitSDRAM, supports SOPC, NIOSII development
Download mode: JTAG download port, download sof file, fast download speed, can also be solidified
                            AS download port, download pof file, solidify program, power off without loss
Voltage regulator chip: 1117-3.3V voltage regulator chip, 3.3V voltage output
                                      1117-1.2V voltage regulator chip, FPGA core voltage
                                      1117-2.5V voltage regulator chip, PLL voltage


Peripheral Interface:

1. 4 independent keys
2. 4 LED diodes,
3. 4 digital tube
4. 4 dial switch
5. 1 buzzer
6. PS2 interface
7. RS232 serial port
8. 1*20 pin LCD socket, support LCD1602, LCD12864, TFT LCD
9. Temperature sensor chip LM754A, for thermometer experiment
10. Precision adjustable resistance, adjustable LCD backlight
11. VGA interface, for display experiment
12. I2C serial EEPROMAT24C08, for IIC bus experiment
13. Infrared receiving module



Package includes:

1 x Mainboard
1 x USB Downloader
1 x Remote Controller
1 x USB Cable
